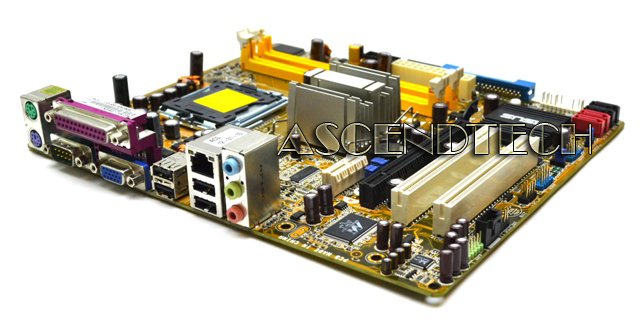

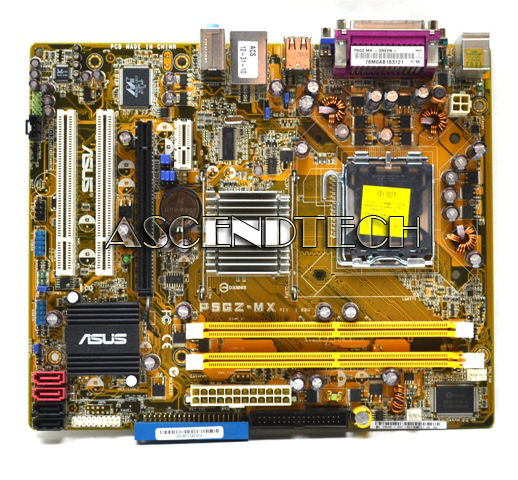

Asus P5GZ-MX LGA775 DDR2 Motherboard

Asus P5GZ-MX LGA775 945GZ DDR2 Motherboard. P5GZ-MX with Intel 945GZ chipset inside supports Intel dual-core CPU and features 800MHz FSB (Due to chipset limitation, Intel® Core™ 2 processors can only run at a maximum speed of 800 MHZ FSB on this motherboard), PCI Express architecture, Serial ATA interface, high performance integrated graphics engine, dual-channel DDR2 memory, and HD Audio CODEC. It especially supports Intel EM64T and EIST technology, which provides you a 64-bit environment and an energy saving solution. P5GZ-MX is the most affordable all in one solution for Intel® Core™2 Processor with Intel 945GZ chipset inside. This motherboard supports the latest Intel® Core™2 processors in LGA775 package. With new Intel® Core™ microarchitecture technology and 800MHz*, Intel® Core™2 processor is one of the most powerful and energy efficient CPU in the world.



Specifications:

CPU
Intel Socket 775 Core™2 Duo/Pentium® D/Pentium® 4/Celeron Processors
Compatible with Intel® 05B/05A/06 processors
Intel® Hyper-Threading Technology ready

Chipset
Intel 945GZ
ICH7

Front Side Bus
800/533/ MHz

Memory
2 x DIMM, Max. 2 GB, DDR2 533/400/ Non-ECC,Un-buffered Memory
Dual Channel memory architecture

VGA
Discrete Intel Graphics Media Accelerator 950
Supports RGB with max. resolution 2048 x 1536 @75Hz
Max. Vertical Refresh Rate 1920x1440 @85Hz

Expansion Slots
1 x PCIe x16 @ x4 speed
1 x PCIe x1
2 x PCI 2.2

Storage
Southbridge
1 xUltraDMA 100/66/33
4 xSATA 3 Gb/s ports

LAN
Marvell 88E8001 PCI Gigabit/ LAN controller support AI NET2

Audio
Realtek ALC883, 6 -Channel High-Definition Audio CODEC

USB Ports
8 USB 2.0 ports (4 ports at mid-board, 4 ports at back panel)

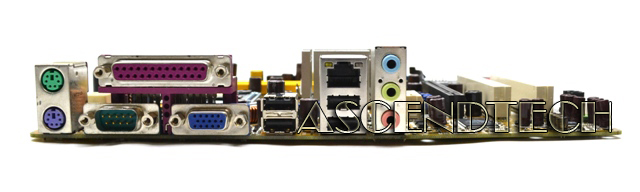

Back Panel I/O Ports
1 x Parallel
1 x VGA
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x Serial port
1 x LAN(RJ45) port
4 x USB 2.0/1.1
6 -Channel Audio I/O

Internal I/O Connectors
2 x USB connectors support additional 4 USB ports
1 x Floppy disk drive connector
1 x IDE connector
4 x SATA connectors
1 x CPU Fan connector
1 x Chassis Fan connector
1 x S/PDIF Out connector
1 x4-pin ATX 12V Power connector
24 -pin ATX Power connector
Front panel audio connector
Chassis Intrusion connector
CD/AUX audio in
System Panel Connector

BIOS
4 Mb Flash ROM
DMI 2.0
AMI BIOS
PnP
WfM 2.0
SM BIOS 2.3

Form Factor
uATX Form Factor
9.6inchx8.inch ( 24.5cm x20.3cm )
