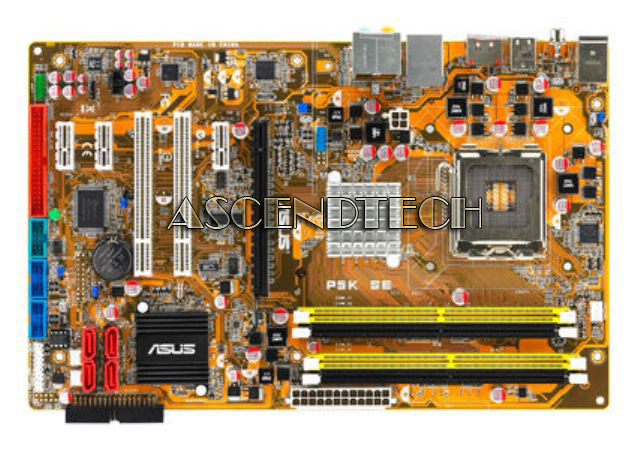

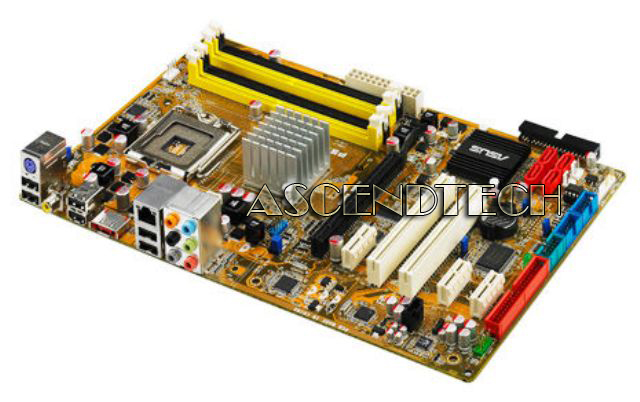

Asus P5K SE LGA775 Motherboard No I/O

Asus P5K SE LGA775 P35 DDR2 Motherboard. This motherboard supports the latest Intel 45nm CPU which introduces new micro-architecture features for greater performance at a given frequency, up to 50% larger L2 caches, and expanded power management capabilities for new levels of energy efficiency. This motherboard supports the latest Intel® Core™2 processors in LGA775 package. It also can support Intel® next generation 45nm Multi-Core CPU. With new Intel® Core™ microarchitecture technology and 1333 / 1066 / 800 MHz FSB, Intel® Core™2 processor is one of the most powerful and energy efficient CPU in the world.



* Please Note: This is an OEM motherboard and it does not come with rear I/O shield also known as back-plate cover. This part is not needed and you can still install the board in standard ATX case.

Specifications:

CPU
Intel Socket 775 Core™2 Quad/Core™2 Extreme/Core™2 Duo/Pentium® Extreme/Pentium® D/Pentium® 4 Processors
Compatible with Intel® 05B/05A/06 processors
Support Intel® 45nm CPU

Chipset
Intel P35
Intel ICH9
Intel Fast Memory Access Technology

Front Side Bus
1600/1333/1066/800 MHz

Memory
4 x DIMM, Max. 8 GB, DDR 1066*/800/667 Non-ECC,Un-buffered Memory
Dual Channel memory architecture

Expansion Slots
1 x PCIe x16
3 x PCIe x1
2 x PCI

Storage
Southbridge
4 x SATA 3 Gb/s ports
Marvell 88SE6111
1 x UltraDMA 133/100/66 for up to 2 PATA devices
1 x External SATA Gb/s port (SATA On the Go)

LAN
PCIe Gigabit LAN controller featuring AI NET 2

Audio
Realtek ALC 883 8 -Channel High Definition Audio CODEC
Coaxial / Optical S/PDIF out ports at back I/O
ASUS Noise Filter
Support Jack-Sensing, Enumeration, Multi-streaming

USB Ports
12 USB 2.0 ports (6 ports at mid-board, 6ports at back panel)

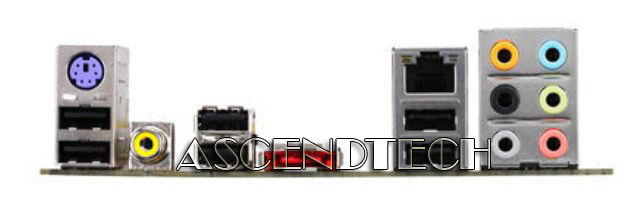

Back Panel I/O Ports
1 x PS/2 Keyboard
1 x External SATA
1 x S/PDIF Out
1 x LAN(RJ45) port
6 x USB 2.0/1.1
8 -Channel Audio I/O

Internal I/O Connectors
3 x USB connectors support additional 6 USB ports
1 x Floppy disk drive connector
1 x IDE connector
4 x SATA connectors
1 x CPU Fan connector
1 x Chassis Fan connector
1 x Power Fan connector
1 x S/PDIF Out connector
1 x4-pin ATX 12V Power connector
24-pin Power connector
Front panel audio connector
COM connector
CD/AUX audio in
System Panel

BIOS
8 Mb Flash ROM
DMI 2.0
AMI BIOS
PnP
WfM 2.0
SM BIOS 2.3
ACPI 2.0a
ASUS EZ Flash 2
ASUS CrashFree BIOS 3

Form Factor
ATX Form Factor
12 inch x 7.6 inch ( 30.5 cm x 19.3 cm )
