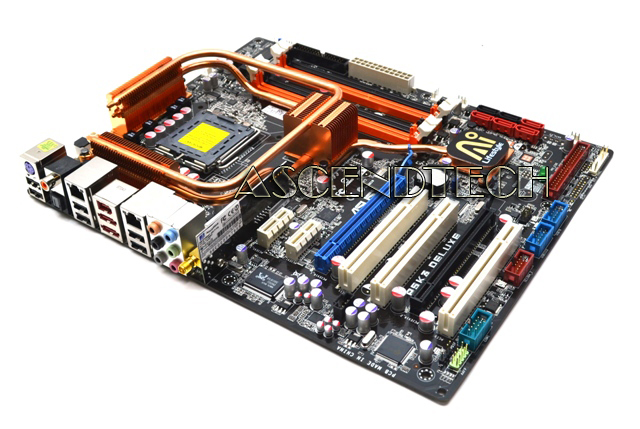

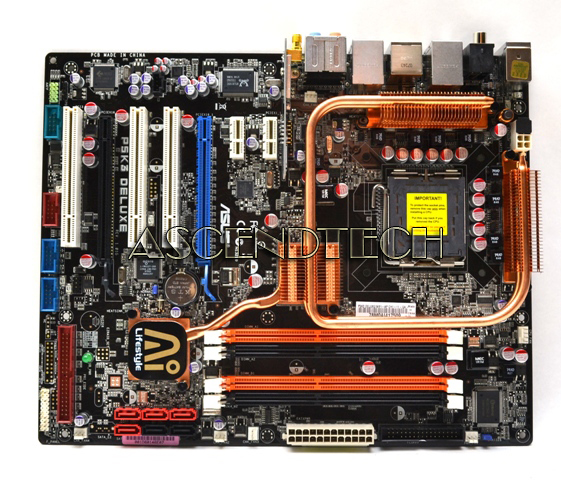

Asus P5K3 Deluxe LGA775 DDR3 Motherboard

Asus P5K3 Deluxe LGA775 P35 DDR3 Motherboard. This motherboard supports the latest Intel 45nm CPU which introduces new micro-architecture features for greater performance at a given frequency, up to 50% larger L2 caches, and expanded power management capabilities for new levels of energy efficiency. The Deluxe version of the motherboard has built-in native DDR3 1333 support and is able to overclock with an ultra high frequency to achieve DDR3 1840. These ASUS motherboards still provide you with quiet thermal solutions - which contain the 8 phase power design, Stack Cool 2 and the Heat Pipe Design functions. They also come with the newest AI Gear 2 to save up to 50% of CPU power usage. Complementing all these features are Asus's innovative tools - AI Slot Detector; allowing the user to conveniently install the computer. The P5K3 series decreases temperature, provides stable overclocking, lowers noise levels and saves the most electricity.






Specifications:

CPU
Intel® Socket 775 Core™2 Quad/Core™2 Extreme/Core™2 Duo/Pentium® Extreme/Pentium® D/Pentium® 4 Compatible with Intel® 05B/05A/06 processors
Support Intel® 45nm CPU

Chipset
Intel® P35 Intel ICH9R
Intel Fast Memory Access Technology

Front Side Bus
1600/1333/1066/800 MHz

Memory
4 x DIMM, Max. 8 GB, DDR3 1333*/1066/800 Non-ECC,Un-buffered Memory
Dual Channel memory architecture

Expansion Slots
2 x PCIe x16 (blue @ x16 mode, black @ x4 or x1 mode) supports
2 x PCIe x1
3 x PCI

Storage
Southbridge
6 xSATA 3 Gb/s ports
Support RAID 0,1,5,10,JBOD
JMicron® JMB363 PATA and SATA controller
1 xUltraDMA 133/100/66 for up to 2 PATA devices
2 xExternal SATA Gb/s port (SATA On-the-Go)
Support RAID 0,1

LAN
Dual Gigabit LAN controllers, featuring AI NET2Marvell88E8056® PCI-E Gigabit LAN controllers
RealtekRTL8110SC® PCI Gigabit LAN controller
ASUS WiFi-AP Solo
54 Mbps IEEE 802.11g and backwards compatible with 11 Mbps IEEE 802.11b
Software Access Point mode
Station mode: Infrastruceure mode and Ad-Hoc mode

Audio
ADI® AD1988B 8 -Channel High Definition Audio CODEC
Coaxial / Optical S/PDIF out ports at back I/O
ASUS Noise Filter

USB Ports
10 USB 2.0 ports (4 ports at mid-board, 6ports at back panel)

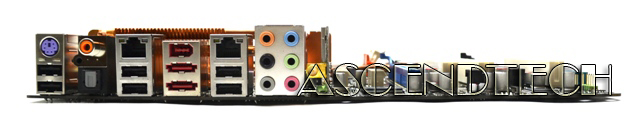

Back Panel I/O Ports
1 x PS/2 Keyboard
2 x External SATA
2 x IEEE 1394a
2 x LAN(RJ45) port
6 x USB 2.0/1.1
8 -Channel Audio I/O
1 x WiFi-AP Solo™ antenna jack

Internal I/O Connectors
2 x USB connectors support additional 4 USB ports
1 x Floppy disk drive connector
1 x IDE connector
6 x SATA connectors
1 x IEEE 1394a connector
1 x CPU Fan connector
4 x Chassis Fan connector
1 x Power Fan connector
1 x S/PDIF Out connector
2 x 4-pin ATX 12V Power connector
24 Power connector
Front panel audio connector
COM connector
Chassis Intrusion connector
CD/AUX audio in
System Panel

BIOS
16 Mb Flash ROM
DMI 2.0
AMI BIOS
PnP
WfM 2.0
SM BIOS 2.3
ACPI 2.0a
Multi-language BIOS
ASUS EZ Flash 2
ASUS CrashFree BIOS 3

Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
