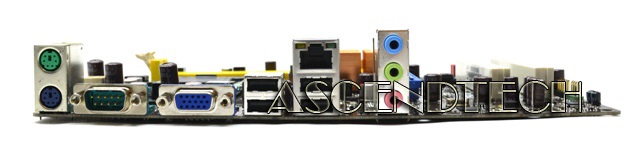

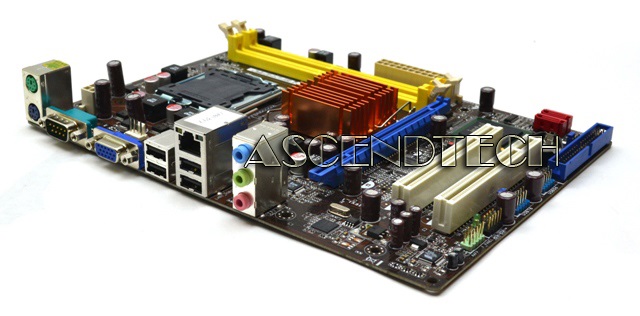

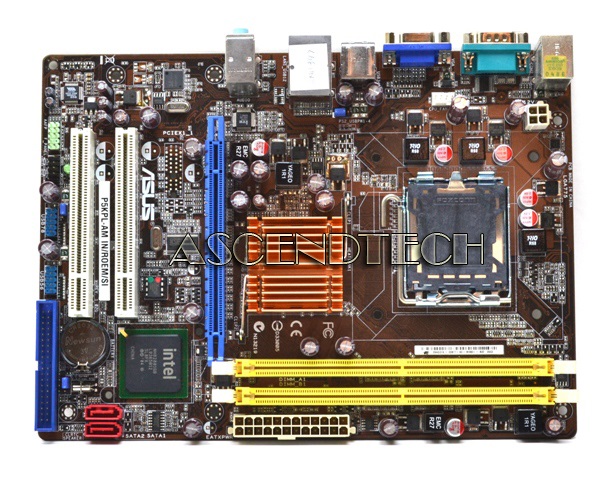

Asus P5KPL-AM IN/ROEM Motherboard

Asus P5KPL-AM IN/ROEM SI LGA775 G31 DDR2 Motherboard. Asus Motherboard meets the current and future demands of high performance, power embedded computing, making it ideal for communications, transaction terminal, interactive client, industrial automation applications as well as for standard home use.


Specifications:

CPU
Core 2 Quad / Core 2 Extreme / Core 2 Duo

Chipset
Intel G31/Intel ICH7

Front Side Bus
1333/1066MHz

Memory
2×240pin DDR2 1066(O.C) / 800 / 667 4GB Max
Dual Channel memory architecture

Expansion Slots
1 x PCIe x16 (Support PCIe 2.0 / 1.0 Architecture )
1 x PCIe x1
1 x PCI 2.2

VGA
Intel GMA 3100

Storage
1 x ATA100 2 Dev. Max
2 x SATA 3Gb/s

LAN
NVIDIA Gigabit MAC
Realtek® 8211CL Gigabit PHY featuring AI NET2
LSI® FW322 controller supports 2 x 1394a ports

Audio
Realtek ALC662
