Asus P5KPL-AM SE Motherboard No I/O

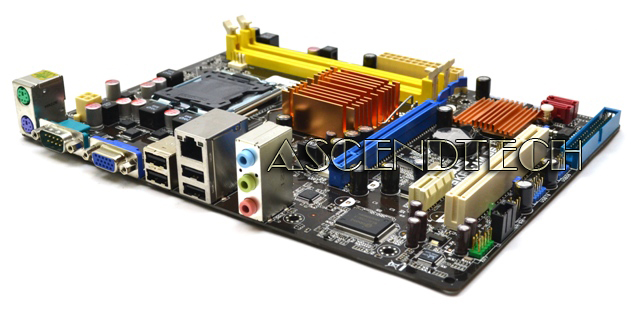

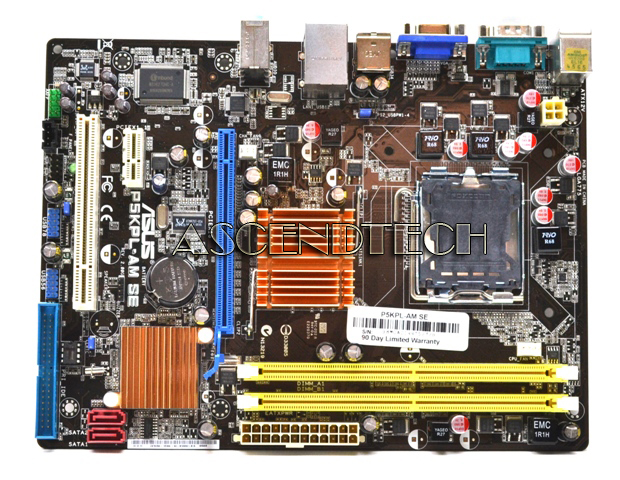

Asus P5KPL-AM SE LGA775 G31 DDR2 Motherboard. In the cost benefit analysis, you’re a sure-fire winner with the new Asus P5KPL-AM SE Intel G31 Socket 775 motherboard. Designed for Intel Core2 Quad/Duo, Pentium 4, Pentium D 8xx & 9xx sequences, and Celeron D processors, this µATX platform offers gamers, home entertainment enthusiasts, and extreme PC buffs superior performance at an affordable price. Based on the Intel G31/ICH7 chipset, the Asus P5KPL-AM SE supports DDR2 800 memory up to 4GB, PCI-E 16x, USB 2.0, 8-channel audio, ethernet, SATA2, and ATA100. And it features an onboard integrated Intel GMA 3100 graphic controller and Live Update.



* Please Note: This is an OEM motherboard and it does not come with rear I/O shield also known as back-plate cover. This part is not needed and you can still install the board in standard ATX case.

Specifications:

CPU Socket Type
LGA 775

CPU Type
Core 2 Quad / Core 2 Extreme / Core 2 Duo

FSB
1333/1066MHz

Chipsets

North Bridge
Intel G31

South Bridge
Intel ICH7

Memory

Number of Memory Slots
2×240pin

Memory Standard
DDR2 1066(O.C) / 800 / 667

Maximum Memory Supported
4GB

Channel Supported
Dual Channel

Expansion Slots

PCI Express x16
1

PCI Express x1
1

PCI Slots
1

Storage Devices

PATA
1 x ATA100 2 Dev. Max

SATA 3Gb/s
2

Onboard Video

Onboard Video Chipset
Intel GMA 3100

Onboard Audio

Audio Chipset
Realtek ALC662

Audio Channels
6 Channels

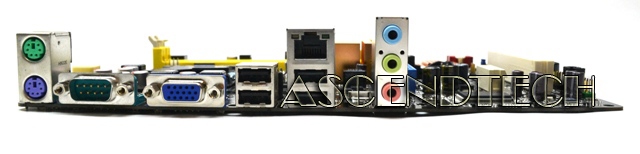

Rear Panel Ports

PS/2
2

COM
1

Video Ports
D-Sub

USB 1.1/2.0
4 x USB 2.0

Audio Ports
3 Ports

Physical Spec

Power Pin
24 Pin
