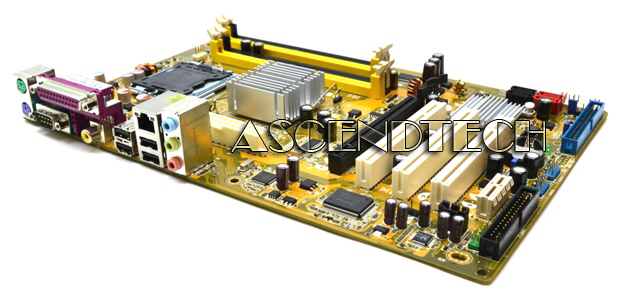

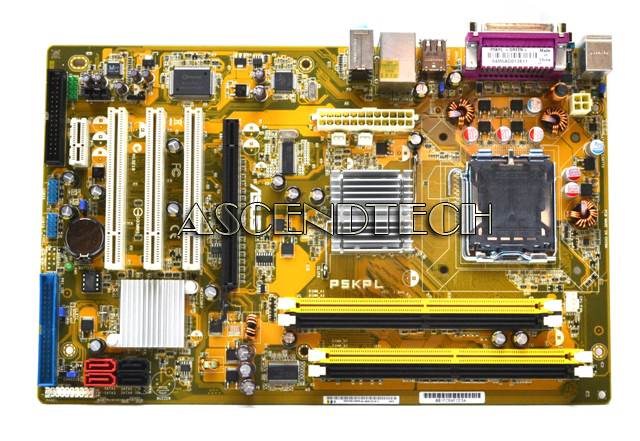

Asus P5KPL LGA775 Motherboard No I/O

Asus P5KPL LGA775 G31 DDR2 Motherboard. This motherboard supports the latest Intel® Quad-core processors in LGA775 package. It also can support Intel® next generation 45nm Multi-Core CPU. It's excellent for multi-tasking, multi-media and enthusiastic gamers with 1333/1066/800 MHz FSB. Intel® Quad-core is one of the most powerful CPU in the world.



* Please Note: This is an OEM motherboard and it does not come with rear I/O shield also known as back-plate cover. This part is not needed and you can still install the board in standard ATX case.

Specifications:

CPU
Intel Socket 775 Core™2 Quad/Core™2 Extreme/Core™2 Duo/Pentium® Extreme/Pentium® D/Pentium® 4/Celeron 400 Processors
Support Intel® 45nm CPU
Intel® Hyper-Threading Technology ready
Support Enhanced Intel SpeedStep Technology (EIST)

Chipset
Intel G31
ICH7

Front Side Bus
1333/1066/800 MHz

Memory
2 x 240-pin DIMM, Max. 4 GB, DDR2 1066*/800/667 Non-ECC,Un-buffered Memory
Dual Channel memory architecture

Expansion Slots
1 x PCIe x16
1 x PCIe x1
3 x PCI

Storage
1 x UltraDMA 100/66
4 x SATA 3 Gb/s ports

LAN
PCIe Gigabit LAN

Audio
ALC662 High Definition Audio 6 -Channel CODEC
Audio Jack-detect Technology

USB Ports
8 USB 2.0 ports

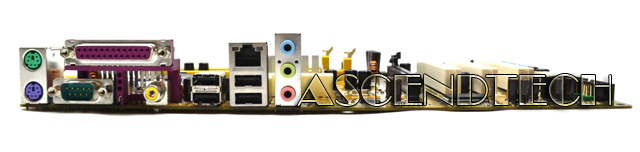

Back Panel I/O Ports
1 x Parallel
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x LAN(RJ45) port
4 x USB 2.0/1.1
1 x COM port
6 -Channel Audio I/O

Internal I/O Connectors
2 x USB connectors support additional 4 USB 2.0 ports
1 x CPU Fan connector
1 x Chassis Fan connector
1 x Power Fan connector
Speaker connector
1 x4-pin ATX 12V Power connector
24-pin EATX12V Power connector
Front panel audio connector
Chassis Intrusion connector
CD/AUX audio in
System Panel

BIOS
8 Mb Flash ROM
Special H/W write production
DMI 2.0
AMI BIOS
WfM 2.0
SM BIOS 2.5
ACPI 2.0

Form Factor
ATX Form Factor
12 inch x7 inch ( 30.5 cm x17.8 cm )
