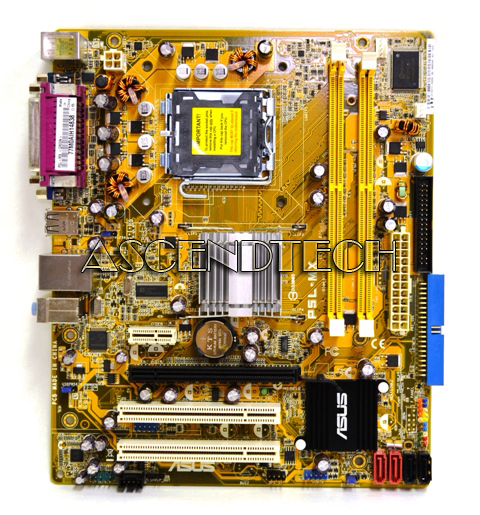

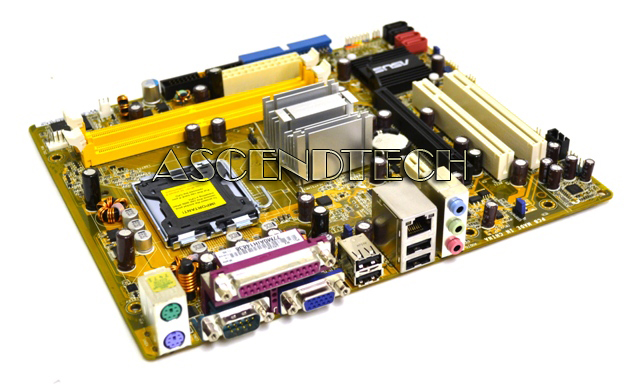

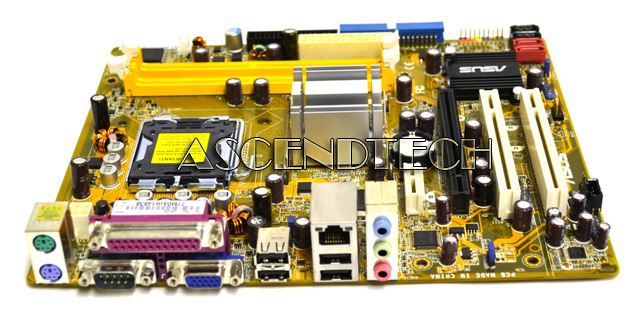

ASUS P5L-MX 945G 1066Fsb PCIe DDR2 SATA2

Asus P5L-MX LGA 775 Intel 945G Micro ATX Intel Motherboard. The ASUS P5L-MX is a great Micro ATX board for an Intel 945G-based mid-range rig. Compatibility with the Dual Core 1066 MHz FSB processors means you're ready for whatever comes next! Its Dual channel DDR2 667 memory architecture and 4 GB (Max cap.) provide livelier responses from the system. Should, just possibly, your system hangup to a problem with the overclocking, the ASUS C.P.R. overclocking protection tool lets you amend system settings from the BIOS and eliminates the need for manual clearance of CMOS data.



Specifications:

CPU
LGA775 socket for Intel® Core 2 Extreme Core 2 Duo Pentium D Celeron Processors

Chipset
Intel 945G
Intel ICH7

Front Side Bus
1066/800MHz

Memory
2×240pin, max. 4GB, DDR2 667
Dual channel memory architecture

Expansion Slots
1 x PCI Express x16 slot
1 x PCI Express x1 slots
2 x PCI slots

LAN
10/100/1000Mbps

Audio
ADI AD1986A
6 Channels

Back Panel I/O Ports
2 x PS/2 Keyboard/Mouse combo port
1 x Serial Port
1 x Parallel Port
1 x VGA port
1 x RJ-45 (LAN) port
1 x LAN (RJ45) ports
4 x USB 2.0/1.1 port
6-channel Audio I/O ports

Form Factor
Micro ATX 9.6" x 8.0"
