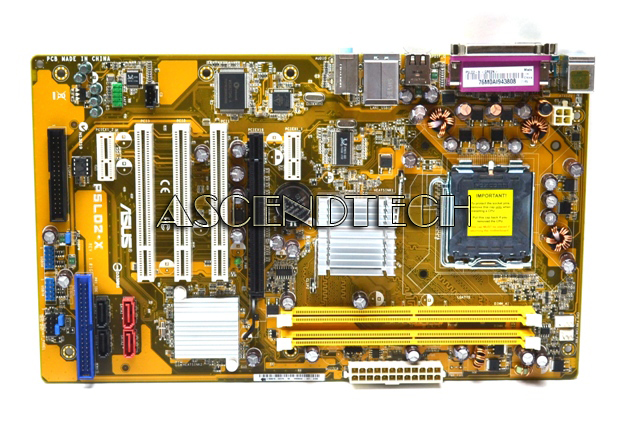

Asus P5LD2-X LGA775 945 DDR2 Motherboard

Asus P5LD2-X LGA775 945 DDR2 Motherboard. This motherboard supports the latest Intel® Core™2 processors in LGA775 package. With new Intel® Core™ microarchitecture technology and 1066 / 800 / 533 MHz FSB, Intel® Core™2 processor is one of the most powerful and energy efficient CPU in the world.



Specifications:

CPU
LGA775 socket for Intel®Prescott/Smithfield/Cedarmill/Conroe/Conroe L/Presler CPU
Intel Hyper-Threading Technology ready
Support Enhanced Intel SpeedStep Technology (EIST)

Chipset
Intel 945 Express Chipset Family
Intel ICH7

Front Side Bus
1066/800/ 533 MHz

Memory
Dual Channel Memory Architecture
2 x 240-pin DIMM Sockets support max. 4GB DDR2 667/533/400 non-ECC, unbuffered memory

Expansion Slots
1 x PCI Express X16
2 x PCI Express X1
3 x PCI

Storage
ICH7 South Bridge:
1 x UltraDMA 100/66/33
4 x Serial ATA 150/300

LAN
PCIe 10/100Mb LAN

Audio
ALC662 High Definition Audio 6-channel CODEC
Audio Jack-detect Technology
Support S/PDIF out interface

USB Ports
Max. 8 USB2.0/1.1 ports

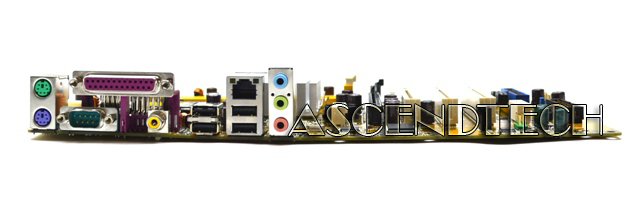

Back Panel I/O Ports
1 x Parallel
1 x PS/2 Mouse
1 x PS/2 Keyboard
1 x COM
1 x RJ45
1 x S/PDIF Out
4 x USB 2.0/1.1
6-channel Audio I/O

Internal I/O Ports
Azalia High definition Analog Front panel Audio connector
Chassis Intrusion connector
4-pin internal Speaker connector
2 x USB 2.0 connector supports additional 4 USB 2.0 ports
CPU/ Chassis FAN connectors
CD audio in connector
24-pin EPS12V Power connector
4-pin ATX 12V Power connector

BIOS
4 Mb Flash ROM, AMI BIOS, Special H/W write production, PnP, DMI v2.0, WfM2.0, SMBIOS v2.4, ACPI v2.0

ATX Form Factor
ATX Form Factor, 12" x 7.2" (30.5cm x 18.3cm)
