ASUS P5N-MX DDR2-800 SATA2 PCIe 1333FSB

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Asus P5n-Mx Ddr2-800 Sata2 Pcie 1333Fsb
  Enlarge
Asus P5n-Mx Ddr2-800 Sata2 Pcie 1333Fsb
Asus P5n-Mx Ddr2-800 Sata2 Pcie 1333Fsb
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB4ASUP5NMX
Brand Asus / Asustek Computer
Model P5N-MX
Category Intel Lga775 Motherboards

Description

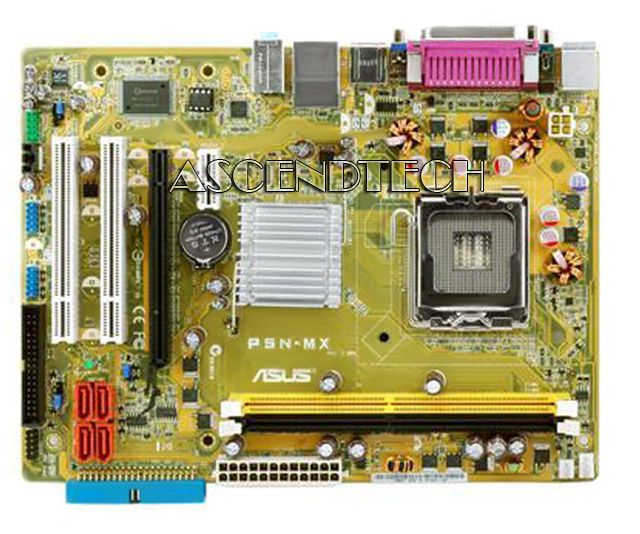

Asus P5N-MX Socket LGA775 Quad Core / Core 2 Duo DDR2-800 PCI-Express X16 SATA2 Raid Motherboard With GeForce 7050 nForce 610i ChipSet & OnBoard GeForce Video / 6-Channel Audio & 10/100Mbps Ethernet (LAN)!

Specifications:

  • Mfr Part Number: P5N-MX
  • CPU: Socket 775 Support Core 2 Quad/ Core 2 Duo/ Pentium D/ Pentium 4/ Celeron D Processor; Compatible with Intel 05B/05A/06 Processors; Support Intel Next Generation 45nm CPU; Support Intel Hyper-Threading Technology; FSB 1333 (OC)/ 1066/ 800/ 533 MHz
  • Chipset: nVidia GeForce 7050 & nForce 610i
  • Memory: 2x 184pin DDR2-800(OC)/667/533 DIMMs, Non-ECC Un-buffered, Max Capacity 4GB
  • Slots: 1x PCI-Express x16 Slot; 1x PCI-Express x1 Slot; 2x PCI Slots
  • IDE/SATA: 1x ATA-133 Channel; 4x SATA2 Ports, Support RAID 0, 1, JBOD
  • Audio: Realtek ALC662 6-Channel High-Definition Audio CODEC
  • Video: nVidia GeForce 7050 Graphics Controller
  • LAN: Integrated 10/100 Ethernet Controller
  • Ports: 8x USB 2.0 Ports (4 rear, 4 by headers); 2x PS/2 Ports; 1x Serial Port; 1x Parallel Port; 1x VGA Port; 1x RJ45 LAN Port; Audio I/O Jacks
  • Power Connector: 1x 24pin Main Power; 1x 4pin CPU Power
  • Form Factor: Micro ATX, 9.6 x 7.2 inch / 24.5 x 18.3 cm



Detailed Manufacturers Specifications:

CPU
Intel Socket 775 Core™2 Quad/Core™2 Duo/Pentium® D/Pentium® 4/Celeron D Processors
Compatible with Intel® 05B/05A/06 processors
Support Intel® next generation 45nm CPU
Intel® Hyper-Threading Technology ready
*Refer to www.asus.com for Intel CPU support list

Chipset
NVIDIA GeForce 7050/nForce 610i

Front Side Bus
1333/1066/800/533 MHz
Memory
2 xDIMM, Max. 4 GB, DDR 800/667/533 Non-ECC,Un-buffered Memory
*800 is overclocking speed
** Refer to www.asus.com or user manual for Memory QVL (Qualify Vendor List)
Expansion Slots
1 x PCIe x16
1 x PCIe x1
2 x PCI

VGA
GeForce 7050 GPU
Max. resolution:1920x1440X32bpp, Horizontal:115KHz Vertical:75Hz
Storage
Southbridge
1 xUltraDMA 133
2 xSATA 3 Gb/s ports Support RAID 0,1,JBOD

LAN
100/10
Audio
Realtek ALC662, 6 -Channel High-Definition Audio CODEC

USB
8 USB 2.0 ports (4 ports at mid-board, 4 ports at back panel)
Special Features
ASUS MyLogo 2
ASUS CrashFree BIOS 2
ASUS Q-Fan
ASUS EZ Flash 2

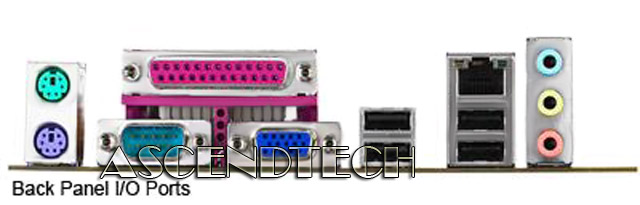

Back Panel I/O Ports
1 x VGA
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x LAN(RJ45) port
4 x USB 2.0/1.1
1 x COM port
6 -Channel Audio I/O
1 x Parallel

Internal I/O Connectors
2 x USB connectors support additional 4 USB ports
2 x S/PDIF Out connector
1 x 4-pin ATX 12V Power connector
Chassis Intrusion connector
CD/AUX audio in
System Panel Connector
1 x internal speaker connector
1 x CPU/ Chassis Fan connector
Front panel High Definition audio connector
24-pin EPS 12V Power connector

BIOS
8 Mb Flash ROM
PnP
DMI 2.0
WfM 2.0
SM BIOS 2.5
Award BIOS

Manageability
WOR by Ring,PXE, WOL, PME Wake Up
Accessories
User's manual
1 x I/O Shield
1 x UltraDMA 133/100/66 cable
1 x Floppy disk drive cable
1 x SATA cable
1 SATA power cable

Support Disc
Drivers
ASUS PC Probe II
Anti-virus software (OEM version)
ASUS Update

Form Factor
uATX Form Factor
9.6 inch x 7.2 inch ( 24.5 cm x 18.3 cm )
