ASUS P5N73-AM LGA775 1333FSB QUAD CORE 2

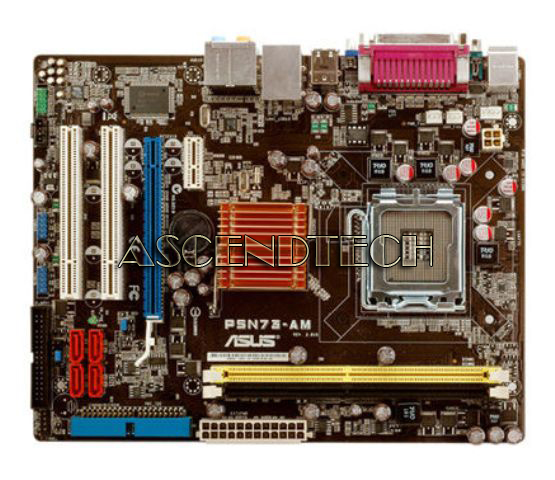

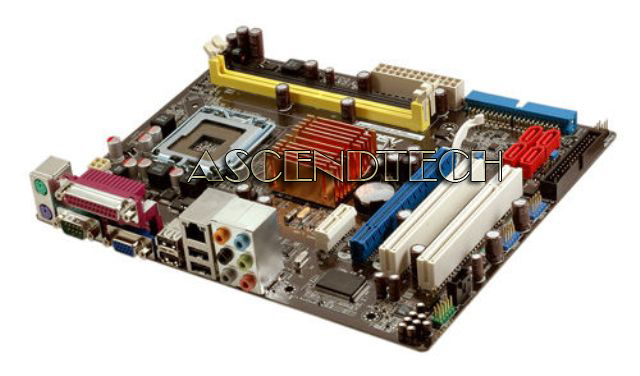

Asus P5N73-AM LGA775 DDR2 Motherboard. P5N73-AM with NVIDIA GeForce 7050 / nForce 610i chipset inside supports Intel® 45nm multi-core CPU and features 1333MHz FSB, high performance integrated graphics engine, DDR2 800(O.C.) memory, and HD Audio CODEC. Users can experience faster graphics performance and higher video quality today. P5N73-AM is the most powerful all-in-one solution platform for Intel platform with NVIDIA chipset inside. This motherboard supports the latest Intel® Core™2 processors in LGA775 package. With new Intel® Core™ microarchitecture technology and 1333MHz FSB, Intel® Core™2 processor is one of the most powerful and energy efficient CPU in the world.



* Please Note: This is an OEM motherboard and it does not come with rear I/O shield also known as back-plate cover. This part is not needed and you can still install the board in standard ATX case.

Specifications:

CPU
Intel® Socket 775 for Intel® Core™2 Quad / Core™2 Duo / Pentium® D / Pentium® 4 / Celeron® Processors
Support Intel next generation 45nm CPU
Intel® Hyper-Threading Technology ready

Chipset
NVIDIA GeForce 7050/nForce 610i

Front Side Bus
1333/1066/800/533 MHz

Memory
2 x DIMM, Max. 4 GB, DDR2 800/667/533 Non-ECC,Un-buffered Memory

Expansion Slots
1 x PCIe x16
1 x PCIe x1
2 x PCI

VGA
Integrated GeForce 7050 GPU
Max. resolution:1920x1440X32bpp
Horizontal:115KHz Vertical:75Hz

Storage
Southbridge
1 x UltraDMA 133/100/66
4 x SATA 3 Gb/s ports Support RAID 0,1,JBOD

LAN
Realtek RTL8201CP, 100/10

Audio
VIA VT1708B 8 -Channel High-Definition Audio CODEC
Anti-Pop Function
Jack-detect & Multi-Streaming
Support S/PDIF Out connector

USB Ports
8 USB 2.0 ports (4 ports at mid-board, 4 ports at back panel)

BIOS
8 Mb Flash ROM
DMI 2.0
PnP
WfM 2.0
SM BIOS 2.5
Award BIOS

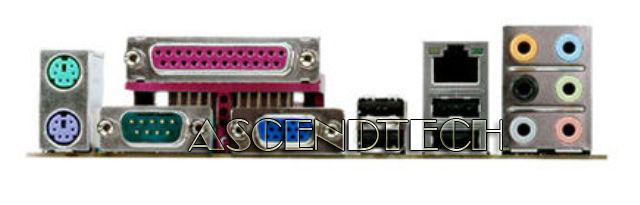

Back Panel I/O Ports
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x VGA
1 x COM
1 x Parallel port
1 x LAN (RJ45) port
4 x USB 2.0
8 Channel Audio I/O

Internal I/O Connectors
2 x USB connectors support additional 4 USB ports
1 x internal speaker connector
1 x CPU/ Chassis/ Power Fan connector
Front panel High Definition audio connector
1 x S/PDIF Out connector
Chassis Intrusion connector
CD audio in
24-pin EPS 12V Power connector
4-pin ATX 12V Power connector
System Panel
1 x floppy disk drive connector

Form Factor
uATX Form Factor
9.6 inch x 7.6 inch ( 24.4 cm x 19.3 cm )
