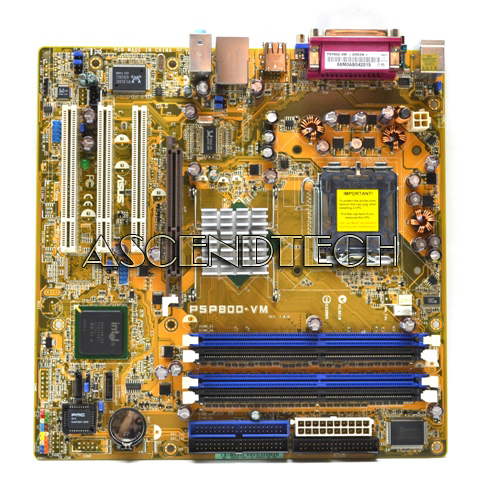

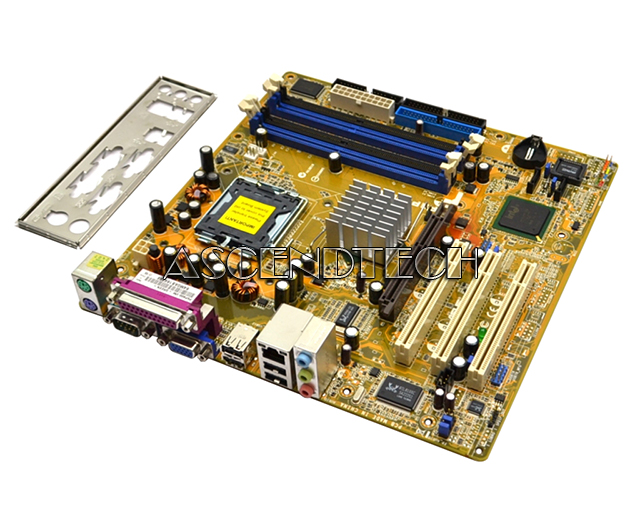

Asus P5P800-VM Motherboard With I/O
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Item CodeMBP5P800VMLGA77
ModelP5P800-VM
CategoryIntel Lga775 Motherboards
ConditionPre-Owned Grade B
Condition DescriptionPlease Note, this item is used and has minor scuffs and scratches, but is fully operational and functions as intended! Comes with I/O Shield Only! No Cables, Manuals, or any other accessories!
Description
Asus P5P800-VM Intel Chipset 865G Socket LGA775 DDR uATX Desktop Motherboard.
ASUS Model Number: P5P800-VM
Features:
- LGA775 socket for Intel 65nm Pentium D/Pentium 4/Celeron CPU
- Intel 865G + Intel ICH5
- 800/ 533 MHz
- Dual-channel DDR400
- Intel Extreme Graphics 2
- 1x AGP 8X
- 2x ATA133, 2x SATA
- 10/100 LAN
- 6- Channel audio
Specifications:
CPU:
Intel Socket 775 Pentium D/Pentium 4/Celeron Processors
Compatible with Intel 05B/05A/06 processors
Intel Hyper-Threading Technology ready
Support Intel 65nm Pentium D/ Intel Pentium 4/ Celeron processors
Chipset:
Intel 865G
Intel ICH5
Front Side Bus: 800/533/ MHz
Memory:
4x DIMM, Max. 4GB, DDR 400/333/266 SDRAM, Non-ECC, Un-buffered Memory
Dual Channel memory architecture
VGA:
Integrated Intel Extreme Graphics 2
Supports RGB with max. resolution 2048 x 1536 @75Hz
Max. Refresh Rate: 1800 x 1440 @85Hz
Expansion Slots:
3x PCI
1x AGP 8X
Storage:
Southbridge
2x UltraDMA 100/66/33
2x SATA 3Gb/s ports
USB: 8x USB 2.0 ports
Audio:
Realtek ALC655 6 -Channel audio CODEC
S/PDIF out on back I/O port
Audio Sensing Technology
LAN:Realtek 8100C 100/10 LAN Controller
Overclocking Features:
Intelligent overclocking tools
- ASUS CPU Lock Free
Overclocking Protection
- ASUS C.P.R.(CPU Parameter Recall)
Special Features:
ASUS EZ Flash
ASUS CrashFree BIOS 2
ASUS CPU Lock Free
ASUS C.P.R.(CPU Parameter Recall)
ASUS Q-Fan

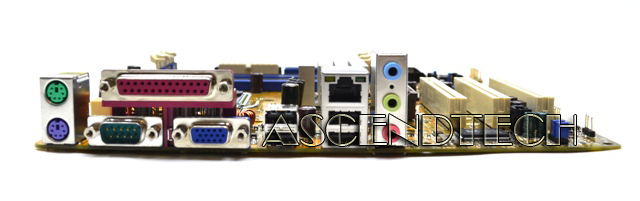

Back Panel I/O Ports:
1x Parallel
1x VGA
1x PS/2 Keyboard
1x PS/2 Mouse
1x LAN(RJ45) port
4x USB 2.0/1.1
1x COM port
6- Channel Audio I/O
Internal I/O Connectors:
2x USB connectors supports additional 4 USB 2.0 ports
1x CPU Fan connector
1x Chassis Fan connector
1x S/PDIF Out connector
1x 4-pin ATX 12V Power connector
20-pin ATX Power connector
Front panel audio connector
Chassis Intrusion connector
CD/AUX audio in
BIOS:
4Mb Flash ROM
DMI 2.0
AMI BIOS
PnP
WfM 2.0
Accessories: I/O Shield
Form Factor: uATX Form Factor
