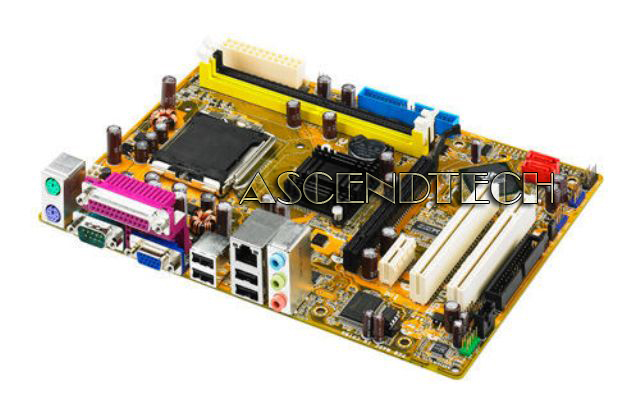

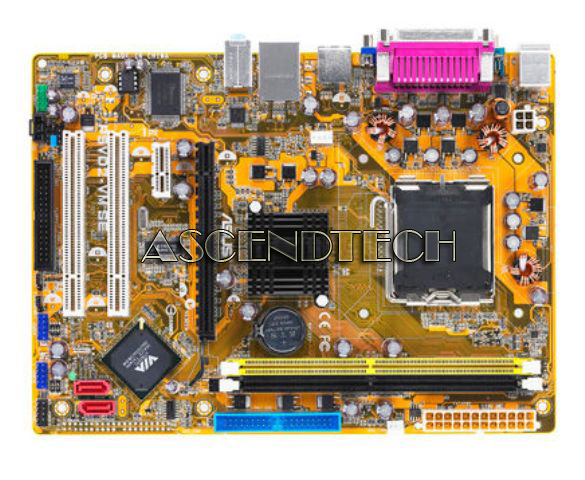

Asus P5VD2-VM SE DDR2 Motherboard No I/O
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Item Code MBP5VD2VMSEDDR2
Brand Asus / Asustek Computer
Model P5VD2-VM SE LGA775 DDR2
Category Intel Lga775 Motherboards
Description
Asus P5VD2-VM SE LGA775 DDR2 Motherboard. This motherboard supports the latest Pentium 4 CPU from Intel in LGA775 package. With 1066/ 800/ 533MHz FSB, Hyper-Threading Technology and core-speeds up to 3.6GHz and beyond, Intel´s LGA775 Pentium 4 is one of the fastest desktop processors to date. This motherboard supports the latest Intel® Core™2 processors in LGA775 package. With new Intel® Core™ microarchitecture technology and 1066 / 800 MHz FSB, Intel® Core™2 processor is one of the most powerful and energy efficient CPUs in the world.
* Please Note: This is an OEM motherboard and it does not come with rear I/O shield also known as back-plate cover. This part is not needed and you can still install the board in standard ATX case.
Specifications:
CPU
LGA775 socket for Intel® Core™2 Duo/ Pentium® D / Pentium® 4 / Celeron® D processors
Support Intel EM64T/EIST/Hyper-Threading Technology
Chipset
VIA P4M900 / VIA VT8237S
Front Side Bus
1066 / 800 / 533 MHz
Memory
2 x 240-pin DIMM sockets support max. 4GB, DDR2 667/533/400 MHz, non-ECC, un-buffered memory
Expansion Slots
1 x PCIe x16
1 x PCIe x1
2 x PCI 2.2
VGA
Integrated Graphics, up to 256MB shared memory
Support max. resolution to 1920 x 1440 (@75Hz)
Storage
VIA VT8237S South Bridge:
1 x UltraDMA 133/100/66/33
2 x Serial ATA 3Gb/s supporting RAID 0, 1, JBOD
LAN
VIA VT8237S built-in 10/100 MAC with external PHY
Audio
Realtek ALC662, 6-CH High-Definition Audio CODEC
USB Ports
Max. 8 USB2.0 ports
BIOS
4 Mb Flash ROM,AMI BIOS, PnP, DMI2.0, WfM2.0, ACPI2.0a, SM BIOS 2.3
Back Panel I/O Ports
1 x Parallel
1 x VGA Port
1 x COM Port
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 xLAN (RJ-45) port
4 x USB 2.0/1.1 ports
6-Channel Audio ports
Internal I/O Connectors
2 x USB 2.0 connectors support additional 4 USB 2.0 ports
1 x CPU / Chassis fan connector
1 x Floppy disk drive connector
1 x IDE connector for two devices
1 x S/PDIF out connector
Front panel Audio connector
CD audio-in connector
Chassis intrusion connector
24-pin ATX Power connector
4-pin ATX 12V Power connector
System Panel connector
Form Factor
mATX Form Factor
9.6"x 7"(24.4cm x 17.8cm)
* Please Note: This is an OEM motherboard and it does not come with rear I/O shield also known as back-plate cover. This part is not needed and you can still install the board in standard ATX case.
