Asus P5VDC-X LGA775 otherboard No I/O
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Item Code MBP5VDCXLGA775R
Brand Asus / Asustek Computer
Model P5VDC-X LGA775 DDR2
Category Intel Lga775 Motherboards
Description

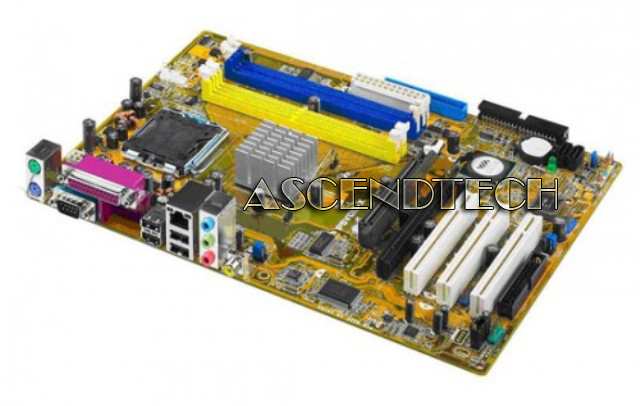

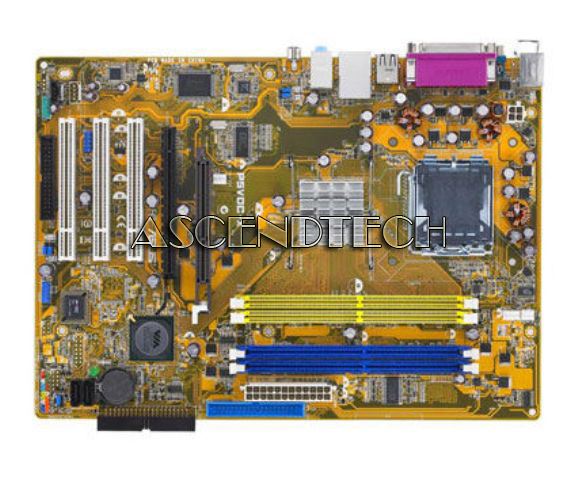

Asus P5VDC-X LGA775 DDR2 Motherboard. The motherboard is capable of supporting the Intel LGA775 Pentium 4, the dual-core CPU, as well as compatibility of either 64- or 32-bit architecture. Featuring 1066/800/533MHz FSB, Hyper Threading Technology, dedicated L2 cache, and core-speeds up to 3.8GHz and beyond, the motherboard delivers advanced system performance, faster memory access, and increased productivity. This motherboard support s Intel® 65nm Pentium® D/ Intel® Pentium® 4/ Celeron® processors. ASUS motherboard is the ideal solution to enhance the performance of new generation processors.
* Please Note: This is an OEM motherboard and it does not come with rear I/O shield also known as back-plate cover. This part is not needed and you can still install the board in standard ATX case.
Specifications:
CPU
LGA775 socket for Intel®Pentium D/Pentium 4/Celeron CPU
Support Intel® 65nm Pentium® D/ Intel® Pentium® 4/ Celeron® processors.
Compatible with Intel® 05B/05A and 04B/04A processors
Support Intel®EM64T/Hyper-Threading Technology
Chipset
VIA PT880 Ultra
VIA VT8237A
Front Side Bus
1066/ 800/ 533 MHz
Memory
2 x 240-pin DIMM Sockets support max. 2GB DDR2 533/400 non-ECC, unbuffered memory
2 x 184-pin DIMM Sockets support max. 2GB DDR 400/333/266 non-ECC, unbuffered memory
Note: DDR and DDR2 memory can not be used simultaneously
Expansion Slots
1 x AGP8X
1 x PCI-E X16 (max. X4 mode)
3 x PCI
Storage
2 x UltraDMA 133/100
2 x Serial ATA with RAID0, 1, JBOD support
LAN
Realtek RTL8201CL 10/100 LAN PHY
Audio
ADI AD1986A High Definition Audio 6-channel CODEC
S/PDIF out on back I/O port
USB Ports
Max. 8 USB2.0/1.1 ports
BIOS
4 Mb Flash ROM,AMI BIOS, Green, PnP, DMI2.0, WfM2.0, ACPI2.0a, SM BIOS 2.3
Back Panel I/O Ports
1 x Parallel
1 x COM Port
1 x S/PDIF Out
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x RJ45
4 x USB 2.0/1.1
6-channel Audio I/O
Internal I/O Connectors
2 x USB 2.0/1.1 connectors supports additional 4 USB 2.0/1.1 ports
CPU / Chassis / Power fan connectors
Front panel High Definition Audio connector
CD audio-in connector
24-pin EATX 12V Power connector
4-pin ATX +12V Power connector
Form Factor
ATX Form Factor, 12"x 8.6"(30.5cm x 22.9cm)
