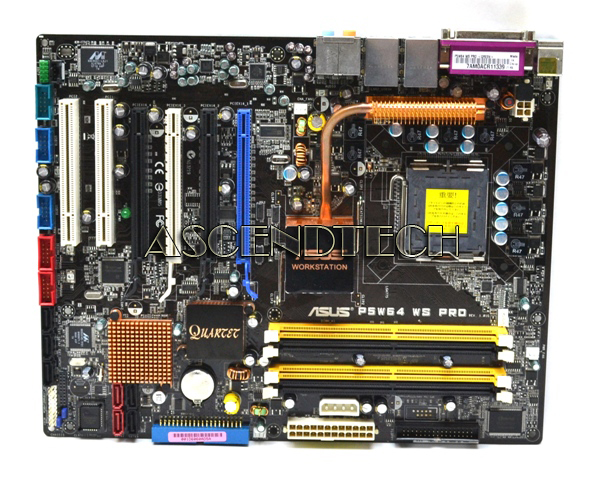

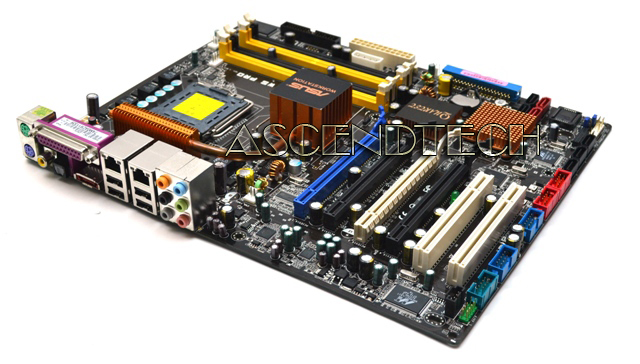

Asus P5W64 WS Pro LGA775 DDR2 Motheboard

Asus P5W64 WS Pro LGA775 975X DDR2 Motherboard. This motherboard supports the latest Intel Core2 processors in LGA775 package. It also can support Intel® next generation 45nm Multi-Core CPU. With new Intel Core microarchitecture technology and 1333 / 1066 / 800 MHz FSB, Intel Core2 processor is one of the most powerful and energy efficient CPU in the world.



Specifications:

CPU
Intel Socket 775 Pentium® Extreme/Pentium® D/Pentium® 4/Celeron Processors
Intel® Quad-core CPU Ready
Support Intel 65nm, Core™2 Extreme / Core™2 Duo
Support Intel next generation Mulit-Core CPU
Compatible with Intel 06B, 05B/ 05A and 04B/04A processors
Intel EM64T and Hyper-Threading Technology ready

Chipset
Intel 975X
ICH7RPCIe Switch: IDT 89HA0324

Front Side Bus
1066/800 MHz

Memory
4 x DIMM, Max. 8 GB, DDR2 667/533 ECC,Non-ECC,Un-buffered Memory
Dual Channel memory architecture
Native DDR2 800 Support

Expansion Slots
4 x PCIe x16 slot
2 x PCI 2.2

Storage
Southbridge
1 x UltraDMA 133/100
4 x SATA 3 Gb/s ports Support RAID 0,1,5,10
Marvell 88SE6141 SATA/ATA controller
1 x External SATA 3.0Gb/s
3 x SATA 3.0Gb/s (RAID 0,1,10)

LAN
Marvell 88E8052 + 88E8001PCI-E Dual Gigabit LAN controller
Support Teaming Technology

Audio
ADI 1988B 8 -Channel High Definition Audio CODEC
Coaxial / Optical S/PDIF out ports on back I/O port
Support Jack-Sensing, Enumeration, Multi-streaming and Jack-Retasking

USB Ports
8 USB 2.0 ports

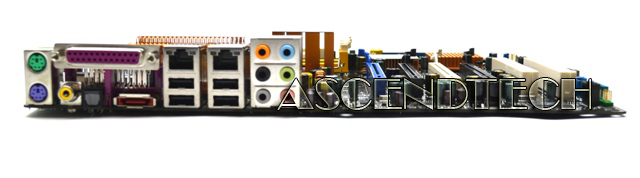

Back Panel I/O Ports
1 x Parallel
1 x Audio I/O
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x External SATA
1 x S/PDIF Out
1 x LAN(RJ45) port

Internal I/O Ports
4 x USB connectors
1 x Floppy disk drive connector
1 x IDE connector
1 x SATA connectors
1 x IEEE 1394a connector
1 x CPU Fan connector
1 x Power Fan connector
1 x8-pin ATX 12V Power connector
24 Power connector
Front panel audio connector
Chassis Intrusion connector
CD/AUX audio in
Chassis fan1 with Q-fan control

BIOS
8 Mb Flash ROM
DMI AMI BIOS
PnP
WfM 2.0
SM BIOS v2.3
ACPI v2.0a
ASUS EZ Flash
ASUS CrashFree BIOS 2

ATX Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.5 cm )
