Asus P6X58D Premium Motherboard NO I/O

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

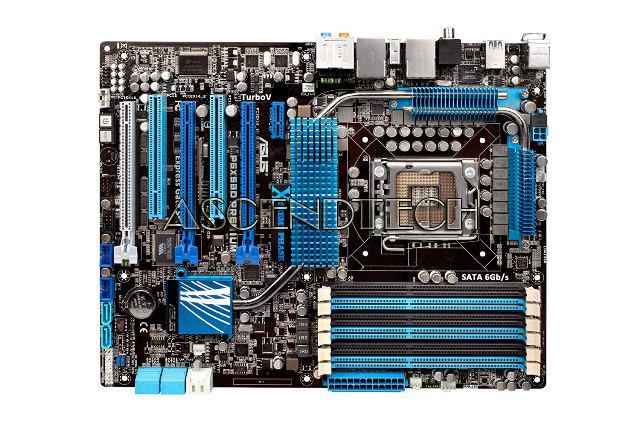

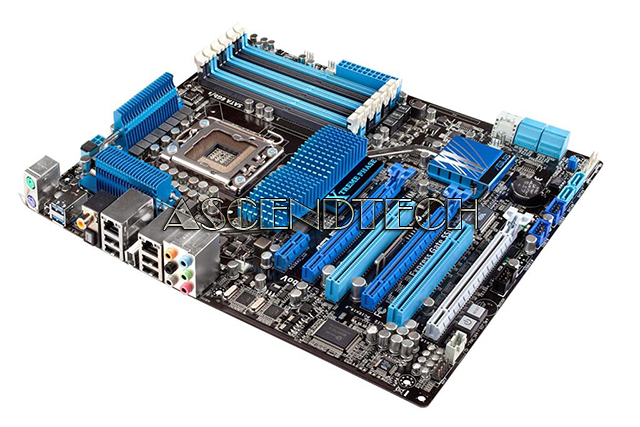

Asus P6x58d Premium Motherboard No I/O
  Enlarge
Asus P6x58d Premium Motherboard No I/O
Asus P6x58d Premium Motherboard No I/O
Asus P6x58d Premium Motherboard No I/O
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB7ASUSP6X58DPN
Brand Asus / Asustek Computer
Model P6X58D Premium
Category Intel Lga1366 Motherboards
Condition Like New Grade A
Condition Description Please Note: This is an OEM motherboard and it does not come with rear I/O shield also known as back-plate cover; this part is not needed and you can still install the board in standard ATX case.

Description

ASUS P6X58D Premium Intel Chipset X58 Socket LGA1366 DDR3 ATX Desktop Motherboard. ASUS P6X58D Premium Motherboard - LGA 1366, Intel X58, SATA, SLI Ready, CrossFireX Ready, Triple Channel DDR3 support, RAID, Hyperthreading, USB 3.0, SATA 6Gb/s. The ASUS P6X58D Premium introduces a new era for extreme performance. It is an X58-based motherboard that supports Intel’s new generation extreme performance Core i7 Processors and both SLI and CrossFireX! Six SATA 3Gb/s ports with RAID 0, 1, 5, and 10 along two SATA 6Gb/s ports for ultra high speed transfer. Memory support includes up to 24GB of Triple Channel DDR3 memory. Intel has brought back Hyperthreading technology and combined it with a native quad-core design to give support for 8 separate threads in the new LGA1366 / Socket B CPU interface and their replacement for the old Front Side Bus technology, QuickPath Interconnect provides a system bus speed of up to 6.4GT/s. The three PCI-Express 2.0 slots to take full advantage of either 2 or 3 graphics cards, allowing up to four GPUs to be used for maximum graphics performance.







Specifications:

CPU:
Intel Socket 1366 Core i7 Processor Extreme Edition/Core i7 Processor Supports Intel Turbo Boost Technology

Chipset:
Intel X58 / ICH10R

System Bus:
Up to 6400 MT/s

Memory:
6 x DIMM, Max. 24 GB, DDR3 2000(O.C.)*/1600/1333/1066 Non-ECC,Un-buffered Memory
Triple channel memory architecture
Supports Intel Extreme Memory Profile (XMP)

Expansion Slots:
3 x PCIe 2.0 x16 (at x16/x8/x8 or x16/x16/x1 mode)
1 x PCIe x1
2 x PCI

Multi-GPU Support:
Supports ATI Quad-GPU CrossFireX Technology

Storage:
Intel ICH10R controller
6 xSATA 3.0 Gb/s ports
Intel Matrix Storage Technology Support RAID 0,1,5,10
Marvell PCIe SATA 6Gb/s controller*
- 2 x SATA 6.0 Gb/s ports

LAN:
Dual Gigabit LAN controllers 2*Marvell 88E8056 PCIe Gigabit LAN controller featuring AI NET2

Audio:
Realtek ALC889 8-Channel High Definition Audio CODEC
- DTS Surround Sensation UltraPC
- BD audio layer Content Protection
- Supports Jack-Detection, Multi-streaming, Front Panel Jack-Retasking
- Coaxial / Optical S/PDIF out ports at back I/O

IEEE 1394:
VIA VT6308P controller supports 2 x 1394a port(s) (one at mid-board; one at back panel)

USB:
NEC USB 3.0 controller
- 2 x USB 3.0/2.0 ports (at back panel)
Intel ICH10R Southbridge
- 8 x USB 2.0/1.1 ports (4 ports at midboard; 4 ports at back panel)

ASUS Unique Features:
True USB 3.0 Support
True SATA 6Gb/s Support
ASUS Xtreme Design
ASUS Xtreme Phase
- ASUS 16+2 Phase Power Design
ASUS Exclusive Overclocking Features
- ASUS TurboV
ASUS Exclusive Features
- MemOK!
- ASUS EPU
- Express Gate SSD
ASUS Quiet Thermal Solution
- ASUS Fanless Design: Heat-pipe solution
- ASUS Fanless Design: Stack Cool 3+
- ASUS Fan Xpert
ASUS Crystal Sound
- ASUS Noise Filter
ASUS EZ DIY
- ASUS Q-Design: Q-Slot
- ASUS Q-Shield
- ASUS Q-Connector
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
- Multi-language BIOS

Overclocking Features:
Intelligent overclocking tools
- ASUS TurboV
Precision Tweaker 2
- vCore: Adjustable CPU voltage at 0.00625V increment
- vChipset 31-step chipset voltage control
- vCPU PLL: 36-step reference voltage control
- vDRAM Bus: 49-step DRAM voltage control
- vNB-PCIe: 65-step chipset-PCIe voltage control
SFS (Stepless Frequency Selection)
- PCI Express frequency tuning from 100MHz up to 180MHz at 1MHz increment
Overclocking Protection
- ASUS C.P.R.(CPU Parameter Recall)

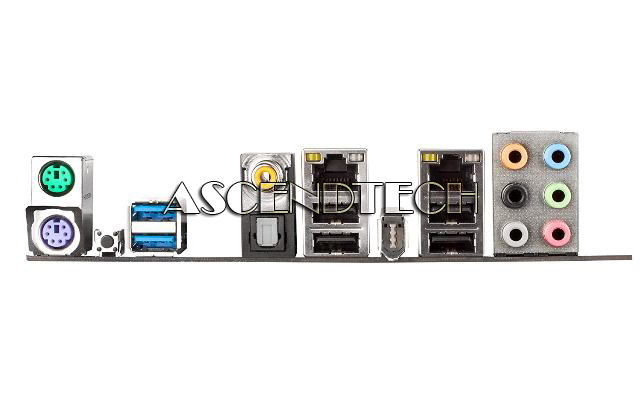

Back Panel I/O Ports:
1 x IEEE 1394a
2 x LAN(RJ45) port(s)
8 -Channel Audio I/O
1 x PS/2 Keyboard (Purple)
1 x PS/2 mouse port (Green)
1 x Clear CMOS button
1 x Coaxial S/PDIF Output
1 x Optical S/PDIF Output
2 x USB 3.0/2.0 ports
4 x USB 2.0/1.1 ports

Internal I/O Connectors:
2 x USB connectors support additional 4 USB 2.0/1.1 ports
1 x IEEE 1394a connector
1 x CPU Fan connector(s)
1 x Power Fan connector(s)
System Panel (Q-Connector)
2 x SATA 6.0 Gb/s connectors (gray)
6 x SATA 3.0 Gb/s connectors (blue)
3 x Chassis Fan connectors (1 x 4-pin, 2 x 3-pin)
Front panel audio connector
1 x S/PDIF Out Header
CD audio in
24-pin ATX Power connector
8-pin ATX 12V Power connector
1 x MemOK! Button
1 x Power on switch
1 x Reset switch

BIOS:
16 Mb Flash ROM , AMI BIOS, PnP, DMI 2.0, WfM 2.0, SM BIOS 2.3, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3

Manageability:
WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE

Form Factor:
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )











CPU Support List:

Core i7 920(2.66G,L2:4x256KB,L3:8M, rev.C0,130W)

Core i7 920(2.66G,L2:4x256KB,L3:8M, rev.D0,130W)

Core i7 930(2.8G,L2:8M, rev.D0,130W)

Core i7 940(2.93G,L2:4x256KB,L3:8M, rev.C0,130W)

Core i7 950(3.06G,L2:4x256KB,L3:8M, rev.D0,130W)

Core i7 960(3.2G,L2:4x256KB,L3:8M, rev.D0,130W)

Core i7 970(3.2G,Smart Cache:12M, rev.B1,130W)

Core i7 980(3.33G,Smart Cache:12M, rev.B1,130W)

Core i7 Extreme Edition 965(3.20G,L2:4x256KB,L3:8M, rev.C0,130W)

Core i7 Extreme Edition 975(3.33G,L2:4x256KB,L3:8M, rev.D0,130W)

Core i7 Extreme Edition 980X (3.33G,shared cache:12M, rev.B1,130W)

Core i7 Extreme Edition 990X(3.46G,L2:6x256KB,L3:12M,rev.B1,130W)
