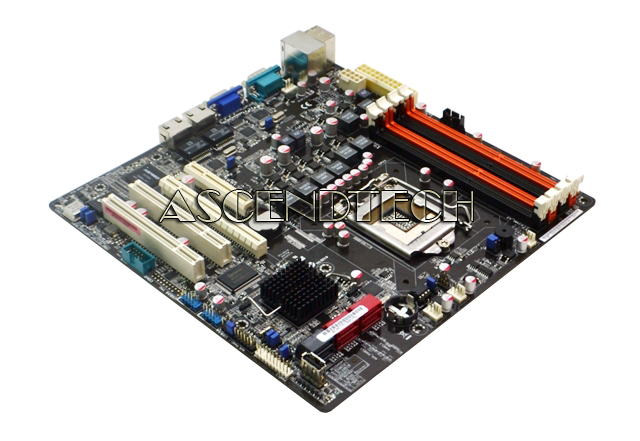

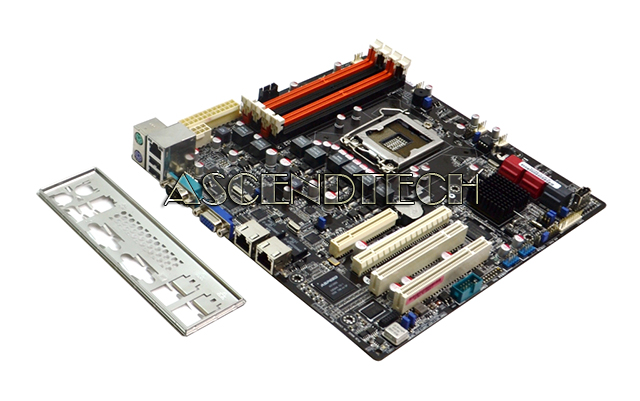

Asus P7F-M REV:1.01G LGA1156 Motherboard

Asus P7F-M REV:1.01G Intel LGA1156 Socket DDR3 Micro ATX Dual LAN Desktop Server Motherboard. With leading-edge architecture to support latest technologies, the space-saving 9.6” x 9.6” Micro ATX serverboard P7F-M is suitable for small form factor server. The integrated dual server class GbE LAN ports provides highly reliable network connections, while the optional ASMB4-iKVM module makes the server manageable for entry-level users.







Specifications:

Processor / System Bus
- 1 x Socket 1156
- Quad/Dual Core Intel Xeon 3400 series Server Processor
- Quad Core Intel Core i7-800 series Desktop Processor
- Quad/Dual Core Intel Core i5/ i3 series Desktop Processor

Core Logic
Intel 3420 PCH

Form Factor
- Micro ATX
- 9.6" x 9.6"

ASUS Features
- Rack Ready (Rack and Pedestal dual use)
- ASWM2.0
- FAN speed control

Memory
- Total Slots: 4 (2-channel) (Desktop processors and Xeon L3406 don't support RDIMM)
- Capacity: Maximum up to 32GB (RDIMM); Maximum up to 16GB (UDIMM )
- Memory Type: DDR3 1066/1333 ECC UDIMM; DDR3 800/1066/1333 RDIMM
- Memory Size: 1GB 2GB 4GB 8GB (RDIMM)/ 1 GB, 2GB, 4GB (UDIMM)

Expansion Slots
- Total PCI/PCI-X/PCI-E Slots: 4
- Slot Location 4: 1x PCI 32bit/33 MHz
- Slot Location 5: 1x PCI 32bit/33 MHz
- Slot Location 6: 1x PCI-E x16 (x16 link)
- Slot Location 7: 1x PCI-E x8 (x4 link)

Storage
- 6x SATA Controller:
- Intel 3420:
- SATA2 300MB/s ports -
- Intel Matrix Storage utility supports software RAID 0, 1, 10 & 5(Windows)
- LSI MegaRAID driver supports software RAID 0, 1& 10(Windows & Linux)

Networking
LAN: 2x Intel 82574L + 1x Mgmt LAN

Graphic
VGA: Aspeed AST2050 8MB

Onboard I/O Connectors
- 1 x PSU Connector 24-pin ATX power connector + 8-pin ATX 12V power connector
- 3 x USB Connectors (support 5 USB ports) (One for internal Type A USB connector )
- 1 x Fan Header 5x 4pin
- 1 x SMBus
- 1 x Chassis Intruder
- 1 x Serial Port Header

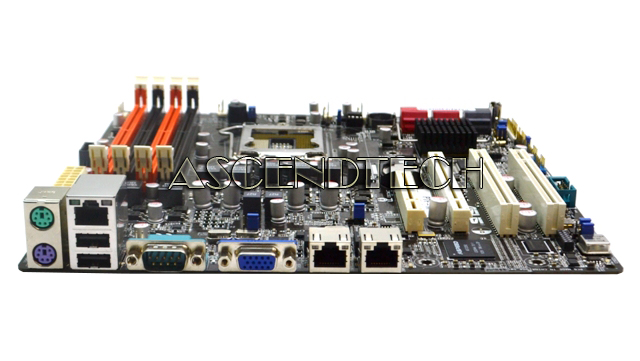

Rear I/O Connectors
- 1 x External Serial Port
- 2 x External USB Port
- 1 x VGA Port
- 2 x RJ-45
- 1 x PS/2 KB/Mouse

Management Solution
- Software: ASWM2.0
- Out of Band Remote Management: Optional ASMB4-iKVM for KVM-over-Internet

Monitoring
- CPU Temperature
- FAN RPM
