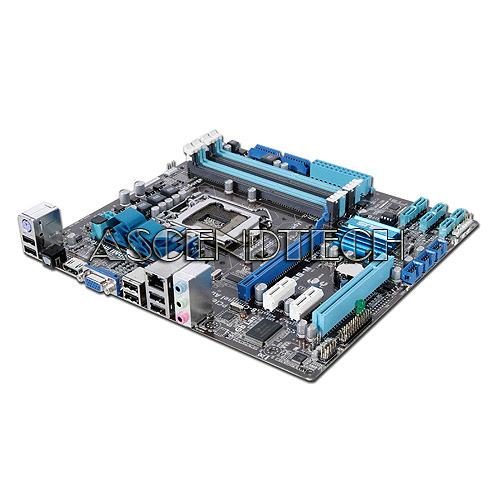

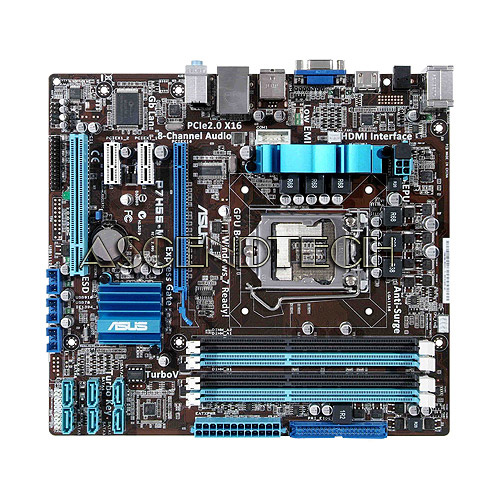

ASUS P7H55-M H55 LGA1156 DDR3 NO I/O

Asus P7H55-M CSM Motherboard - Intel H55 Express, LGA 1156, Dual-Channel DDR3 Support, ATX, SATA, HDMI, VGA is built with the new Intel H55 Express Chipset, supporting the Intel Core i7 and Intel Core i5 processors in the LGA1156 package. The revolutionary two-chip layout enables lower power consumption and more advanced performance tuning for a smoother, more realistic experience. This Intels memory comes with DDR3 memory specification, hitting speeds of a blazing 2133MHz! Six SATA ports deliver greater flexibility. Build your system quickly with 90-degree rotated SATA ports and easy-to-locate, aligned front-panel headers at the edge of the board.

* Please Note: This is an OEM motherboard and it does not come with rear I/O shield also known as back-plate cover; this part is not needed and you can still install the board in standard ATX case.



Specifications:

Brand:
ASUS

Model:
P7H55-M/CSM

CPU Socket Type:
LGA 1156
CPU Type
Core i7 / i5 / i3 / Pentium (LGA1156)
Supported CPU Technologies
Intel Turbo Boost Technology

Chipset:
Intel H55

Number of Memory Slots:
4×240pin
Memory Standard
DDR3 2200(O.C.)/2133/1866/1800/1600/1333/1066
Maximum Memory Supported
16GB
Channel Supported
Dual Channel

Expansion Slots:
PCI Express 2.0 x16
1
PCI Express x1
2 (2.5GT/s, gray slots)
PCI Slots
1

Storage Devices:
PATA
1 x ATA133 2 Dev. Max
SATA 3Gb/s
6

Onboard Audio:
Audio Chipset
Realtek ALC887
Audio Channels
8 Channels

Onboard LAN:
LAN Chipset
Realtek 8111E
Max LAN Speed
10/100/1000Mbps

Rear Panel Ports:
PS/2
1 x PS/2 Keyboard/Mouse Combo port
Video Ports
D-Sub
HDMI
1 x HDMI
USB 1.1/2.0
6 x USB 2.0
S/PDIF Out
1 x Optical
Audio Ports
3 Ports

Internal I/O Connectors:
Onboard USB
3 x USB connectors support additional 6 USB ports

Form Factor:
Micro ATX

Features:
Intel LGA1156 Platform
Intel H55 Express Chipset
ASUS Protect 3.0 Technology
ASUS GPU Boost
ASUS TurboV and Turbo Key





CPU Support List:

Core i3 530(2.93G,L2:4M, IGPU,rev.C2,73W)

Core i3 530(2.93G,L2:4M, IGPU,rev.K0,73W)

Core i3 540(3.06G,L2:4M,IGPU, rev.C2,73W)

Core i3 540(3.06G,L2:4M,IGPU, rev.K0,73W)

Core i3 550(3.2G,L2:4M, IGPU,rev.K0)

Core i3 560(3.33G,L2:4M, IGPU,rev.K0)

Core i5 650(3.2G,L2:4M, IGPU,rev.C2,73W)

Core i5 650(3.2G,L2:4M, IGPU,rev.K0,73W)

Core i5 655K(3.2G,L2:4M, IGPU,rev.K0,73W)

Core i5 660(3.33G,L2:4M, IGPU,rev.C2,73W)

Core i5 660(3.33G,L2:4M, IGPU,rev.K0,73W)

Core i5 661(3.33G,L2:4M,IGPU, rev.C2,87W)

Core i5 661(3.33G,L2:4M,IGPU, rev.K0,87W)

Core i5 670(3.46G,L2:4M, IGPU,rev.C2,73W)

Core i5 670(3.46G,L2:4M, IGPU,rev.K0,73W)

Core i5 680(3.6G,L2:4M, IGPU,rev.K0,73W)

Core i5 750(2.66G,L3:8M, rev.B1,95W)

Core i5 750S(2.4G,L3:8M, rev.B1,82W)

Core i5 760(2.8G,L3:8M, rev.B1,95W)

Core i7 860(2.80G,L3:8M, rev.B1,95W)

Core i7 860S(2.53G,L3:8M, rev.B1,82W)

Core i7 870(2.93G,L3:8M, rev.B1,95W)

Core i7 870S(2.66G,L3:8M, rev.B1)

Core i7 875K(2.93G,L3:8M, rev.B1,)

Core i7 880(3.06G,L3:8M, rev.B1)

Pentium G6950(2.8G,L2:4M, IGPU,rev.C2,73W)

Pentium G6950(2.8G,L2:4M, IGPU,rev.K0,73W)

Pentium G6960(2.93G,L2:3M, IGPU,rev.K0,73W)
