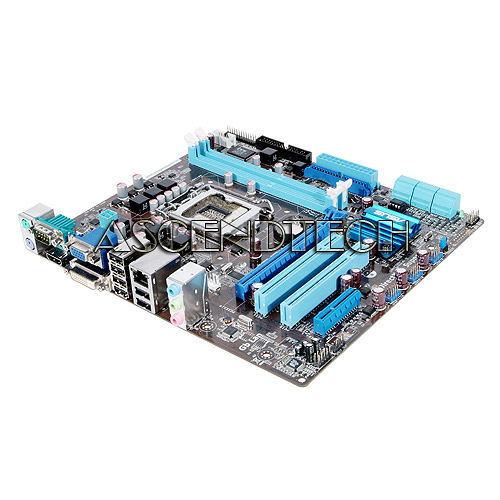

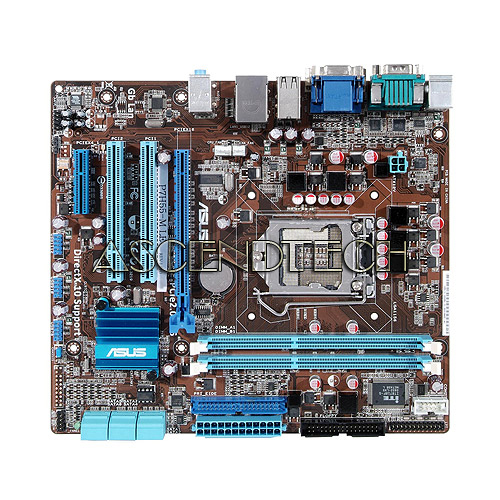

ASUS P7H55-M LE LGA1156 H55 DDR3 HDMI

The Asus P7H55-M LE Motherboard features Intel's H55 chipset supporting LGA 1156 processors. DDR3 Dual-channel Memory Architecture at speeds up to 2133MHz offer exceptional performance to gamers and enthusiasts. With the Asus P7H55-M LE Motherboard, the Asus GPU Boost overclocks the integrated GPU in real time offering additional graphic performance. Gigabit LAN offers full speed, high-bandwidth transfers. Asus EPU, a system level power saving technology, conserves energy by intelligently moderating power in real-time. HDMI output and Flexible Graphic Alternatives in a small form factor make P7H55-M LE ideal for home entertainment systems.



Specifications:

Product type:
OEM- ASUS P7H55-M LE Factory Recertified

CPU:
Intel Socket 1156 Core i7 Processor/Core i5 Processor/Core i3 Processor/ Pentium Processors
Support Intel Next Generation 32nm Multi-Core CPU

Chipset:
Intel H55

Memory:
2 x DIMM, Max. 8 GB, DDR3 1333/1066 Non-ECC,Un-buffered Memory
Dual Channel memory architecture

Expansion Slots:
1 x PCIe 2.0 x16
1 x PCIe 2.0 x4
2 x PCI

VGA:
Multi-VGA Output Support: HDMI, DVI-D and RGB Ports
Supports Microsoft DirectX 10
D-SUB with Max. Resolution : 2048 X 1536 @75Hz
DVI with Max. Resolution : 1920 X 1200 @60Hz
HDMI with Max. Resolution : 1920 X 1200 @60Hz

Storage:
Intel H55 Express Chipset built-in
1 xUltraDMA 100/66
6 xSATA 3.0 Gb/s ports 1 x Floppy Connector

LAN:
Realtek 8112L Gigabit LAN PCIe Controller

Audio:
VIA VT1708S 8-Channel High Definition Audio Codec
Support Multi-Streaming

USB:
12 USB 2.0/1.1 ports (6 Ports at Mid-Board, 6 Ports at Back Panel)

ASUS Unique Features:
ASUS CrashFree BIOS 3
Anti-Surge
ASUS EZ Flash 2
ASUS Q-Fan2
ASUS AI NET 2
ASUS MyLogo 2

Back Panel I/O Ports:
1 x DVI
1 x D-Sub
1 x PS/2 Keyboard
1 x HDMI
1 x PS/2 Mouse
1 x LAN(RJ45) port
6 x USB 2.0/1.1
1 x COM port
3 x Audio Jacks

Internal I/O Connectors:
3 x USB Connectors Support Additional 6 USB Ports
6 x SATA Connectors
1 x 24-Pin ATX Power Connector
1 x 4-Pin ATX 12V Power Connector
1 x CPU Fan Connector
1 x Chassis Fan Connector
1 x Front Panel Audio Connector
1 x System Panel Connector
1 x S/PDIF Out Header
1 x COM Connector
1 x Chassis Intrusion Connector (Optional)
1 x IDE Connector
1 x TPM Header (Optional)
1 x LPT Header

BIOS:
64 Mb Flash ROM , AMI BIOS, PnP, DMI v2.0, WfM2.0, SMBIOS v2.5, ACPI v2.0a

Form Factor:
uATX Form Factor
