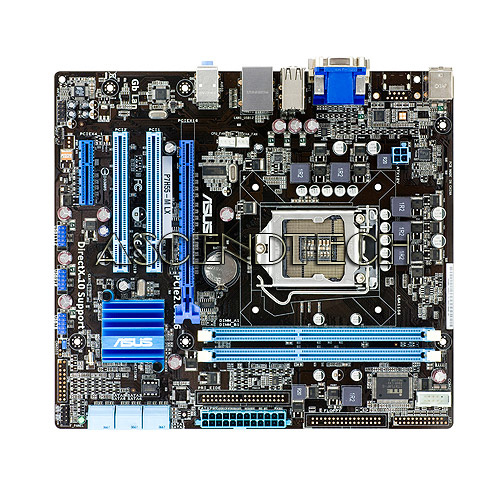

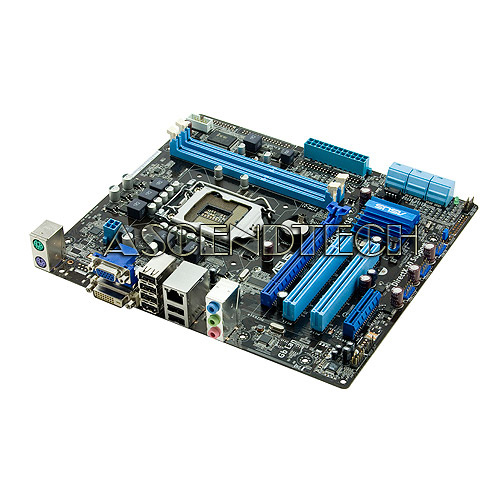

Asus P7H55-M LX LGA1156 H55 DDR3 DVI MB

ASUS P7H55-M LX LGA 1156 Intel H55 Micro ATX Intel Motherboard features Intel's H55 chipset supporting LGA 1156 processors. DDR3 Dual-channel Memory Architecture at speeds up to 2133MHz offer exceptional performance to gamers and enthusiasts. With the Asus P7H55-M LX Motherboard, the Asus GPU Boost overclocks the integrated GPU in real time offering additional graphic performance. Asus TurboV and Turbo Key overclocks your system quickly and conveniently. Gigabit LAN offers full speed, high-bandwidth transfers. Asus EPU, a system level power saving technology, conserves energy by intelligently moderating power in real-time. Flexible Graphic Alternatives in a small form factor make P7H55-M LX ideal for home entertainment systems.



Specifications:

CPU:
Intel Socket 1156 Core i7 Processor/Core i5 Processor/Core i3 Processor/ Pentium
Support Intel next generation 32nm Multi-Core CPU

Chipset:
Intel H55

Memory:
2 x DIMM, Max. 8 GB, DDR3 1333/1066 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.

Expansion Slots:
1 x PCIe 2.0 x16
1 x PCIe 2.0 x4
2 x PCI

VGA:
Multi-VGA Output Support: DVI-D and RGB Ports
Supports Microsoft DirectX 10
D-SUB with Max. Resolution : 2048 X 1536 @75Hz
DVI with Max. Resolution : 1920 X 1200 @60Hz

Storage:
Intel H55 Express Chipset built-in
6 xSATA 3.0 Gb/s ports

LAN:
Realtek 8112L Gigabit LAN PCIe controller

Audio:
VIA VT1708S 8-Channel High Definition Audio CODEC
- Support Multi-streaming

USB:
12 USB 2.0/1.1 ports (6 ports at mid-board, 6 ports at back panel)

ASUS Unique Features:
ASUS Quiet Thermal Solution
- ASUS Q-Fan 2
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
ASUS AI NET 2
ASUS Anti-Surge

Back Panel I/O Ports:
1 x DVI
1 x D-Sub
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x LAN(RJ45) port
6 x USB 2.0/1.1
3 -Channel Audio I/O

Internal I/O Connectors:
3 x USB connectors support additional 6 USB ports
6 x SATA connectors
1 x CPU Fan connector
1 x Chassis Fan connector
1 x S/PDIF Out connector
COM connector
System Panel connector
1 x 24-pin ATX Power connector
1 x 4-pin ATX 12V Power connector
1 x Front panel audio connector

BIOS:
64 Mb Flash ROM , AMI BIOS, PnP, DMI v2.0, WfM2.0, SMBIOS v2.5, ACPI v2.0a

Manageability:
WOR by Ring, WOL, PXE, PME Wake up

Form Factor:
uATX Form Factor
9.6 inch x 8.6 inch ( 24.4 cm x 22.9 cm )






CPU Support List:

Core i3 530(2.93G,L2:4M, IGPU,rev.C2,73W)

Core i3 530(2.93G,L2:4M, IGPU,rev.K0,73W)

Core i3 540(3.06G,L2:4M,IGPU, rev.C2,73W)

Core i3 540(3.06G,L2:4M,IGPU, rev.K0,73W)

Core i3 550(3.2G,L2:4M, IGPU,rev.K0)

Core i3 560(3.33G,L2:4M, IGPU,rev.K0)

Core i5 650(3.2G,L2:4M, IGPU,rev.C2,73W)

Core i5 650(3.2G,L2:4M, IGPU,rev.K0,73W)

Core i5 655K(3.2G,L2:4M, IGPU,rev.K0,73W)

Core i5 660(3.33G,L2:4M, IGPU,rev.C2,73W)

Core i5 660(3.33G,L2:4M, IGPU,rev.K0,73W)

Core i5 661(3.33G,L2:4M,IGPU, rev.C2,87W)

Core i5 661(3.33G,L2:4M,IGPU, rev.K0,87W)

Core i5 670(3.46G,L2:4M, IGPU,rev.C2,73W)

Core i5 670(3.46G,L2:4M, IGPU,rev.K0,73W)

Core i5 680(3.6G,L2:4M, IGPU,rev.K0,73W)

Core i5 750(2.66G,L3:8M, rev.B1,95W)

Core i5 750S(2.4G,L3:8M, rev.B1,82W)

Core i5 760(2.8G,L3:8M, rev.B1,95W)

Core i7 860(2.80G,L3:8M, rev.B1,95W)

Core i7 860S(2.53G,L3:8M, rev.B1,82W)

Core i7 870(2.93G,L3:8M, rev.B1,95W)

Core i7 870S(2.66G,L3:8M, rev.B1)

Core i7 875K(2.93G,L3:8M, rev.B1,)

Core i7 880(3.06G,L3:8M, rev.B1)

Pentium G6950(2.8G,L2:4M, IGPU,rev.C2,73W)

Pentium G6950(2.8G,L2:4M, IGPU,rev.K0,73W)

Pentium G6960(2.93G,L2:3M, IGPU,rev.K0,73W)
