ASUS P7H55-M PRO With 2 Bad Memory Slots

ASUS P7H55-M PRO Socket 1156 Intel H55 Express Chipset DDR3-2133 with Onboard Video / Audio & Gigabit LAN, supporting the latest Intel LGA1156 CPUs Core i7 Core i5 Core i3 including the Intel Clarkdale processors with integrated GPU, outputs 2D and 3D images without an independent graphics card. To match the sharp CPU speed, Dual-channel DDR3 memory up to the rates of 2133 (O.C) is supported. The P7H55-M Pro also supports PCI-e 2.0 for twice the speed and bandwidth which enhance the performance. Adequate VGA output ports such as HDMI and DVI fulfills your 1080P high-definition movie requirement. Overclocking features boasted by ASUS like GPU Boost, ASUS TurboV and Turbo Key utterly levels up your system. Meanwhile, ASUS also focuses on power saving and noise reduction with ASUS EPU and ASUS Fanless Design/Fan Xpert. P7H55-M Pro provides 8-channel audio as well as S/PDIF-out on back port for alternative audio solutions.

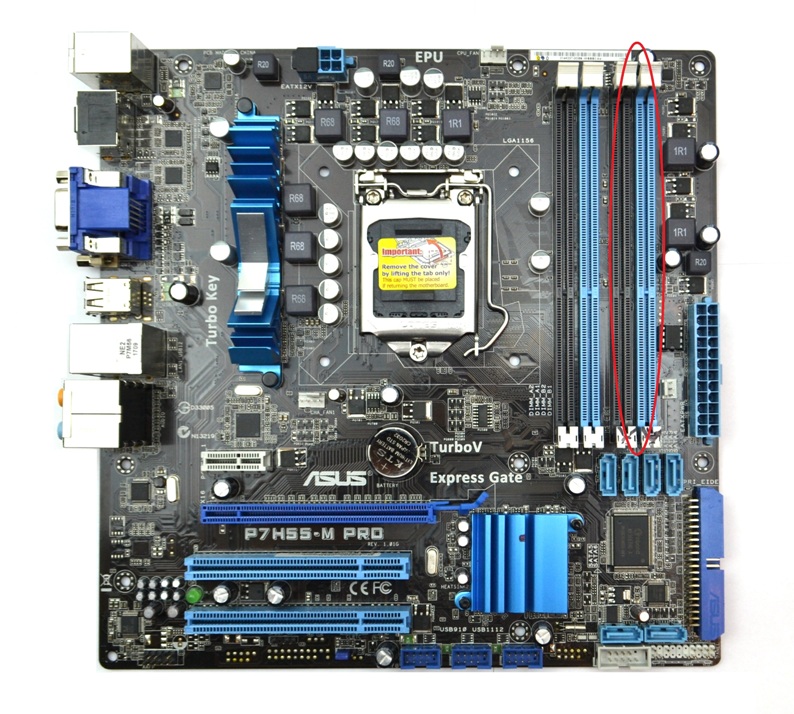

* * Please Note: This Motherboard has 2 bad Memory Slots. The two right memory slots do not work, but the two memory slots on the left work perfectly.
This is an OEM motherboard and it does not come with rear I/O shield also known as back-plate cover; this part is not needed and you can still install the board in standard ATX case.

Features:

• Manufacturer Part Number: P7H55-M PRO
• CPU: Socket 1156 Support Intel Core i7/ Core i5/ Core i3/ Pentium Processors, Support Intel Turbo Boost Technology
• Chipset: Intel H55 Express
• Memory: 2x 240pin DDR3-2133(OC)/1333/1066 DIMMs, Non-ECC/Unbuffered, Up to 8GB
• IDE/SATA: 1x ATA-133 Channel, 6x SATA2 Ports
• Video: Built-in graphics controller, w/ upto 1784MB shared memory
• Audio: Realtek 8-Channel High-Definition Audio CODEC, w/ noise filter; Support BD audio layer content protection
• LAN: On-board Gigabit Ethernet Controller, w/ ASUS Express Gate
• Ports: 12x USB 2.0 Ports(6 rear, 6 by header); 1x PS/2 Port; 1x HDMI Port; 1x DVI Port; 1x VGA Port; 1x Optical S/PDIF-Out Port; 1x RJ45 LAN Port;
• Form Factor: Micro ATX, 9.6 x 9.6 inch / 24.5 x 24.5 cm



Specifications:

* * Please Note: This Motherboard has 2 bad Memory Slots. The two right memory slots do not work, but the two memory slots on the left work perfectly.
This is an OEM motherboard and it does not come with rear I/O shield also known as back-plate cover; this part is not needed and you can still install the board in standard ATX case.
