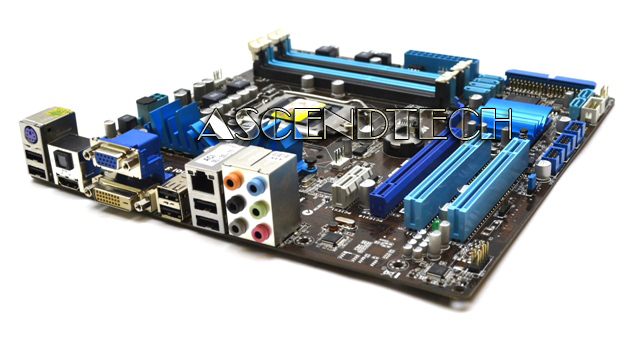

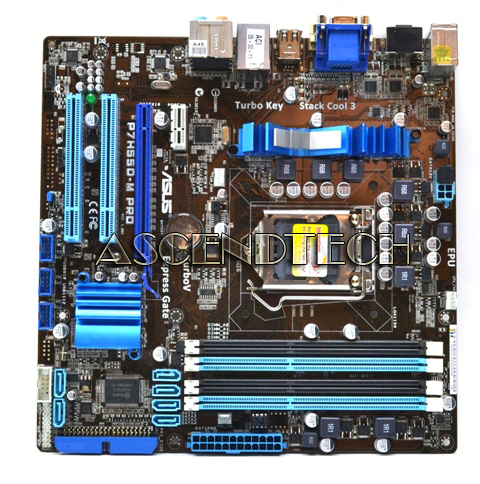

Asus P7H55D-M PRO Motherboard No I/O

Asus P7H55D-M PRO LGA1156 H55 DDR3 Motherboard. This motherboard supports the latest Intel® Lynnfield and Clarkdale processors in LGA1156 package, which has memory and PCI Express controller integrated to support 2-channel (4 DIMMs) DDR3 memory and 16 PCI Express 2.0 lanes providing great graphics performance. Intel® Lynnfield and Clarkdale processors are the most powerful and energy efficient CPUs in the world. Moreover, Intel® Clarkdale integrated Graphics Processing Unit (GPU) processors which goes with Intel® H55 chipset with VGA out can bring you to the whole new experience of the next generation VGA performance. It also provides separated 3D, 2D and Video Engines to execute different graphic control in hardware.



* Please Note: This is an OEM motherboard and it does not come with rear I/O shield also known as back-plate cover. This part is not needed and you can still install the board in standard ATX case.

Specifications:

CPU
Intel® Socket 1156 Core™ i7/Core™ i5/Core™ i3/Pentium® Processors
Supports Intel® Turbo Boost Technology

Chipset
Intel® H55

Memory
4 x DIMM, Max. 16GB, DDR3 2133(O.C.)/1333/1066 Hz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)

Expansion Slots
1 x PCIe 2.0 x16
1 x PCIe 2.0 x1 (2.5 GT/s, gray)
2 x PCI

Graphic
Integrated Graphics Processor
Multi-VGA output support : HDMI/DVI/RGB ports
Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
Supports RGB with max. resolution 2048 x 1536 @ 75 Hz
Maximum shared memory of 1748 MB

Storage
Intel® H55 chipset :
6 x SATA 3Gb/s port(s), blue
JMicron® JMB368 controller :
1 x UltraDMA 133/100/66 for up to 2 PATA devices , navy blue

LAN
Realtek® 8112L, 1 x Gigabit LAN Controller(s), featuring AI NET2

Audio
Realtek® ALC892 8-Channel High Definition Audio CODEC *1
Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
Blu-ray audio layer Content Protection
ASUS Noise Filter
Optical S/PDIF out port(s) at back panel

USB Ports
12 x USB 2.0 port(s) (6 at back panel, black+blue, 6 at mid-board)

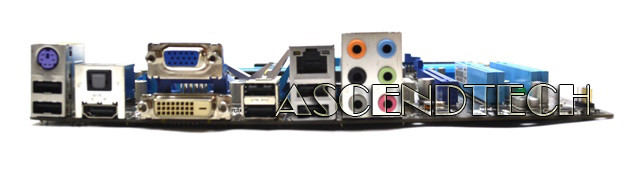

Back Panel I/O Ports
1 x PS/2 keyboard (purple)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
6 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s)

Internal I/O Connectors
3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
1 x IDE connector(s)
1 x COM port(s) connector(s)
6 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s) (4 -pin)
1 x Power Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)

BIOS
64 Mb Flash ROM , SPI, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3

Form Factor
uATX Form Factor
9.6 inch x 9.6 inch ( 24.5 cm x 24.5 cm )
