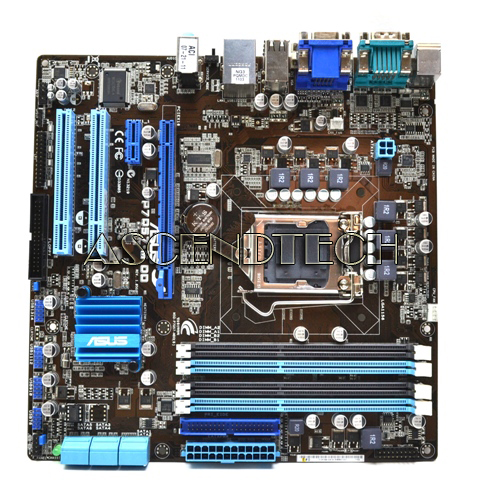

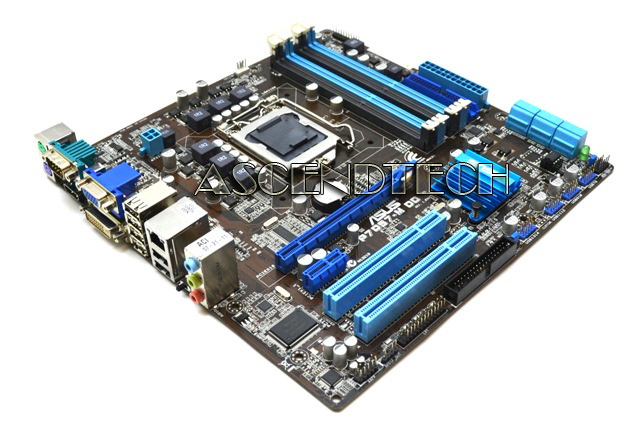

Asus P7Q57-M DO DDR3 Motherboard No I/O

Asus P7Q57-M DO LGA1156 Q57 DDR3 Motherboard. This motherboard supports the latest Intel® Lynnfield / Clarkdale processors in LGA1156 package which has memory and PCI Express controller integrated to support 2-channel (4 DIMMs) DDR3 memory and 16 PCI Express 2.0 lanes providing great graphics performance. Intel® Lynnfield processor is one of the most powerful and energy efficient CPU in the world. The Intel® Q57 Express Chipset continues to push innovation with a new architecture designed to deliver quality, performance, and industry-leading I/O technologies on platforms powered by the Intel® Core™ i7-800 processor series, Intel® Core™ i5 processors, and Intel® Core™ i3 processors.



* Please Note: This is an OEM motherboard and it does not come with rear I/O shield also known as back-plate cover. This part is not needed and you can still install the board in standard ATX case.

Specifications:

CPU
Intel® Socket 1156 Core™ i7 Processor/Core™ i5 Processor/
Supports Intel Turbo Boost Technology

Chipset
Intel® Q57 Express Chipset

Memory
4 x DIMM, Max. 16 GB, DDR3 1600(O.C.)/1333/1066 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)

Expansion Slots
1 x PCIe 2.0 x16
1 x PCIe 2.0 x1
2 x PCI

VGA
D-SUB Max. resolution : 2048 X 1536 X 32Bpp @75Hz
DVI Max. resolution : 1920 X 1200 x 32Bpp @60Hz
HDMI Max. resolution : 1920 X 1080 @60Hz

Storage
Intel® Q57 Express Chipset
6 xSATA 3.0 Gb/s ports
Intel Matrix Storage Technology Support RAID 0,1,5,10
Southbridge
1 xUltraDMA 133/100
1 x Floppy connector

LAN
Intel WG82578DM C0 Gigabit LAN

Audio
Raltek ALC887 6-Channel High Definition Audio CODEC
Supports Jack-Detection, Multi-streaming, Anti-pop unction

USB Ports
14 USB 2.0/1.1 ports (8 ports at mid-board, 6 ports at back panel)

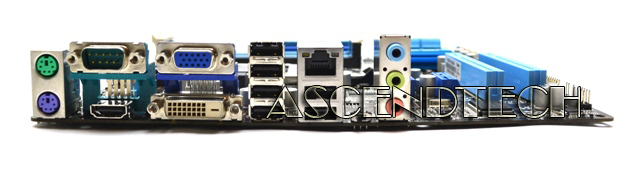

Back Panel I/O Ports
1 x DVI
1 x VGA
1 x HDMI
1 x LAN(RJ45) port
6 x USB 2.0/1.1
1 x COM port
6 -Channel Audio I/O
1 x PS/2 Keyboard (Purple)
1 x PS/2 mouse port (Green)

Internal I/O Connectors
4 x USB connectors support additional 8 USB ports
1 x IDE connector
1 x TPM connector
6 x SATA connectors
1 x CPU Fan connector
1 x Chassis Fan connector
1 x S/PDIF Out connector
1 x Front panel audio connector
1 x Chassis intrusion connector
1 x 24-pin ATX Power connector
1 x 4-pin ATX 12V Power connector
1 x COM connector
1 x LPT connector

BIOS
64 Mb Flash ROM , AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3

Form Factor
uATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
