ASUS P8B-X 2xLAN 1xPCIe X16 1xPCIe X8+X1
Description

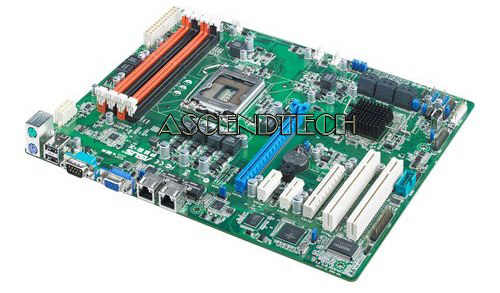

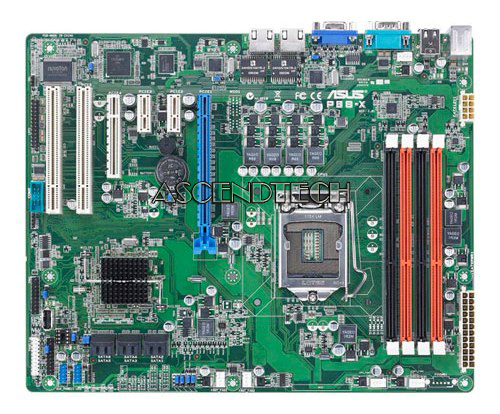

ASUS P8B-X LGA 1155 Intel C202 ATX Intel Xeon E3 Server Motherboard. P8B-X is the latest ASUS UP serverboard designed as Bromolow platform entry model, featuring an Intel® C202 PCH chipset, with support of leading-edge architecture, high expandability, dual Intel server class GbE and cost-effective solutions, the P8B-X is ideal for SMB, web, print/file and other entry-level applications.
Features:
Up-to-date LGA1155 Socket Platform for Outstanding Performance
P8B-X supports wide-range CPUs to cover different levels of market segment including Intel® Xeon® E3-1200 processor family, Intel Core i3-2100 Processor Family, and Intel CoreTM G8x0/G6x0 Processor Family. The new platform architecture use a LGA1155 package with memory and PCI Express controllers integrated to support dual-channel DDR3 ECC memory and 20 PCI Express 2.0 lanes. The support of ECC (Error Correcting Code) memory improves data integrity to offer higher reliability. Provision of more PCI Express 2.0 lanes benefits various server applications. Most important, the motherboard provides significant performance improvement around 25% over previous generation.
Dual Intel Server Class GbE, IPv6 Support Ready
With the fast explode of internet traffic, the P8B-X equipped Intel® GbE LAN controllers with IPv6 support and backward compatible with IPv4 protocol. With IPv6 ready support, customer can deploy new systems seamlessly work with existing Ethernet environment. With teaming function which supports Fault Tolerance technology. Also, the Load Balance handles network traffics delicately which is good at enhancing network functionality.
Most Cost-saving Solutions for Customers
The P8B-X focus on easy-available chassis, standard ATX form factor, power supply, and UDIMM memory with desktop MB, so that customers can upgrade to the new generation platform only with a new serverboard and protect their existing investment. Meanwhile, the product is power saving with low power-consuming Intel Xeon processor, and therefore requires lower thermal solution cost.
Wide Range OS Support
The P8B-X supports wide-range mainstream server and client OS, including Windows 2008 R2, Windows 7, Cent OS, redhat, SuSE Linux and so on to meet the demand of different customers.
UEFI BIOS Support
To meet the trend of large capacity hard disk drive, P8B-X equips UEFI BIOS. The UEFI BIOS supports the latest GPT (GUID Partition Table) partition format and backward compatible with legacy MBR (Master Boot Record) partition format, users can easily and flexibly manage very large capacity hard disk drive or partition, ex: single hard disk or single partition larger than 2.2TB.
Specifications:
| Processor / System Bus | 1 x Socket LGA1155 Intel Xeon E3-1200 Processor Family Intel Xeon E3-1200 v2 Processor Family Intel Core i3-2100 Processor Family Intel Pentium G8x0/G6x0 Intel Celeron G5x0/G4x0 |
| Core Logic | Intel C202 Chipset |
| Memory | Total Slots : 4 (2-channel) Capacity : Maximum up to 32GB UDIMM Memory Type : DDR3, 1066/1333/1600, UDIMM, with ECC ( DDR3 1600 can only be supported with Intel® Xeon® E3-1200 v2 Processor) |
| Expansion Slots | Total Slot : 6 Slot Location 1 : PCI 32bit/33MHz Slot Location 2 : PCI 32bit/33MHz Slot Location 3 : PCI-E x8 (Gen2 X4 Link) Slot Location 4 : PCI-E x1 Slot Location 5 : PCI-E x1 Slot Location 6 : PCI-E x16 |
| Form Factor | ATX (12"x9.6") |
| ASUS Features | FAN speed control Rack Ready (Rack and Pedestal dual use) |
| Storage | SATA Controller : Intel® C202 6 x SATA2 3Gb/s ports Intel® Rapid Storage Technology(RST) (For Windows Only) (Support Software RAID 0, 1, 5, 10 ) |
| Networking | 2 x Intel® 82574L |
| Graphic | XGI® Z9s with 64MB VRAM |
| On Board I/O | 1 x TPM header 1 x PSU Power Connector , 24-pin ATX power connector + 8-pin ATX 12V power connector 1 x USB connector 2 x USB pin header , Up to 4 Devices 5 x Fan Header , 4pin 1 x Chassis Intruder 1 x Serial Port Header |
| Back I/O Ports | 1 x External Serial Port 2 x External USB Port 1 x VGA Port 2 x RJ-45 1 x PS/2 KB/Mouse |
| Environment | Operation temperature: 10°C ~ 35°C Non operation temperature: -40°C ~ 70°C Non operation humidity: 20% ~ 90% ( Non condensing) |
| Monitoring | CPU Temperature Fan RPM |
CPU Support List:
| CPU | Since PCB | Since BIOS | Note |
| Intel Core i3-2100 (3.1G,L3:3M,iGPU,2C,rev.Q0) | 1.02 | 0808 | Not Support the Integrated Graphics Controller |
| Intel Core i3-2100T (2.5G,L3:3M,iGPU,2C,rev.Q0) | 1.02 | 0815 | Not Support the Integrated Graphics Controller |
| Intel Core i3-2105 (3.1G,L3:3M,iGPU,2C,rev.D2) | 1.02 | 0815 | Not Support the Integrated Graphics Controller |
| Intel Core i3-2120 (3.3G,L3:3M,iGPU,2C,rev.Q0) | 1.02 | 0808 | Not Support the Integrated Graphics Controller |
| Intel Core i3-2120T (2.6G,L3:3M,iGPU,2C) | 1.02 | 0815 | Not Support the Integrated Graphics Controller |
| Intel Core i3-2125 (3.3G,L3:3M,iGPU,2C) | 1.02 | 0815 | Not Support the Integrated Graphics Controller |
| Intel Core i3-2130 (3.4G,L3:3M,iGPU,2C) | 1.02 | 0815 | Not Support the Integrated Graphics Controller |
| Intel Celeron G440 (1.6G,35W,32nm,1MB,1C) | 1.02 | 0815 | Not Support the Integrated Graphics Controller |
| Intel Celeron G460 (1.8G,35W,32nm,1.5MB,1C) | 1.02 | 0902 | Not Support the Integrated Graphics Controller |
| Intel Celeron G530 (2.4G,65W,32nm,2MB,2C) | 1.02 | 0815 | Not Support the Integrated Graphics Controller |
| Intel Celeron G530T (2.0G,35W,32nm,2MB,2C) | 1.02 | 0815 | Not Support the Integrated Graphics Controller |
| Intel Celeron G540 (2.5G,65W,32nm,2MB,2C) | 1.02 | 0815 | Not Support the Integrated Graphics Controller |
| Intel Celeron G540T (2.1G,35W,32nm,2MB,2C) | 1.02 | 2107 | Not Support the Integrated Graphics Controller |
| Intel Celeron G550 (2.6G,65W,32nm,2MB,2C) | 1.02 | 2107 | Not Support the Integrated Graphics Controller |
| Intel Pentium G620 (2.6G,65W,32nm,3MB,2C,rev.Q0) | 1.02 | 0808 | Not Support the Integrated Graphics Controller |
| Intel Pentium G620T (2.2G,35W,32nm,3MB,2C,rev.Q0) | 1.02 | 0815 | Not Support the Integrated Graphics Controller |
| Intel Pentium G630 (2.7G,65W,32nm,3MB,2C) | 1.02 | 0815 | Not Support the Integrated Graphics Controller |
| Intel Pentium G630T (2.3G,35W,32nm,3MB,2C) | 1.02 | 2107 | Not Support the Integrated Graphics Controller |
| Intel Pentium G640 (2.8G,65W,32nm,3MB,2C) | 1.02 | 2107 | Not Support the Integrated Graphics Controller |
| Intel Pentium G640T (2.4G,35W,32nm,3MB,2C) | 1.02 | 2107 | Not Support the Integrated Graphics Controller |
| Intel Pentium G840 (2.8G,65W,32nm,3MB,2C,rev.Q0) | 1.02 | 0808 | Not Support the Integrated Graphics Controller |
| Intel Pentium G850 (2.9G,65W,32nm,3MB,2C,rev.Q0) | 1.02 | 0808 | Not Support the Integrated Graphics Controller |
| Intel Pentium G860 (3.0G,65W,32nm,3MB,2C,rev.Q0) | 1.02 | 0815 | Not Support the Integrated Graphics Controller |
| Intel Pentium G860T (2.6G,65W,32nm,3MB,2C,rev.Q0) | 1.02 | 2107 | Not Support the Integrated Graphics Controller |
| Intel Pentium G870 (3.1G,65W,32nm,3MB,2C,rev.Q0) | 1.02 | 2107 | Not Support the Integrated Graphics Controller |
| Intel Xeon E3-1220 (3.1G,1333,8MB,4C,D2) | 1.02 | 0705 | |
| Intel Xeon E3-1220 v2 (3.1G,L3:8M,4C,69W) | 1.02 | 2107 | |
| Intel Xeon E3-1220L (2.2G,1333,3MB,2C,Q0) | 1.02 | 0705 | |
| Intel Xeon E3-1225 (3.1G,1333,6MB,4C,D2) | 1.02 | 0705 | Not Support the Integrated Graphics Controller |
| Intel Xeon E3-1225 v2 (3.2G,L3:8M,4C,77W) | 1.02 | 2107 | |
| Intel Xeon E3-1230 (3.2G,1333,8MB,4C,D2) | 1.02 | 0705 | |
| Intel Xeon E3-1230 v2 (3.3G,L3:8M,4C,4C,HT,69W) | 1.02 | 2107 | |
| Intel Xeon E3-1235 (3.2G,1333,8MB,4C,D2) | 1.02 | 0705 | Not Support the Integrated Graphics Controller |
| Intel Xeon E3-1240 (3.3G,1333,8MB,4C,D2) | 1.02 | 0705 | |
| Intel Xeon E3-1240 v2 (3.4G,L3:8M,4C,4C,HT,69W) | 1.02 | 2107 | |
| Intel Xeon E3-1245 (3.3G,1333,8MB,4C,D2) | 1.02 | 0705 | Not Support the Integrated Graphics Controller |
| Intel Xeon E3-1245 v2 (3.4G,L3:8M,4C,4C,HT,77W) | 1.02 | 2107 | |
| Intel Xeon E3-1260L (2.4G,1333,8MB,4C,D2) | 1.02 | 0705 | |
| Intel Xeon E3-1265L v2 (2.5G,L3:8M,4C,HT,45W) | 1.02 | 2107 | |
| Intel Xeon E3-1270 (3.4G,1333,8MB,4C,D2) | 1.02 | 0705 | |
| Intel Xeon E3-1270 v2 (3.5G,L3:8M,4C,4C,HT,69W) | 1.02 | 2107 | |
| Intel Xeon E3-1275 (3.4G,1333,8MB,4C,D2) | 1.02 | 0705 | Not Support the Integrated Graphics Controller |
| Intel Xeon E3-1275 v2 (3.5G,L3:8M,4C,4C,HT,77W) | 1.02 | 2107 | |
| Intel Xeon E3-1280 (3.5G,1333,8MB,4C,D2) | 1.02 | 0705 | |
| Intel Xeon E3-1280 v2 (3.6G,L3:8M,4C,4C,HT,69W) | 1.02 | 2107 | |
| Intel Xeon E3-1290 (3.6G,1333,8MB,4C,D2) | 1.02 | 0815 | |
| Intel Xeon E3-1290 v2 (3.7G,L3:8M,4C,4C,HT,87W) | 1.02 | 2107 |
