ASUS P8H61-I R2.0 LGA1155 DDR3 Mini ITX

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

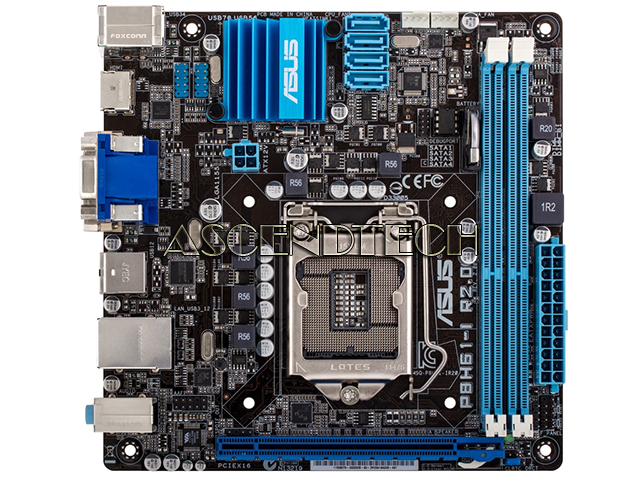

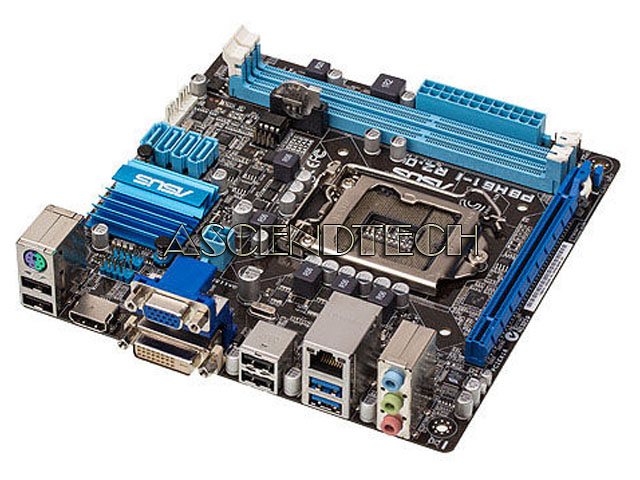

Asus P8h61-I R2.0 Lga1155 Ddr3 Mini Itx. Model: P8h61-I R2.0 Lga 1155
  Enlarge
Asus P8h61-I R2.0 Lga1155 Ddr3 Mini Itx. Model: P8h61-I R2.0 Lga 1155
Asus P8h61-I R2.0 Lga1155 Ddr3 Mini Itx. Model: P8h61-I R2.0 Lga 1155
Asus P8h61-I R2.0 Lga1155 Ddr3 Mini Itx. Model: P8h61-I R2.0 Lga 1155
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB1155P8H61IR20
Brand Asus / Asustek Computer
Model P8H61-I R2.0 LGA 1155
Category Intel Lga1155 Motherboard

Description

ASUS P8H61-I R2.0 LGA 1155 Intel H61 DDR3 HDMI USB 3.0 Mini ITX Motherboard. Designed for an HTPC or a booksize PC, the Asus P8H61-I R2.0 Motherboard comes in a mini ITX form factor while incorporating uncompromised connectivity, expandability, and a full set of features. Based on the Intel H61 Express chipset, it works flawlessly with the second- and third-generation Intel Core processors in an LGA 1155 package. An array of in-house features and technology ensures a new level of user experience in your PC build and system tuning. And with proven Asus reliability and stability, you'll see and feel the difference in your everyday computing.





Features:

EPU
The Asus EPU (Energy Processing Unit) provides total system power management by detecting current PC loadings and intelligently moderating power usage for critical PC components in real-time – helping save power and money!

ASUS GPU Boost
GPU Boost accelerates the integrated GPU for extreme graphics performance. The user-friendly interface facilitates flexible frequency adjustments. It easily delivers stable system-level upgrades for every use.

ASUS UEFI BIOS (EZ MODE)
The brand-new EFI BIOS offers a user-friendly interface that goes beyond traditional keyboard-only BIOS, to enable more flexible and convenient mouse controls. Users can easily navigate the new EFI BIOS with the same smoothness as their operating system. The exclusive EZ Mode displays frequently-accessed setup info, while the Advanced Mode is for experienced performance enthusiasts that demand far more intricate system settings.

ASUS ANTI-SURGE PROTECTION
This special design prevents expensive devices and the motherboard from damage caused by power surges from switching power supplies (PSU).

USB 3.0 SUPPORT
Experience ultra-fast data transfers at 4.8Gbps with USB 3.0, the latest connectivity standard. Built to connect easily with next-generation components and peripherals, USB 3.0 transfers data ten times faster and is also backward compatible with USB 2.0 components.

EIGHT-CHANNEL AUDIO CODEC
The onboard eight-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, a jack-sensing feature, retasking functions, and multi-streaming technology.





Specifications:

BrandASUS
ModelP8H61-I R2.0
CPU Socket TypeLGA 1155
CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1155)
Supported CPU TechnologiesTurbo Boost Technology 2.0
ChipsetIntel H61
Number of Memory Slotsx2 240-Pin
Memory StandardDDR3 2200*(*O.C.) / 2000* / 1800* / 1600* / 1333 / 1066
Maximum Memory Supported16GB
Channel SupportedDual Channel
Expansion Slotsx1 PCI-Express 3.0 x16
SATA 3GB/s x4 SATA 3GB/s
Onboard Video ChipsetSupported only by CPU with integrated graphics
Audio Channels8 Channels
LAN ChipsetRealtek 8111F
Max LAN Speed10/100/1000Mbps

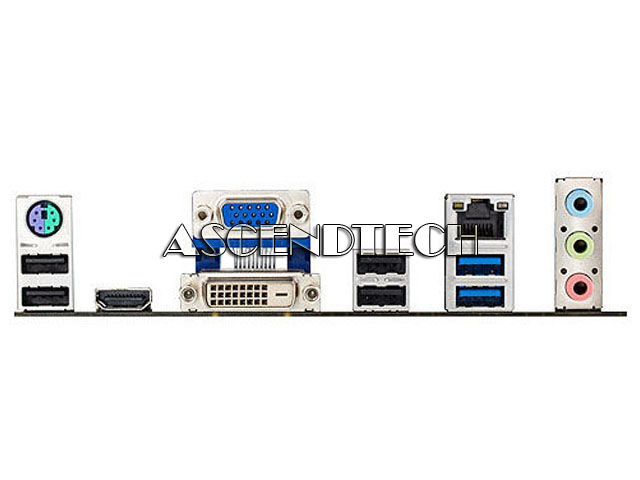

Rear Panel Portsx1 PS/2 Keyboard / Mouse Port
x1 D-Sub / VGA Port
x1 DVI Port
x1 HDMI Port
x2 USB 3.0 Ports
x4 USB 2.0 Ports
x3 Audio Ports
Internal I/O Connectorsx4 USB 2.0 Connectors
x1 CPU Fan connector(s) (x1 4 -pin)
x1 Chassis Fan connector(s) (x1 4 -pin)
x1 S/PDIF out header(s)
x1 24-pin EATX Power connector(s)
x1 4-pin ATX 12V Power connector(s)
x1 Front panel audio connector(s) (AAFP)
x1 Internal speaker connector(s)
x1 System panel(s)
x1 Clear CMOS jumper(s)
Form FactorMini ITX
Power Pin24 Pin
