ASUS P8H61-M LE/CSM LGA1155 H61 DDR3

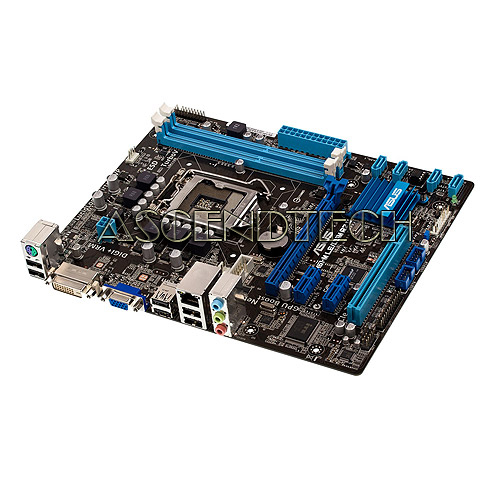

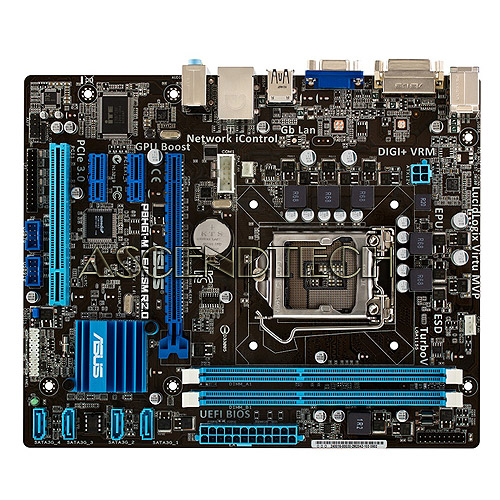

ASUS P8H61-M LE/CSM LGA 1155 Intel H61 Micro ATX Intel Motherboard. This motherboard supports the Intel second generation Core i7 / Core i5 / Core i3 processors in LGA1155 package with memory and PCI Express controllers integrated to support 2-channel (2 DIMMs) DDR3 memory and 16 PCI Express 2.0 lanes. This provides great graphics performance. Intel second generation Core i7 / Core i5 / Core i3 processors are among the most powerful and energy efficient CPUs in the world.

Specifications:

CPU
Intel Socket 1155 for 3rd/2nd Generation Core i7/Core i5/Core i3/Pentium dual-core/Pentium/Celeron Processors
Supports Intel 22 nm CPU

Chipset
Intel H61(B3)

Memory
2 x DIMM, Max. 16GB, DDR3 2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)

Graphic
Integrated Graphics Processor
Multi-VGA output support : ports
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 2048 x 1536 @ 75 Hz
Supports Intel HD Graphics, Quick Sync Video

Expansion Slots
1 x PCIe 3.0/2.0 x16
2 x PCIe 2.0 x1
1 x PCI

Storage
Intel H61(B3) chipset :
4 x SATA 3Gb/s port(s), blue

LAN
Realtek 8111F, 1 x Gigabit LAN Controller(s)

USB Ports
Intel H61(B3) chipset :
10 x USB 2.0/1.1 port(s) (6 at back panel, black, 4 at mid-board)

Overclocking Features
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)

Special Features
ASUS EPU :
- EPU
ASUS Digital Power Design :
- Industry leading Digital 3 + 1 + 1 Phase Power Design
- ASUS DIGI+ VRM Utility
TurboV
GPU Boost
ASUS Exclusive Features :
- Ai Charger
- Anti-Surge
- Low EMI Solution
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- Disk Unlocker
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS EZ Flash 2
- ASUS MyLogo 2
100% All High-quality Conductive Polymer Capacitors

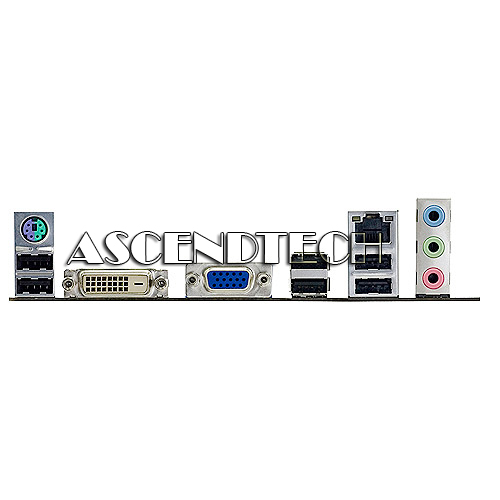

Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI
1 x D-Sub
1 x LAN (RJ45) port(s)
6 x USB 2.0
3 x Audio jack(s)

Internal I/O Ports
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x COM port(s) connector(s)
4 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x parallel port connector(s)
1 x Front panel connector(s)
1 x System panel(s)

BIOS
64 Mb Flash ROM, UEFI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 PrintScreen Function, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability
WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE

Form Factor
M-ATX Form Factor
9.6 inch x 7.8 inch ( 24.4 cm x 19.8 cm )

CPU Support List:

Core i3-2100 (3.1G,L3:3M,iGPU,2C,rev.Q0)

Core i3-2100T (2.5G,L3:3M,iGPU,2C,rev.Q0)

Core i3-2105 (3.1G,L3:3M,iGPU,2C,rev.D2)

Core i3-2120 (3.3G,L3:3M,iGPU,2C,rev.Q0)

Core i3-2120T (2.6G,L3:3M,iGPU,2C)

Core i3-2125 (3.3G,L3:3M,iGPU,2C)

Core i3-2130 (3.4G,L3:3M,iGPU,2C)

Core i3-3210 (3.2G,L3:3M,iGPU,GT1,55W,2C,rev.P0)

Core i3-3220 (3.3G,L3:3M,iGPU,2C,rev.E1)

Core i3-3220 (3.3G,L3:3M,iGPU,2C,rev.N0)

Core i3-3220 (3.3G,L3:3M,iGPU,2C,rev.P0)

Core i3-3220T (2.8G,L3:3M,iGPU,2C,rev.P0)

Core i3-3240 (3.4G,L3:3M,iGPU,2C,rev.P0)

Core i3-3240T (2.9G,L3:3M,iGPU,2C,rev.P0)

Core i5-2300 (2.8G,L3:6M,iGPU,4C,rev.D2)

Core i5-2310 (2.9G,L3:6M,iGPU,4C,rev.D2)

Core i5-2320 (3.0G,L3:6M,iGPU,4C,rev.D2)

Core i5-2380P (3.1G,L3:6M,non-iGPU,4C,rev.D2)

Core i5-2390T (2.7G,L3:3M,iGPU,2C,rev.Q0)

Core i5-2400 (3.1G,L3:6M,iGPU,4C,rev.D2)

Core i5-2400S (2.5G,L3:6M,iGPU,4C,rev.D2)

Core i5-2405S (2.5G,L3:6M,iGPU,4C,rev.D2)

Core i5-2450P (3.2G,L3:6M,non-iGPU,4C,rev.D2)

Core i5-2500 (3.3G,L3:6M,iGPU,4C,rev.D2)

Core i5-2500K (3.3G,L3:6M,iGPU,4C,rev.D2)

Core i5-2500S (2.7G,L3:6M,iGPU,4C,rev.D2)

Core i5-2500T (2.3G,L3:6M,iGPU,4C,rev.D2)

Core i5-2550K (3.4G,L3:6M,non-iGPU,4C,rev.D2)

Core i5-3330 (3.0G,L3:6M,iGPU,4C,VT-d,77W,rev.N0)

Core i5-3350P (3.1G,L3:6M,4C,69W,rev.E1)

Core i5-3350P (3.1G,L3:6M,4C,69W,rev.N0)

Core i5-3450 (3.1G,L3:6M,iGPU,4C,VT-d,77W,rev.E1)

Core i5-3450S (2.8G,L3:6M,iGPU,4C,VT-d,65W,rev.E1)

Core i5-3470 (3.2G,L3:6M,iGPU,4C,VT-d,77W,rev.N0)

Core i5-3470S (2.9G,L3:6M,iGPU,4C,VT-d,65W,rev.N0)

Core i5-3470T (2.9G,L3:3M,iGPU,DC,VT-d,35W,rev.L1)

Core i5-3475S (2.9G,L3:6M,iGPU,GT2,4C,VT-d,65W,rev.E1)

Core i5-3550 (3.3G,L3:6M,iGPU,4C,VT-d,77W,rev.E1)

Core i5-3550S (3.0G,L3:6M,iGPU,4C,VT-d,65W,rev.E1)

Core i5-3570K (3.4G,L3:6M,iGPU,4C,77W,rev.E1)

Core i5-3570T (2.3G,L3:6M,iGPU,4C,VT-d,45W,rev.E1)

Core i7-2600 (3.4G,L3:8M,iGPU,4C,rev.D2)

Core i7-2600K (3.4G,L3:8M,iGPU,4C,rev.D2)

Core i7-2600S (2.8G,L3:8M,iGPU,4C,rev.D2)

Core i7-2700K (3.5G,L3:8M,iGPU,4C,rev.D2)

Core i7-3770 (3.4G,L3:8M,iGPU,4C,HT.VT-d,77W,rev.E1)

Core i7-3770K (3.5G,L3:8M,iGPU,4C,HT,77W,rev.E1)

Core i7-3770S (3.1G,L3:8M,iGPU,GT2,4C,HT,VT-d,65W,rev.E1)

Core i7-3770T (2.5G,L3:8M,iGPU,GT2,4C,HT,VT-d,45W,rev.E1)

Intel Celeron G1610 (2.6GHz,55W,L3:2MB,2C,rev.P0)

Intel Celeron G1610T (2.3GHz,35W,L3:2MB,2C,rev.P0)

Intel Celeron G1620 (2.7GHz,55W,L3:2MB,2C,rev.P0)

Intel Celeron G440 (1.6G,35W,32nm,1MB,1C)

Intel Celeron G460 (1.8G,35W,32nm,1.5MB,1C)

Intel Celeron G465 (1.9G,35W,32nm,1.5MB,1C)

Intel Celeron G530 (2.4G,65W,32nm,2MB,2C)

Intel Celeron G530T (2.0G,35W,32nm,2MB,2C)

Intel Celeron G540 (2.5G,65W,32nm,2MB,2C)

Intel Celeron G540T (2.1G,35W,32nm,2MB,2C)

Intel Celeron G550 (2.6G,65W,32nm,2MB,2C)

Intel Celeron G550T (2.2G,35W,32nm,2MB,2C)

Intel Celeron G555 (2.7G,65W,32nm,2MB,2C)

Intel Pentium G2010 (2.8GHz,55W,22nm,3MB,2C,rev.P0)

Intel Pentium G2020 (2.9GHz,55W,22nm,3MB,2C,rev.P0)

Intel Pentium G2020T (2.5GHz,35W,22nm,GT1,L3:3MB,2C,rev.P0)

Intel Pentium G2100T (2.6GHz,35W,22nm,3MB,2C,rev.P0)

Intel Pentium G2120 (3.1GHz,55W,22nm,3MB,2C,rev.P0)

Intel Pentium G2130 (3.2GHz,55W,22nm,3MB,2C,rev.P0)

Intel Pentium G620 (2.6G,65W,32nm,3MB,2C,rev.Q0)

Intel Pentium G620T (2.2G,35W,32nm,3MB,2C,rev.Q0)

Intel Pentium G630 (2.7G,65W,32nm,3MB,2C)

Intel Pentium G630T (2.3G,35W,32nm,3MB,2C)

Intel Pentium G640 (2.8G,65W,32nm,3MB,2C)

Intel Pentium G640T (2.4G,35W,32nm,3MB,2C)

Intel Pentium G645 (2.9G,65W,32nm,3MB,2C)

Intel Pentium G645T (2.5G,35W,32nm,3MB,2C)

Intel Pentium G840 (2.8G,65W,32nm,3MB,2C,rev.Q0)

Intel Pentium G850 (2.9G,65W,32nm,3MB,2C,rev.Q0)

Intel Pentium G860 (3.0G,65W,32nm,3MB,2C,rev.Q0)

Intel Pentium G860T (2.6G,65W,32nm,3MB,2C,rev.Q0)

Intel Pentium G870 (3.1G,65W,32nm,3MB,2C,rev.Q0)

Intel Xeon E3-1230 (3.2G,1333,L3:8MB,4C,D2)
