ASUS P8H61-M LE/CSM R2.0 LGA1155 DDR3 MB

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

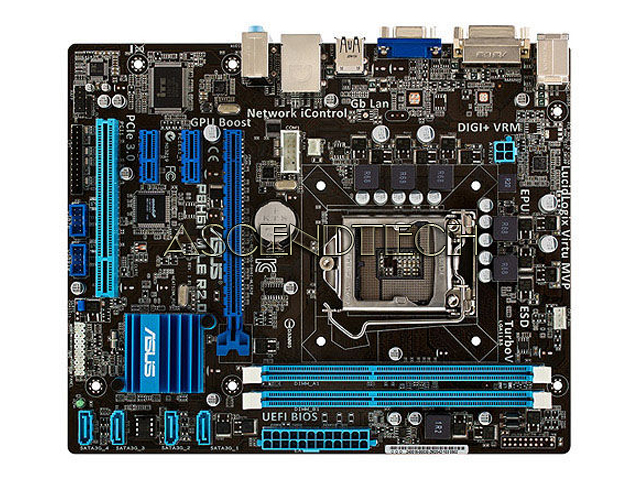

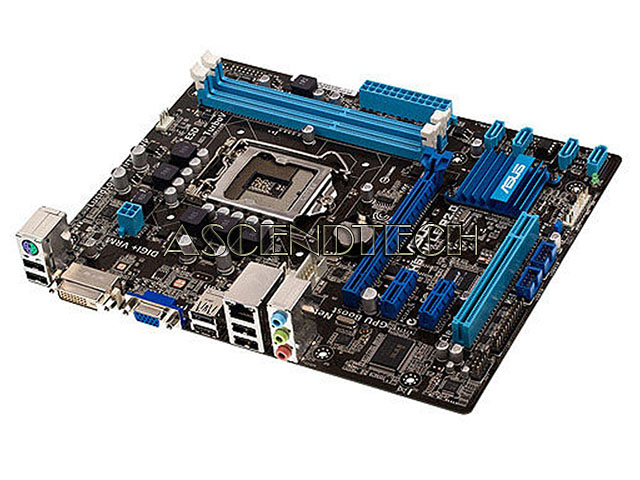

Asus P8h61-M Le/Csm R2.0 Lga1155 Ddr3 Mb. Model: 90-Mibj600-G0aay0gz
  Enlarge
Asus P8h61-M Le/Csm R2.0 Lga1155 Ddr3 Mb. Model: 90-Mibj600-G0aay0gz
Asus P8h61-M Le/Csm R2.0 Lga1155 Ddr3 Mb. Model: 90-Mibj600-G0aay0gz
Asus P8h61-M Le/Csm R2.0 Lga1155 Ddr3 Mb. Model: 90-Mibj600-G0aay0gz
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBP8H61MLECSMR2
Brand Asus / Asustek Computer
Model 90-MIBJ600-G0AAY0GZ
Category Intel Lga1155 Motherboard

Description

ASUS P8H61-M LE/CSM R2.0 Rev. 1.03 Socket LGA 1155 Intel H61 DDR3 Micro ATX Motherboard. With its unrivalled quality and full spectrum of features, the Asus P8H61-M LE/CSM R2.0 Motherboard is a great foundation for your next powerhouse. Based on the Intel H61 Express chipset, it works flawlessly with the second- and third-generation Intel Core processors in an LGA 1155 package. An array of in-house features and technology ensures a new level of user experience in your PC build and system tuning. And with proven Asus reliability and stability, you'll see and feel the difference in your everyday computing.

Asus Model Number: P8H61-M LE/CSM R2.0
Asus Part Number: 90-MIBJ600-G0AAY0GZ

Please Note: This motherboard comes with Rear I/O Shield Only! No Cables, No Manuals or any other Accessories included!



Features:

DIGI+ VRM DIGITAL POWER DESIGN
Asus motherboards using the Intel H61 chipset employ precise digital voltage regulation for the CPU, called DIGI+ VRM (Voltage Regulation Modules) digital power design. The CPU voltage and VRM frequency are adjusted via either carefully developed automated modes, or by using user-defined profiles. The effect is that DIGI+ VRM technology ensures greater energy efficiency and the best possible PC stability. Boosted by world-renowned Asus quality, it creates an ideal computing platform for a diverse range of applications, from gaming to multimedia or office work and heavy multitasking. Engineered and tested to assure unmitigated performance, Asus H61 boards with DIGI+ VRM remain efficient and stability, for reliable application in every scenario.

EPU
Tap into the world's first real-time PC power-saving chip through a simple onboard switch or the AI Suite II utility. Get total system-wide energy optimization by automatically detecting current PC loadings and intelligently moderating power consumption. This also reduces fan noise and extends component longevity!

TURBOV
Feel the adrenaline rush of real-time OC – now a reality with Asus TurboV. This easy OC tool allows you to overclock without exiting or rebooting the OS, and its user-friendly interface makes overclocking just a few clicks away. Moreover, the Asus OC profiles in TurboV provides the best OC settings in different scenarios.

ASUS GPU BOOST
GPU Boost accelerates the integrated GPU for extreme graphics performance. The user-friendly interface facilitates flexible frequency adjustments. It easily delivers stable system-level upgrades for every use.

ASUS UEFI BIOS (EZ MODE)
Asus UEFI BIOS offers the first mouse-controlled graphical BIOS designed with selectable modes, providing a user-friendly interface that goes beyond the traditional keyboard-only controls. It also natively supports fully-utilized hard drives larger than 2.2TB in 64-bit operating systems. EZ Mode displays frequently-accessed info. Users can choose system performance settings, and drag and drop boot priorities. Advanced Mode for performance enthusiasts includes detailed DRAM settings via a dedicated memory info page for complete insight.

ASUS ANTI-SURGE PROTECTION
Anti-Surge Protection Design detects overvoltage conditions and prevents voltage surges from spreading in real time. It also actively cuts off the overvoltage supply to protect the system.





Specifications:

BrandASUS
ModelP8H61-M LE/CSM R2.0
CPU Socket TypeLGA 1155
CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1155)
ChipsetIntel H61
Number of Memory Slotsx2 240-Pin
Memory StandardDDR3 2200*(*O.C.) / 2133* / 2000* / 1866* / 1600 / 1333 / 1066
Maximum Memory Supported16GB
Channel SupportedDual Channel
Expansion Slotsx1 PCI-Express 3.0 x16 Slot
x2 PCI-Express x1 Slots
x1 PCI Slot
SATA 3GB/sx4 SATA 3GB/s
Onboard Video ChipsetSupported only by CPU with integrated graphics
Audio Channels8 Channels
LAN ChipsetRealtek 8111F
Max LAN Speed10/100/1000Mbps

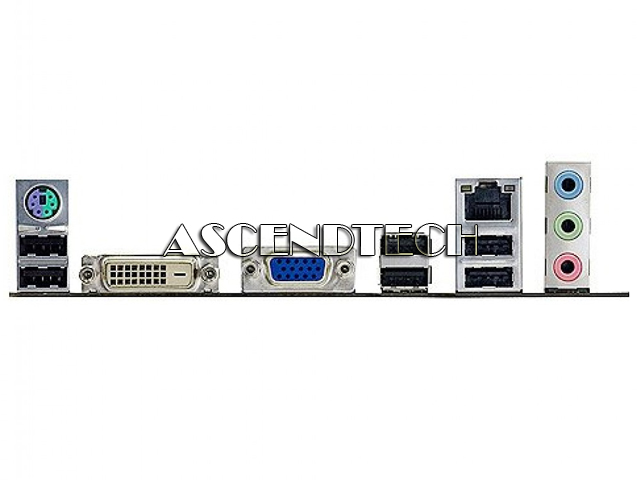

Rear Panel Portsx1 PS/2 Keyboard/Mouse Port
x1 D-Sub Port
x1 DVI Port
x6 USB 2.0 Ports
x3 Audio Ports
Internal I/O Connectorsx4 USB 2.0 Connectors
x1 COM port(s) connector(s)
x1 CPU Fan connector(s)
x1 Chassis Fan connector(s)
x1 S/PDIF out header(s)
x1 24-pin EATX Power connector(s)
x1 4-pin ATX 12V Power connector(s)
x1 parallel port connector(s)
x1 Front panel connector(s)
x1 System panel(s)
Form FactorMicro ATX
Power Pin24 Pin




CPU Support:

CPU

Validated since PCB

Celeron G470 (2.0G,1C,HT,35W,32nm,L3:1.5MB,HD,rev.Q0)

ALL

Core i3-2100 (3.1G,L3:3M,iGPU,2C,rev.Q0)

ALL

Core i3-2100T (2.5G,L3:3M,iGPU,2C,rev.Q0)

ALL

Core i3-2105 (3.1G,L3:3M,iGPU,2C,rev.D2)

ALL

Core i3-2120 (3.3G,L3:3M,iGPU,2C,rev.Q0)

ALL

Core i3-2120T (2.6G,L3:3M,iGPU,2C)

ALL

Core i3-2125 (3.3G,L3:3M,iGPU,2C)

ALL

Core i3-2130 (3.4G,L3:3M,iGPU,2C)

ALL

Core i3-3210 (3.2G,L3:3M,iGPU,GT1,55W,2C,rev.P0)

ALL

Core i3-3220 (3.3G,L3:3M,iGPU,2C,rev.E1)

ALL

Core i3-3220 (3.3G,L3:3M,iGPU,2C,rev.N0)

ALL

Core i3-3220 (3.3G,L3:3M,iGPU,2C,rev.P0)

ALL

Core i3-3220T (2.8G,L3:3M,iGPU,2C,rev.P0)

ALL

Core i3-3240 (3.4G,L3:3M,iGPU,2C,rev.P0)

ALL

Core i3-3240T (2.9G,L3:3M,iGPU,2C,rev.P0)

ALL

Core i3-3245 (3.4G,2C,HT,L3:3M,55W,GT1,rev.L1)

ALL

Core i3-3250 (3.5G,2C,HT,L3:3M,55W,GT1,rev.P0)

ALL

Core i3-3250T (3.0G,2C,HT,L3:3M,35W,GT1,rev.P0)

ALL

Core i5-2300 (2.8G,L3:6M,iGPU,4C,rev.D2)

ALL

Core i5-2310 (2.9G,L3:6M,iGPU,4C,rev.D2)

ALL

Core i5-2320 (3.0G,L3:6M,iGPU,4C,rev.D2)

ALL

Core i5-2380P (3.1G,L3:6M,non-iGPU,4C,rev.D2)

ALL

Core i5-2390T (2.7G,L3:3M,iGPU,2C,rev.Q0)

ALL

Core i5-2400 (3.1G,L3:6M,iGPU,4C,rev.D2)

ALL

Core i5-2400S (2.5G,L3:6M,iGPU,4C,rev.D2)

ALL

Core i5-2405S (2.5G,L3:6M,iGPU,4C,rev.D2)

ALL

Core i5-2450P (3.2G,L3:6M,non-iGPU,4C,rev.D2)

ALL

Core i5-2500 (3.3G,L3:6M,iGPU,4C,rev.D2)

ALL

Core i5-2500K (3.3G,L3:6M,iGPU,4C,rev.D2)

ALL

Core i5-2500S (2.7G,L3:6M,iGPU,4C,rev.D2)

ALL

Core i5-2500T (2.3G,L3:6M,iGPU,4C,rev.D2)

ALL

Core i5-2550K (3.4G,L3:6M,non-iGPU,4C,rev.D2)

ALL

Core i5-3330 (3.0G,L3:6M,iGPU,4C,VT-d,77W,rev.N0)

ALL

Core i5-3340 (3.1G, L3:6M, GT1, 4C, VT-d,77W, rev.E1)

ALL

Core i5-3340 (3.1G, L3:6M, GT1, 4C, VT-d,77W, rev.N0)

ALL

Core i5-3340S (2.8G, L3:6M, GT1, 4C, VT-d, 65W, rev.E1)

ALL

Core i5-3350P (3.1G,L3:6M,4C,69W,rev.E1)

ALL

Core i5-3350P (3.1G,L3:6M,4C,69W,rev.N0)

ALL

Core i5-3450 (3.1G,L3:6M,iGPU,4C,VT-d,77W,rev.E1)

ALL

Core i5-3450S (2.8G,L3:6M,iGPU,4C,VT-d,65W,rev.E1)

ALL

Core i5-3470 (3.2G,L3:6M,iGPU,4C,VT-d,77W,rev.N0)

ALL

Core i5-3470S (2.9G,L3:6M,iGPU,4C,VT-d,65W,rev.N0)

ALL

Core i5-3470T (2.9G,L3:3M,iGPU,DC,VT-d,35W,rev.L1)

ALL

Core i5-3475S (2.9G,L3:6M,iGPU,GT2,4C,VT-d,65W,rev.E1)

ALL

Core i5-3550 (3.3G,L3:6M,iGPU,4C,VT-d,77W,rev.E1)

ALL

Core i5-3550S (3.0G,L3:6M,iGPU,4C,VT-d,65W,rev.E1)

ALL

Core i5-3570K (3.4G,L3:6M,iGPU,4C,77W,rev.E1)

ALL

Core i5-3570T (2.3G,L3:6M,iGPU,4C,VT-d,45W,rev.E1)

ALL

Core i7-2600 (3.4G,L3:8M,iGPU,4C,rev.D2)

ALL

Core i7-2600K (3.4G,L3:8M,iGPU,4C,rev.D2)

ALL

Core i7-2600S (2.8G,L3:8M,iGPU,4C,rev.D2)

ALL

Core i7-2700K (3.5G,L3:8M,iGPU,4C,rev.D2)

ALL

Core i7-3770 (3.4G,L3:8M,iGPU,4C,HT.VT-d,77W,rev.E1)

ALL

Core i7-3770K (3.5G,L3:8M,iGPU,4C,HT,77W,rev.E1)

ALL

Core i7-3770S (3.1G,L3:8M,iGPU,GT2,4C,HT,VT-d,65W,rev.E1)

ALL

Core i7-3770T (2.5G,L3:8M,iGPU,GT2,4C,HT,VT-d,45W,rev.E1)

ALL

Intel Celeron G1610 (2.6GHz,55W,L3:2MB,2C,rev.P0)

ALL

Intel Celeron G1610 (2.6GHz,55W,L3:2MB,2C,rev.P0)

ALL

Intel Celeron G1610T (2.3GHz,35W,L3:2MB,2C,rev.P0)

ALL

Intel Celeron G1610T (2.3GHz,35W,L3:2MB,2C,rev.P0)

ALL

Intel Celeron G1620 (2.7GHz,55W,L3:2MB,2C,rev.P0)

ALL

Intel Celeron G1620 (2.7GHz,55W,L3:2MB,2C,rev.P0)

ALL

Intel Celeron G1620T (2.4GHz, 2C, 35W, L3:2MB, rev.P0)

ALL

Intel Celeron G1630 (2.8GHz, 55W, L3:2MB, 2C, rev.P0)

ALL

Intel Celeron G440 (1.6G,35W,32nm,1MB,1C)

ALL

Intel Celeron G460 (1.8G,35W,32nm,1.5MB,1C)

ALL

Intel Celeron G465 (1.9G,35W,32nm,1.5MB,1C)

ALL

Intel Celeron G530 (2.4G,65W,32nm,2MB,2C)

ALL

Intel Celeron G530T (2.0G,35W,32nm,2MB,2C)

ALL

Intel Celeron G540 (2.5G,65W,32nm,2MB,2C)

ALL

Intel Celeron G540T (2.1G,35W,32nm,2MB,2C)

ALL

Intel Celeron G550 (2.6G,65W,32nm,2MB,2C)

ALL

Intel Celeron G550T (2.2G,35W,32nm,2MB,2C)

ALL

Intel Celeron G555 (2.7G,65W,32nm,2MB,2C)

ALL

Intel Pentium G2010 (2.8GHz,55W,22nm,3MB,2C,rev.E1)

ALL

Intel Pentium G2010 (2.8GHz,55W,22nm,3MB,2C,rev.L1)

ALL

Intel Pentium G2010 (2.8GHz,55W,22nm,3MB,2C,rev.N0)

ALL

Intel Pentium G2010 (2.8GHz,55W,22nm,3MB,2C,rev.P0)

ALL

Intel Pentium G2010 (2.8GHz,55W,22nm,3MB,2C,rev.P0)

ALL

Intel Pentium G2020 (2.9GHz,55W,22nm,3MB,2C,rev.P0)

ALL

Intel Pentium G2020 (2.9GHz,55W,22nm,3MB,2C,rev.P0)

ALL

Intel Pentium G2020T (2.5GHz,35W,22nm,GT1,L3:3MB,2C,rev.P0)

ALL

Intel Pentium G2020T (2.5GHz,35W,22nm,GT1,L3:3MB,2C,rev.P0)

ALL

Intel Pentium G2100T (2.6GHz,35W,22nm,3MB,2C,rev.P0)

ALL

Intel Pentium G2120 (3.1GHz,55W,22nm,3MB,2C,rev.P0)

ALL

Intel Pentium G2130 (3.2GHz,55W,22nm,3MB,2C,rev.P0)

ALL

Intel Pentium G620 (2.6G,65W,32nm,3MB,2C,rev.Q0)

ALL

Intel Pentium G620T (2.2G,35W,32nm,3MB,2C,rev.Q0)

ALL

Intel Pentium G630 (2.7G,65W,32nm,3MB,2C)

ALL

Intel Pentium G630T (2.3G,35W,32nm,3MB,2C)

ALL

Intel Pentium G640 (2.8G,65W,32nm,3MB,2C)

ALL

Intel Pentium G640T (2.4G,35W,32nm,3MB,2C)

ALL

Intel Pentium G645 (2.9G,65W,32nm,3MB,2C)

ALL

Intel Pentium G645T (2.5G,35W,32nm,3MB,2C)

ALL

Intel Pentium G840 (2.8G,65W,32nm,3MB,2C,rev.Q0)

ALL

Intel Pentium G850 (2.9G,65W,32nm,3MB,2C,rev.Q0)

ALL

Intel Pentium G860 (3.0G,65W,32nm,3MB,2C,rev.Q0)

ALL

Intel Pentium G860T (2.6G,65W,32nm,3MB,2C,rev.Q0)

ALL

Intel Pentium G870 (3.1G,65W,32nm,3MB,2C,rev.Q0)

ALL

Intel Xeon E3-1230 (3.2G,1333,L3:8MB,4C,D2)

ALL

Intel Xeon E3-1230 v2 (3.3G,L3:8M,4C,HT,69W)

ALL

Intel Xeon E3-1245 v2 (3.4G,L3:8M,4C,HT,77W)

ALL

Pentium G2030 (3.0GHz,55W,2C,GT1,22nm,L3:3MB,rev.P0)

ALL

Pentium G2030T (2.6GHz,35W,2C,GT1,22nm,L3:3MB,rev.P0)

ALL

Pentium G2120T (2.7GHz,35W,2C,GT1,22nm,L3:3MB,rev.P0)

ALL

Pentium G2140 (3.3GHz,55W,2C,GT1,22nm,L3:3MB,rev.P1)

ALL
