ASUS P8H61-M LX PLUS LGA1155 H61 B3 DDR3
Description

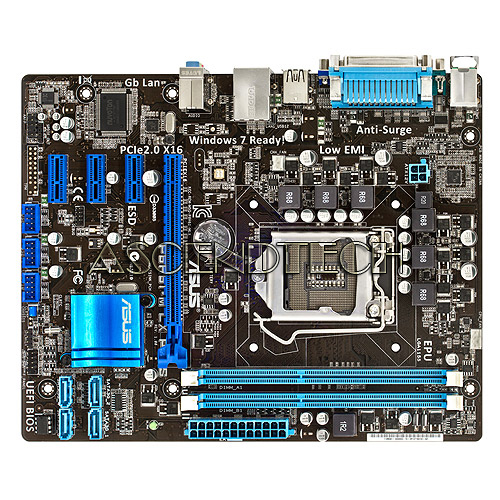

Asus P8H61-M LX Plus LGA1155 H61 B3 Chipset Core i3 i5 i7 DDR3 Motherboard. This motherboard supports the Intel Core i7 / Core i5 / Core i3 processors in LGA1155 package with memory and PCI Express controllers integrated to support 2-channel (2 DIMMs) DDR3 memory and 16 PCI Express 2.0 lanes. This provides great graphics performance. Intel Core i7 / Core i5 / Core i3 processors are among the most powerful and energy efficient CPUs in the world.
Features:
Anti-Surge Protection:
Protect Your Device Anti-Surge Protection Design detects overvoltage conditions and prevents voltage surges from spreading in real time. It also actively cuts off the overvoltage supply to protect the system.
1. Real-time over voltage detection.
2. Active protection against potential damage to your motherboards and systems.
EPU:
Tap into the world’s first real time PC power saving engine through AI Suite II utility. Get total system power savings by automatically detecting current PC loadings and intelligently moderating power consumption. This also reduces fan noise and extends component longevity.
8-channel high definition audio:
The onboard 8-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output and jack-detect feature that automatically detects and identifies what types of peripherals are plugged into the audio I/O jacks and notifies users of inappropriate connection, which means there will be no more confusion of Line-in, Line-out, and Mic jacks.
ErP ready:
The motherboard is European Union´s Energy-related Products (ErP) ready, and ErP requires products to meet certain energy efficiency requirements in regards to energy consumptions. This is in line with ASUS vision of creating environment-friendly and energy-efficient products through product design and innovation to reduce carbon footprint of the product and thus mitigate environmental impacts.
The Intel® H61(B3) Express Chipset:
The Intel® H61(B3) Express Chipset is the latest single-chipset design to support the new 1155 socket Intel® Core™ i7 / Core™ i5 / Core™ i3 2nd generation processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability.
Dual Channel DDR3 Support 1333 / 1066:
The motherboard supports DDR3 memory that features data transfer rates of 1333 / 1066 MHz to meet the higher bandwidth requirements of the latest 3D graphics, multimedia, and Internet applications. The dual-channel DDR3 architecture enlarges the bandwidth of your system memory to boost system performance.
Specifications:
| CPU | Intel® Socket 1155 for 2nd Generation Core™ i7/Core™ i5/Core™ i3 Processors Supports Intel® 32 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. * Refer to www.asus.com for CPU support list |
| Chipset | Intel® H61(B3) |
| Memory | 2 x DIMM, Max. 16GB, DDR3 1333/1066 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * The maximum 16GB memory capacity can be supported with 8GB or above DIMMs. ASUS will update the memory QVL once the DIMMs are available in the market. * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists). * Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard. |
| Graphic | Integrated Graphics Processor VGA output support : RGB port - Supports RGB with max. resolution 2048 x 1536 @ 75 Hz Supports DirectX 10.1 |
| Expansion Slots | 1 x PCIe 2.0 x16 3 x PCIe 2.0 x1 |
| Storage | Intel® H61(B3) chipset : 4 x SATA 3Gb/s port(s), blue |
| LAN | Realtek® 8111E , 1 x Gigabit LAN Controller(s) |
| Audio | Realtek® ALC887 8-Channel High Definition Audio CODEC *1 |
| USB Ports | Intel® H61(B3) chipset : 10 x USB 2.0 port(s) (4 at back panel, black, 6 at mid-board) |
| Overclocking Features | Overclocking Protection : - ASUS C.P.R.(CPU Parameter Recall) |
| Special Features | ASUS EPU : - EPU ASUS Protect 3 Technology : - Anti-Surge Protection - Low EMI Solution - ESD ASUS Exclusive Features : - AI Suite II - Ai Charger - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2 100% All High-quality Conductive Polymer Capacitors |

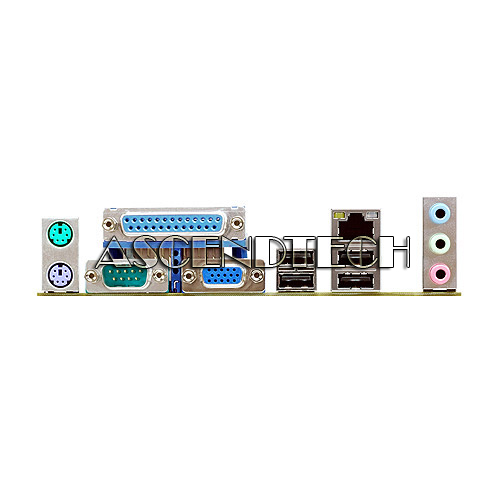

| Back I/O Ports | 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x D-Sub 1 x LAN (RJ45) port(s) 4 x USB 2.0 1 x COM port(s) 1 x Parallel port(s) 3 x Audio jack(s) |
| Internal I/O Ports | 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s) 4 x SATA 3Gb/s connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s) |
| Accessories | User's manual I/O Shield 2 x SATA 3Gb/s cable(s) |
| BIOS | 32 Mb Flash ROM, UEFI BIOS, PnP, DMI v2.0, WfM2.0, SMBIOS v2.6, ACPI v2.0a, Multi-language BIOS |
| Support Disc | Drivers ASUS Utilities ASUS Update Anti-virus software (OEM version) |
| Form Factor | uATX Form Factor 9.6 inch x 7.6 inch ( 24.4 cm x 19.3 cm ) |
| Note | *1: Use a chassis with HD audio module in the front panel to support an 8-channel audio output. |
CPU Support List:
Core i3-2100 (3.1G,L3:3M,iGPU,2C,rev.Q0)ALL
Core i3-2100T (2.5G,L3:3M,iGPU,2C,rev.Q0)ALL
Core i3-2105 (3.1G,L3:3M,iGPU,2C,rev.D2)ALL
Core i3-2120 (3.3G,L3:3M,iGPU,2C,rev.Q0)ALL
Core i3-2120T (2.6G,L3:3M,iGPU,2C)ALL
Core i3-2125 (3.3G,L3:3M,iGPU,2C)ALL
Core i3-2130 (3.4G,L3:3M,iGPU,2C)ALL
Core i5-2300 (2.8G,L3:6M,iGPU,4C,rev.D2)ALL
Core i5-2310 (2.9G,L3:6M,iGPU,4C,rev.D2)ALL
Core i5-2380P (3.1G,L3:6M,non-iGPU,4C,rev.D2)ALL
Core i5-2390T (2.7G,L3:3M,iGPU,2C,rev.Q0)ALL
Core i5-2400 (3.1G,L3:6M,iGPU,4C,rev.D2)ALL
Core i5-2400S (2.5G,L3:6M,iGPU,4C,rev.D2)ALL
Core i5-2405S (2.5G,L3:6M,iGPU,4C,rev.D2)ALL
Core i5-2450P (3.2G,L3:6M,non-iGPU,4C,rev.D2)ALL
Core i5-2500 (3.3G,L3:6M,iGPU,4C,rev.D2)ALL
Core i5-2500K (3.3G,L3:6M,iGPU,4C,rev.D2)ALL
Core i5-2500S (2.7G,L3:6M,iGPU,4C,rev.D2)ALL
Core i5-2500T (2.3G,L3:6M,iGPU,4C,rev.D2)ALL
Core i5-2550K (3.4G,L3:6M,non-iGPU,4C,rev.D2)ALL
Core i5-3450 (3.1G,L3:6M,iGPU,4C,VT-d,77W,rev.E1)ALL
Core i5-3450S (2.8G,L3:6M,iGPU,4C,VT-d,65W,rev.E1)ALL
Core i5-3475S (2.9G,L3:6M,iGPU,GT2,4C,VT-d,65W,rev.E1)
Core i5-3550 (3.3G,L3:6M,iGPU,4C,VT-d,77W,rev.E1)ALL
Core i5-3550S (3.0G,L3:6M,iGPU,4C,VT-d,65W,rev.E1)ALL
Core i5-3570K (3.4G,L3:6M,iGPU,4C,77W,rev.E1)ALL
Core i5-3570T (2.3G,L3:6M,iGPU,4C,VT-d,45W,rev.E1)ALL
Core i7-2600 (3.4G,L3:8M,iGPU,4C,rev.D2)ALL
Core i7-2600K (3.4G,L3:8M,iGPU,4C,rev.D2)ALL
Core i7-2600S (2.8G,L3:8M,iGPU,4C,rev.D2)ALL
Core i7-2700K (3.5G,L3:8M,iGPU,4C,rev.D2)ALL
Core i7-3770 (3.4G,L3:8M,iGPU,4C,HT.VT-d,77W,rev.E1)ALL
Core i7-3770K (3.5G,L3:8M,iGPU,4C,HT,77W,rev.E1)ALL
Core i7-3770S (3.1G,L3:8M,iGPU,GT2,4C,HT,VT-d,65W,rev.E1)ALL
Core i7-3770T (2.5G,L3:8M,iGPU,GT2,4C,HT,VT-d,45W,rev.E1)ALL
Intel Celeron G460 (1.8G,35W,32nm,1.5MB,1C)ALL
Intel Celeron G530 (2.4G,65W,32nm,2MB,2C)ALL
Intel Celeron G530T (2.0G,35W,32nm,2MB,2C)ALL
Intel Celeron G540 (2.5G,65W,32nm,2MB,2C)ALL
Intel Pentium G620 (2.6G,65W,32nm,3MB,2C,rev.Q0)ALL
Intel Pentium G620T (2.2G,35W,32nm,3MB,2C,rev.Q0)ALL
Intel Pentium G630 (2.7G,65W,32nm,3MB,2C)ALL
Intel Pentium G840 (2.8G,65W,32nm,3MB,2C,rev.Q0)ALL
Intel Pentium G850 (2.9G,65W,32nm,3MB,2C,rev.Q0)ALL
Intel Pentium G860 (3.0G,65W,32nm,3MB,2C,rev.Q0)ALL
