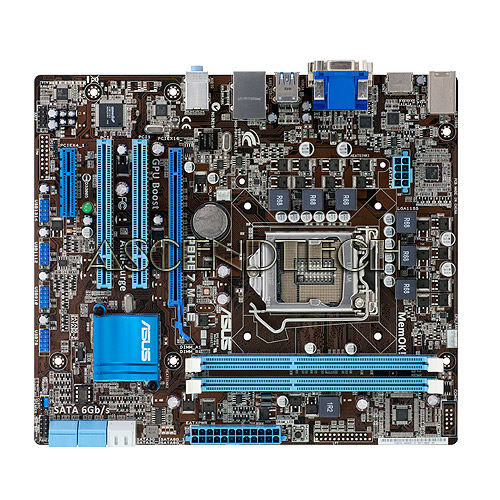

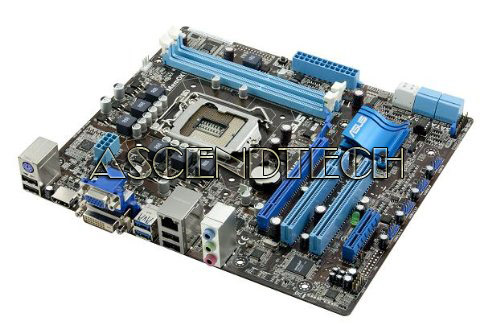

ASUS P8H67-M LE LGA1155 H67 DDR3 HDMI

ASUS P8H67-M LE Socket LGA 1155 Micro ATX Motherboard, Features; Intel H67 chipset, SATA3 6Gb/s, USB 3.0, Onboard Video, Audio and Gigabit LAN. This motherboard supports the Intel second generation Core i7 / Core i5 / Core i3 processors in LGA1155 package with memory and PCI Express controllers integrated to support 2-channel (2 DIMMs) DDR3 memory and 16 PCI Express 2.0 lanes. This provides great graphics performance. Intel second generation Core i7 / Core i5 / Core i3 processors are among the most powerful and energy efficient CPUs in the world.



Features:

LGA1155 socket for Intel Second Generation Core i7/ Core i5/ Core i3 Processors
This motherboard supports the latest Intel Sandy Bridge processors in the LGA1155 package, with memory and PCI Express controllers integrated to support 2-channel (2 DIMM) DDR3 memory and 16 PCI Express 2.0 lanes. This provides great graphics performance. Intel Sandy Bridge processors are among the most powerful and energy efficient CPUs in the world.

Intel H67 Express Chipset
The Intel H67 Express Chipset is the latest single-chipset design to support the new 1155 socket Intel Core i7 / Core i5 / Core i3 2nd generation processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, the H67 provides 2 SATA 6.0 Gb/s and 4 SATA 3.0 Gb/s ports for faster data retrieval at double the bandwidth of current bus systems.

HDMI Interface
HDMI (High-Definition Multimedia Interface) is the first and only industry-supported, uncompressed, all digital audio and video interface via a single cable and is HDCP compliant allowing playback of HD DVD, Blu-ray Disc and other protected content.

DVI capable
DVI (Digital Visual Interface) provides high visual quality of digital display devices such as LCD monitor.

USB 3.0 Support
Experience ultra-fast data transfers at 4.8Gbps with USB 3.0--the latest connectivity standard. Built to connect easily with next-generation components and peripherals, USB 3.0 transfers data 10X faster and is also backward compatible with USB 2.0 components.

Native SATA 6Gb/s Support
The Intel H67 Chipset natively supports next-generation Serial ATA (SATA) storage interface, this motherboard delivers up to 6.0 Gb/s data transfer rates. Additionally, get enhanced scalability, faster data retrieval, double the bandwidth of current bus systems.

MemOK! - Any Memory is A-OK!
MemOK! quickly ensures memory boot compatibility. This remarkable memory rescue tool requires a mere push of a button to patch memory issues. MemOK! determines failsafe settings and dramatically improves system boot success. Get your system up and running in no time!

GPU Boost - Go to the Limit with iGPU Level Up!
GPU Boost accelerates the integrated GPU for extreme graphics performance. The user-friendly interface facilitates flexible frequency adjustments. It easily delivers stable system-level upgrades for every use.

CrashFree BIOS 3
The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a disk containing the BIOS file. This utility saves users the cost and hassle of buying a replacement BIOS chip.

Q-Fan2
ASUS Q-Fan2 technology intelligently adjusts both CPU fan and chassis fan speeds according to system loading to ensure quiet, cool and efficient operation.

GreenASUS
The motherboard and its packaging comply with the European Union´s Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers´ health while minimizing the impact on the environment.

High Definition Audio - Enjoy high-end sound system on your PC!
The onboard 8-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature,and retasking functions.





Specifications:

CPU:
Intel Socket 1155 for 2nd Generation Core i7/Core i5/Core i3 Processors
Supports Intel 32 nm CPU
Supports Intel Turbo Boost Technology 2.0

Chipset:
Intel H67(B3)

Memory:
2 x DIMM, Max. 16GB, DDR3 1333/1066 Hz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture

Graphic:
Integrated Graphics Processor
Multi-VGA output support : DVI/RGB ports
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 2048 x 1536 @ 75 Hz
Supports DirectX 10.1

Expansion Slots:
1 x PCIe 2.0 x16
2 x PCIe 2.0 x1
1 x PCI

Storage:
Intel H67(B3) chipset :
4 x SATA 3Gb/s port(s), blue

LAN:
Realtek 8111E , 1 x Gigabit LAN Controller(s)

Audio:
Realtek ALC 887 8-Channel High Definition Audio CODEC

USB Ports:
Intel H67(B3) chipset :
10 x USB 2.0 port(s) (6 at back panel, black, 4 at mid-board)

Special Features:
ASUS EPU :
- EPU
TurboV
GPU Boost
ASUS Exclusive Features :
- AI Suite II
- Anti-Surge
- ESD Guards
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2

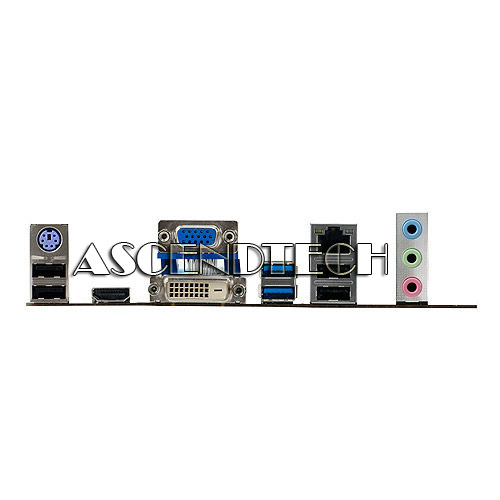

Back I/O Ports:
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI
1 x D-Sub
1 x LAN (RJ45) port(s)
6 x USB 2.0
3 x Audio jack(s)

Internal I/O Ports:
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x COM port(s) connector(s)
4 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x parallel port connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)

BIOS:
32 Mb Flash ROM EFI BIOS, PnP, DMI v2.0, WfM 2.0, ACPI v2.0a, SM BIOS v2.6, Multi-language BIOS

Form Factor:
uATX Form Factor
9.6 inch x 8.0 inch ( 24.4 cm x 20.3 cm )

CPU Support List:

Core i3-2100 (3.1G,L3:3M,iGPU,2C,rev.Q0)

Core i3-2100T (2.5G,L3:3M,iGPU,2C,rev.Q0)

Core i3-2105 (3.1G,L3:3M,iGPU,2C,rev.D2)

Core i3-2120 (3.3G,L3:3M,iGPU,2C,rev.Q0)

Core i3-2120T (2.6G,L3:3M,iGPU,2C)

Core i3-2125 (3.3G,L3:3M,iGPU,2C)

Core i3-2130 (3.4G,L3:3M,iGPU,2C)

Core i3-3210 (3.2G,L3:3M,iGPU,GT1,55W,2C,rev.P0)

Core i3-3220 (3.3G,L3:3M,iGPU,2C,rev.E1)

Core i3-3220 (3.3G,L3:3M,iGPU,2C,rev.L1)

Core i3-3220 (3.3G,L3:3M,iGPU,2C,rev.N0)

Core i3-3220 (3.3G,L3:3M,iGPU,2C,rev.P0)

Core i3-3220T (2.8G,L3:3M,iGPU,2C,rev.L1)

Core i3-3220T (2.8G,L3:3M,iGPU,2C,rev.P0)

Core i3-3225 (3.3G,L3:3M,iGPU,2C,rev.L1)

Core i3-3240 (3.4G,L3:3M,iGPU,2C,rev.L1)

Core i3-3240 (3.4G,L3:3M,iGPU,2C,rev.P0)

Core i3-3240T (2.9G,L3:3M,iGPU,2C,rev.L1)

Core i3-3240T (2.9G,L3:3M,iGPU,2C,rev.P0)

Core i5-2300 (2.8G,L3:6M,iGPU,4C,rev.D2)

Core i5-2310 (2.9G,L3:6M,iGPU,4C,rev.D2)

Core i5-2320 (3.0G,L3:6M,iGPU,4C,rev.D2)

Core i5-2380P (3.1G,L3:6M,non-iGPU,4C,rev.D2)

Core i5-2390T (2.7G,L3:3M,iGPU,2C,rev.Q0)

Core i5-2400 (3.1G,L3:6M,iGPU,4C,rev.D2)

Core i5-2400S (2.5G,L3:6M,iGPU,4C,rev.D2)

Core i5-2405S (2.5G,L3:6M,iGPU,4C,rev.D2)

Core i5-2450P (3.2G,L3:6M,non-iGPU,4C,rev.D2)

Core i5-2500 (3.3G,L3:6M,iGPU,4C,rev.D2)

Core i5-2500K (3.3G,L3:6M,iGPU,4C,rev.D2)

Core i5-2500S (2.7G,L3:6M,iGPU,4C,rev.D2)

Core i5-2500T (2.3G,L3:6M,iGPU,4C,rev.D2)

Core i5-2550K (3.4G,L3:6M,non-iGPU,4C,rev.D2)

Core i5-3330 (3.0G,L3:6M,iGPU,4C,VT-d,77W,rev.E1)

Core i5-3330 (3.0G,L3:6M,iGPU,4C,VT-d,77W,rev.N0)

Core i5-3330S (2.7G,L3:6M,iGPU,4C,VT-d,65W,rev.E1)

Core i5-3350P (3.1G,L3:6M,4C,69W,rev.E1)

Core i5-3350P (3.1G,L3:6M,4C,69W,rev.N0)

Core i5-3450 (3.1G,L3:6M,iGPU,4C,VT-d,77W,rev.E1)

Core i5-3450S (2.8G,L3:6M,iGPU,4C,VT-d,65W,rev.E1)

Core i5-3470 (3.2G,L3:6M,iGPU,4C,VT-d,77W,rev.N0)

Core i5-3470S (2.9G,L3:6M,iGPU,4C,VT-d,65W,rev.N0)

Core i5-3470T (2.9G,L3:3M,iGPU,DC,VT-d,35W,rev.L1)

Core i5-3475S (2.9G,L3:6M,iGPU,GT2,4C,VT-d,65W,rev.E1)

Core i5-3550 (3.3G,L3:6M,iGPU,4C,VT-d,77W,rev.E1)

Core i5-3550S (3.0G,L3:6M,iGPU,4C,VT-d,65W,rev.E1)

Core i5-3570 (3.4G,L3:6M,iGPU,4C,VT-d,77W,rev.N0)

Core i5-3570K (3.4G,L3:6M,iGPU,4C,77W,rev.E1)

Core i5-3570S (3.1G,L3:6M,iGPU,4C,VT-d,65W,rev.N0)

Core i5-3570T (2.3G,L3:6M,iGPU,4C,VT-d,45W,rev.E1)

Core i7-2600 (3.4G,L3:8M,iGPU,4C,rev.D2)

Core i7-2600K (3.4G,L3:8M,iGPU,4C,rev.D2)

Core i7-2600S (2.8G,L3:8M,iGPU,4C,rev.D2)

Core i7-2700K (3.5G,L3:8M,iGPU,4C,rev.D2)

Core i7-3770 (3.4G,L3:8M,iGPU,4C,HT.VT-d,77W,rev.E1)

Core i7-3770K (3.5G,L3:8M,iGPU,4C,HT,77W,rev.E1)

Core i7-3770S (3.1G,L3:8M,iGPU,GT2,4C,HT,VT-d,65W,rev.E1)

Core i7-3770T (2.5G,L3:8M,iGPU,GT2,4C,HT,VT-d,45W,rev.E1)

Intel Celeron G1610 (2.6GHz,55W,L3:2MB,2C,rev.P0)

Intel Celeron G1610 (2.6GHz,55W,L3:2MB,2C,rev.P0)

Intel Celeron G1610T (2.3GHz,35W,L3:2MB,2C,rev.P0)

Intel Celeron G1610T (2.3GHz,35W,L3:2MB,2C,rev.P0)

Intel Celeron G1620 (2.7GHz,55W,L3:2MB,2C,rev.P0)

Intel Celeron G1620 (2.7GHz,55W,L3:2MB,2C,rev.P0)

Intel Celeron G440 (1.6G,35W,32nm,1MB,1C)

Intel Celeron G460 (1.8G,35W,32nm,1.5MB,1C)

Intel Celeron G465 (1.9G,35W,32nm,1.5MB,1C)

Intel Celeron G530 (2.4G,65W,32nm,2MB,2C)

Intel Celeron G530T (2.0G,35W,32nm,2MB,2C)

Intel Celeron G540 (2.5G,65W,32nm,2MB,2C)

Intel Celeron G540T (2.1G,35W,32nm,2MB,2C)

Intel Celeron G550 (2.6G,65W,32nm,2MB,2C)

Intel Celeron G550T (2.2G,35W,32nm,2MB,2C)

Intel Celeron G555 (2.7G,65W,32nm,2MB,2C)

Intel Pentium G2010 (2.8GHz,55W,22nm,3MB,2C,rev.P0)

Intel Pentium G2010 (2.8GHz,55W,22nm,3MB,2C,rev.P0)

Intel Pentium G2010 (2.8GHz,55W,22nm,3MB,2C,rev.N0)

Intel Pentium G2020 (2.9GHz,55W,22nm,3MB,2C,rev.P0)

Intel Pentium G2020 (2.9GHz,55W,22nm,3MB,2C,rev.P0)

Intel Pentium G2020T (2.5GHz,35W,22nm,GT1,L3:3MB,2C,rev.P0)

Intel Pentium G2020T (2.5GHz,35W,22nm,GT1,L3:3MB,2C,rev.P0)

Intel Pentium G2100T (2.6GHz,35W,22nm,3MB,2C,rev.P0)

Intel Pentium G2120 (3.1GHz,55W,22nm,3MB,2C,rev.P0)

Intel Pentium G2130 (3.2GHz,55W,22nm,3MB,2C,rev.P0)

Intel Pentium G620 (2.6G,65W,32nm,3MB,2C,rev.Q0)

Intel Pentium G620T (2.2G,35W,32nm,3MB,2C,rev.Q0)

Intel Pentium G630 (2.7G,65W,32nm,3MB,2C)

Intel Pentium G630T (2.3G,35W,32nm,3MB,2C)

Intel Pentium G640 (2.8G,65W,32nm,3MB,2C)

Intel Pentium G640T (2.4G,35W,32nm,3MB,2C)

Intel Pentium G645 (2.9G,65W,32nm,3MB,2C)

Intel Pentium G645T (2.5G,35W,32nm,3MB,2C)

Intel Pentium G840 (2.8G,65W,32nm,3MB,2C,rev.Q0)

Intel Pentium G850 (2.9G,65W,32nm,3MB,2C,rev.Q0)

Intel Pentium G860 (3.0G,65W,32nm,3MB,2C,rev.Q0)

Intel Pentium G860T (2.6G,65W,32nm,3MB,2C,rev.Q0)

Intel Pentium G870 (3.1G,65W,32nm,3MB,2C,rev.Q0)

Intel Xeon E3-1230 (3.2G,1333,L3:8MB,4C,D2)

Intel Xeon E3-1230 v2 (3.3G,L3:8M,4C,4C,HT,69W)

Intel Xeon E3-1245 v2 (3.4G,L3:8M,4C,4C,HT,77W)
