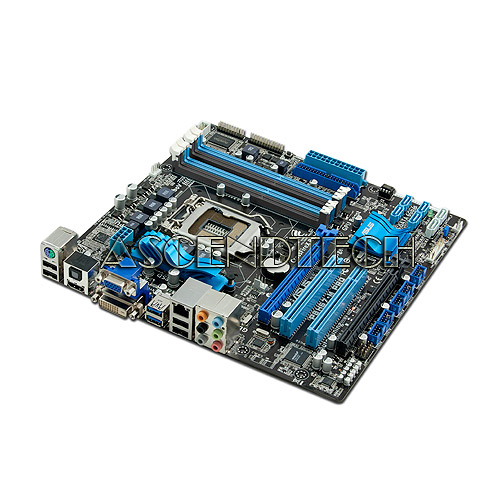

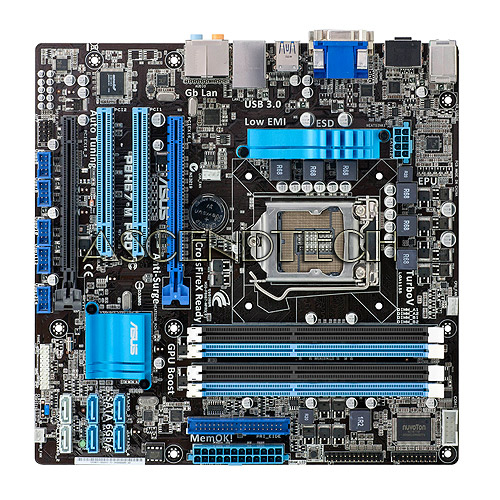

ASUS P8H67-M PRO/CSM REV 3.0 1155 H67

ASUS P8H67-M PRO/CSM (REV 3.0) LGA 1155 Intel H67 HDMI SATA 6Gb/s USB 3.0 Micro ATX Intel Motherboard with a support for the latest Intel Sandy Bridge processors in the LGA1155 package, with memory and PCI Express controllers integrated to support 2-channel (4 DIMM) DDR3 memory and 16 PCI Express 2.0 lanes. This provides great graphics performance. Intel Sandy Bridge processors are among the most powerful and energy efficient CPUs in the world.



Specifications:

CPU:
Intel Socket 1155 Core i5 Processor/Core i3 Processor/Core i7 Processor
Supports Intel Turbo Boost Technology 2.0

Chipset:
Intel H67 Express Chipset

Revision:
3.0

Memory:
Memory QVL for details.
4 xDIMM DIMM, Max. 32 GB, DDR3 1333/1066 Memory

Expansion Slots:
1 x PCIe 2.0 x16
1 x PCIe 2.0 x4

VGA:
Supports RGB with max. resolution 2048 x 1536 @75Hz

Multi-GPU Support:
Supports ATI Quad-GPU CrossFireX Technology

Storage:
Intel H67 Express Chipset
2 xSATA 6.0 Gb/s ports
VIA VT6415 PATA controller
1 xUltraDMA 133/100 for up to 2 PATA devices

LAN:
Realtek 8111E Gigabit LAN controller

Wireless LAN:
Realtek 8111E Gigabit LAN controller

Audio:
Realtek ALC892 8-Channel High Definition Audio CODEC
- BD Audio Layer Content Protection
- Supports Jack-Detection, Multi-streaming and Front Panel Jack-Retasking
- Optical S/PDIF out port at mid-board & back I/O

USB:
USB 3.0 controller:
2
- x USB 3.0/2.0 ports

ASUS Unique Features:
ASUS TurboV EVO
- GPU Boost (without switch)
- Auto Tuning* (adopt Fast Mode)
- TurboV
ASUS Power Design
- 4+2 Phase Power Design
ASUS Exclusive Features
- MemOK!
- AI Suite II
- ASUS EFI BIOS EZ Mode featuring friendly graphics user interface
ASUS Protect 3.0 Technology
- ASUS EPU
- Anti-Surge Protection
- Low EMI Solution
ASUS Quiet Thermal Solution
- ASUS Fanless Design: Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
ASUS Q-Design
- ASUS Q-Slot
- ASUS Q-DIMM

Overclocking Features:

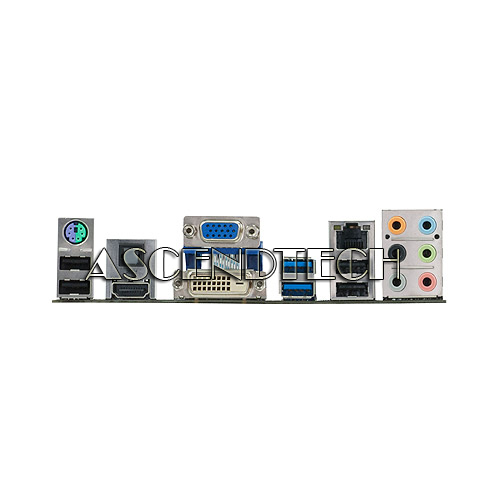

Back Panel I/O Ports 1 x PS/2 Keyboard/Mouse Combo port
1 x DVI
1 x D-Sub
1 x HDMI
1 x LAN(RJ45) port(s)
2 x USB 3.0/2.0 ports (blue)
4 x USB 2.0/1.1 ports
1 x S/PDIF Out (Optical)
6 x Audio Jacks

Internal I/O Connectors:
5 x USB 2.0/1.1 connector(s) support additional 10 USB ports
1 x MemOK! Button
1 x IDE connector
1 x TPM connector
2 x SATA 6.0Gb/s (gray)
4 x SATA 3.0Gb/s (blue)
1 x CPU Fan connector(s) (4-pin)
1 x Chassis Fan connector(s) (4-pin)
1 x Power Fan connector(s) (3-pin)
1 x S/PDIF Out connector
1 x 24-pin ATX Power connector
1 x 8-pin ATX 12V Power connector
1 x Front panel audio connector
1 x System Panel
COM connector
1 x Clear CMOS jumper


CPU Support List:

Core i3-2100 (3.1G,L3:3M,iGPU,2C,rev.Q0)

Core i3-2100T (2.5G,L3:3M,iGPU,2C,rev.Q0)

Core i3-2105 (3.1G,L3:3M,iGPU,2C,rev.D2)

Core i3-2120 (3.3G,L3:3M,iGPU,2C,rev.Q0)

Core i3-2120T (2.6G,L3:3M,iGPU,2C)

Core i3-2125 (3.3G,L3:3M,iGPU,2C)

Core i3-2130 (3.4G,L3:3M,iGPU,2C)

Core i3-3210 (3.2G,L3:3M,iGPU,GT1,55W,2C,rev.P0)

Core i3-3220 (3.3G,L3:3M,iGPU,2C,rev.E1)

Core i3-3220 (3.3G,L3:3M,iGPU,2C,rev.L1)

Core i3-3220 (3.3G,L3:3M,iGPU,2C,rev.N0)

Core i3-3220 (3.3G,L3:3M,iGPU,2C,rev.P0)

Core i3-3220T (2.8G,L3:3M,iGPU,2C,rev.L1)

Core i3-3220T (2.8G,L3:3M,iGPU,2C,rev.P0)

Core i3-3225 (3.3G,L3:3M,iGPU,2C,rev.L1)

Core i3-3240 (3.4G,L3:3M,iGPU,2C,rev.L1)

Core i3-3240 (3.4G,L3:3M,iGPU,2C,rev.P0)

Core i3-3240T (2.9G,L3:3M,iGPU,2C,rev.L1)

Core i3-3240T (2.9G,L3:3M,iGPU,2C,rev.P0)

Core i5-2300 (2.8G,L3:6M,iGPU,4C,rev.D2)

Core i5-2310 (2.9G,L3:6M,iGPU,4C,rev.D2)

Core i5-2320 (3.0G,L3:6M,iGPU,4C,rev.D2)

Core i5-2380P (3.1G,L3:6M,non-iGPU,4C,rev.D2)

Core i5-2390T (2.7G,L3:3M,iGPU,2C,rev.Q0)

Core i5-2400 (3.1G,L3:6M,iGPU,4C,rev.D2)

Core i5-2400S (2.5G,L3:6M,iGPU,4C,rev.D2)

Core i5-2405S (2.5G,L3:6M,iGPU,4C,rev.D2)

Core i5-2450P (3.2G,L3:6M,non-iGPU,4C,rev.D2)

Core i5-2500 (3.3G,L3:6M,iGPU,4C,rev.D2)

Core i5-2500K (3.3G,L3:6M,iGPU,4C,rev.D2)

Core i5-2500S (2.7G,L3:6M,iGPU,4C,rev.D2)

Core i5-2500T (2.3G,L3:6M,iGPU,4C,rev.D2)

Core i5-2550K (3.4G,L3:6M,non-iGPU,4C,rev.D2)

Core i5-3330 (3.0G,L3:6M,iGPU,4C,VT-d,77W,rev.E1)

Core i5-3330 (3.0G,L3:6M,iGPU,4C,VT-d,77W,rev.N0)

Core i5-3330S (2.7G,L3:6M,iGPU,4C,VT-d,65W,rev.E1)

Core i5-3350P (3.1G,L3:6M,4C,69W,rev.E1)

Core i5-3350P (3.1G,L3:6M,4C,69W,rev.N0)

Core i5-3450 (3.1G,L3:6M,iGPU,4C,VT-d,77W,rev.E1)

Core i5-3450S (2.8G,L3:6M,iGPU,4C,VT-d,65W,rev.E1)

Core i5-3470 (3.2G,L3:6M,iGPU,4C,VT-d,77W,rev.N0)

Core i5-3470S (2.9G,L3:6M,iGPU,4C,VT-d,65W,rev.N0)

Core i5-3470T (2.9G,L3:3M,iGPU,DC,VT-d,35W,rev.L1)

Core i5-3475S (2.9G,L3:6M,iGPU,GT2,4C,VT-d,65W,rev.E1)

Core i5-3550 (3.3G,L3:6M,iGPU,4C,VT-d,77W,rev.E1)

Core i5-3550S (3.0G,L3:6M,iGPU,4C,VT-d,65W,rev.E1)

Core i5-3570 (3.4G,L3:6M,iGPU,4C,VT-d,77W,rev.N0)

Core i5-3570K (3.4G,L3:6M,iGPU,4C,77W,rev.E1)

Core i5-3570S (3.1G,L3:6M,iGPU,4C,VT-d,65W,rev.N0)

Core i5-3570T (2.3G,L3:6M,iGPU,4C,VT-d,45W,rev.E1)

Core i7-2600 (3.4G,L3:8M,iGPU,4C,rev.D2)

Core i7-2600K (3.4G,L3:8M,iGPU,4C,rev.D2)

Core i7-2600S (2.8G,L3:8M,iGPU,4C,rev.D2)

Core i7-2700K (3.5G,L3:8M,iGPU,4C,rev.D2)

Core i7-3770 (3.4G,L3:8M,iGPU,4C,HT.VT-d,77W,rev.E1)

Core i7-3770K (3.5G,L3:8M,iGPU,4C,HT,77W,rev.E1)

Core i7-3770S (3.1G,L3:8M,iGPU,GT2,4C,HT,VT-d,65W,rev.E1)

Core i7-3770T (2.5G,L3:8M,iGPU,GT2,4C,HT,VT-d,45W,rev.E1)

Intel Celeron G1610 (2.6GHz,55W,L3:2MB,2C,rev.P0)

Intel Celeron G1610 (2.6GHz,55W,L3:2MB,2C,rev.P0)

Intel Celeron G1610T (2.3GHz,35W,L3:2MB,2C,rev.P0)

Intel Celeron G1610T (2.3GHz,35W,L3:2MB,2C,rev.P0)

Intel Celeron G1620 (2.7GHz,55W,L3:2MB,2C,rev.P0)

Intel Celeron G1620 (2.7GHz,55W,L3:2MB,2C,rev.P0)

Intel Celeron G440 (1.6G,35W,32nm,1MB,1C)

Intel Celeron G460 (1.8G,35W,32nm,1.5MB,1C)

Intel Celeron G465 (1.9G,35W,32nm,1.5MB,1C)

Intel Celeron G530 (2.4G,65W,32nm,2MB,2C)

Intel Celeron G530T (2.0G,35W,32nm,2MB,2C)

Intel Celeron G540 (2.5G,65W,32nm,2MB,2C)

Intel Celeron G540T (2.1G,35W,32nm,2MB,2C)

Intel Celeron G550 (2.6G,65W,32nm,2MB,2C)

Intel Celeron G550T (2.2G,35W,32nm,2MB,2C)

Intel Celeron G555 (2.7G,65W,32nm,2MB,2C)

Intel Pentium G2010 (2.8GHz,55W,22nm,3MB,2C,rev.P0)

Intel Pentium G2010 (2.8GHz,55W,22nm,3MB,2C,rev.N0)

Intel Pentium G2020 (2.9GHz,55W,22nm,3MB,2C,rev.P0)

Intel Pentium G2020 (2.9GHz,55W,22nm,3MB,2C,rev.P0)

Intel Pentium G2020T (2.5GHz,35W,22nm,GT1,L3:3MB,2C,rev.P0)

Intel Pentium G2020T (2.5GHz,35W,22nm,GT1,L3:3MB,2C,rev.P0)

Intel Pentium G2100T (2.6GHz,35W,22nm,3MB,2C,rev.P0)

Intel Pentium G2120 (3.1GHz,55W,22nm,3MB,2C,rev.P0)

Intel Pentium G2130 (3.2GHz,55W,22nm,3MB,2C,rev.P0)

Intel Pentium G620 (2.6G,65W,32nm,3MB,2C,rev.Q0)

Intel Pentium G620T (2.2G,35W,32nm,3MB,2C,rev.Q0)

Intel Pentium G630 (2.7G,65W,32nm,3MB,2C)

Intel Pentium G630T (2.3G,35W,32nm,3MB,2C)

Intel Pentium G640 (2.8G,65W,32nm,3MB,2C)

Intel Pentium G640T (2.4G,35W,32nm,3MB,2C)

Intel Pentium G645 (2.9G,65W,32nm,3MB,2C)

Intel Pentium G645T (2.5G,35W,32nm,3MB,2C)

Intel Pentium G840 (2.8G,65W,32nm,3MB,2C,rev.Q0)

Intel Pentium G850 (2.9G,65W,32nm,3MB,2C,rev.Q0)

Intel Pentium G860 (3.0G,65W,32nm,3MB,2C,rev.Q0)

Intel Pentium G860T (2.6G,65W,32nm,3MB,2C,rev.Q0)

Intel Pentium G870 (3.1G,65W,32nm,3MB,2C,rev.Q0)

Intel Xeon E3-1230 (3.2G,1333,L3:8MB,4C,D2)
