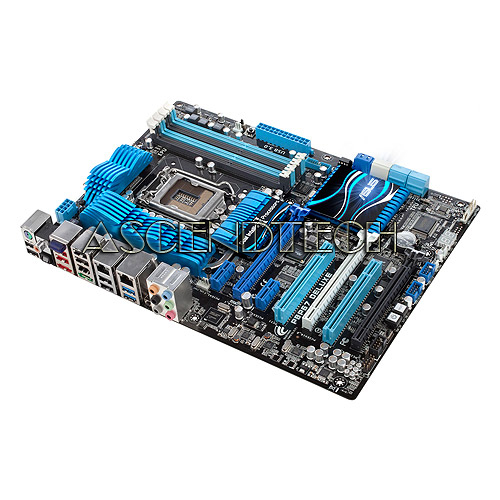

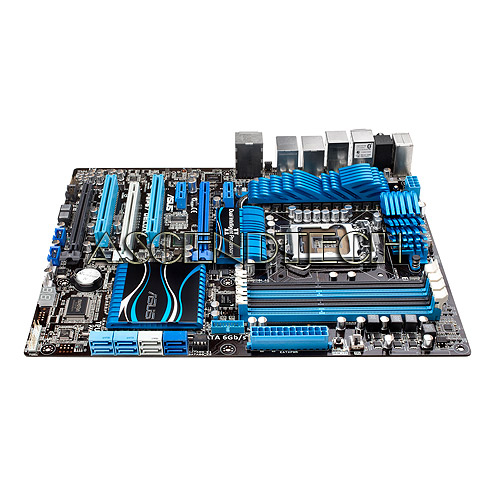

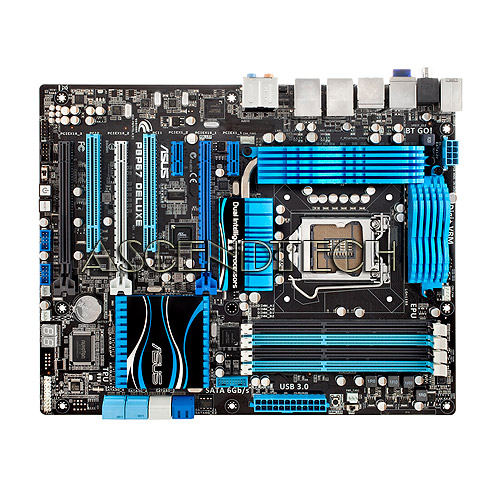

Asus P8P67 DELUXE LGA1155 INTEL P67 DDR3

ASUS P8P67 DELUXE LGA 1155 Intel P67 SATA 6Gb/s USB 3.0 ATX Intel Motherboard with UEFI BIOS. Adopting new B3 Revision P67 chipset that fixes the SATA issue, the ASUS P8P67 DELUXE motherboard offers a great platform to build your power house based on Intel second generation Core CPUs incorporating the industry-leading computing performance and power efficiency. It utilizes the new generation Dual Intelligent Processors 2 - EPU (Energy Processing Unit) and TPU (TurboV Processing Unit), and coupled with DIGI+ VRM, to precisely, dynamically and intelligently adjust power supply to achieve optimized performance, extreme system stability and greater power efficiency.


Specifications:

CPU:
Intel Socket 1155 Core i5 Processor/Core i3 Processor/Core i7 Processor/
Supports Intel Turbo Boost Technology 2.0
Support Intel 32nm CPU

Chipset:
Intel P67 Express Chipset

Memory:
4 x DIMM, Max. 32 GB, DDR3 1866(O.C.)/2133(O.C.)/2200(O.C.)*/1600/1333/1066 Non-ECC,Un-buffered Memory
Dual Channel memory architecture

Expansion Slots:
(single at x16 or dual at x8/x8 mode)
x PCIe 2.0 x16 2 1 x PCIe 2.0 x16 [Black] (at x4 mode, compatible with PCIe x1 and x4 devices)
2 x PCIe 2.0 x 1
2 x PCI

Multi-GPU Support:
Supports NVIDIA Quad-GPU SLI Technology
Supports ATI Quad-GPU CrossFireX Technology

Storage:
Intel P67 Express Chipset
2 xSATA 6.0 Gb/s ports
(gray)
4 xSATA 3.0 Gb/s ports (blue)
Intel Rapid Storage Technology Support RAID 0,1,5,10
Marvell PCIe 9128 SATA 6Gb/s controller with HyperDuo function*
2 xSATA 6.0 Gb/s ports (navy blue)
JMicron JMB362 SATA controller*
2 xExternal SATA 3.0 Gb/s ports (1 x Power eSATA)

LAN:
Dual Gigabit LAN controllers- 802.3az Energy Efficient Ethernet (EEE) appliance
Intel 82579 Gigabit LAN- Dual interconnect between the Integrated LAN controller and Physical Layer (PHY)
Realtek 8111E Gigabit LAN controller

Bluetooth:
Bluetooth v2.1 + EDR
ASUS BT GO! Utility

Audio:
Realtek ALC889 8-Channel High Definition Audio CODEC
- Absolute Pitch 192khz/24bit True BD Lossless Sound
- BD Audio Layer Content Protection
- DTS Surround Sensation UltraPC
- Supports Jack-Detection, Multi-streaming and Front Panel Jack-Retasking
- Coaxial / Optical S/PDIF out ports at back I/O

IEEE 1394:
VIA 6315N controller supports 2 x 1394a ports (one at mid-board; one at back panel)

USB:
NEC USB 3.0 controllers
- x USB 3.0/2.0 ports (2 ports at mid-board for front panel support, 2 ports at back panel [blue])
4 Intel P67 Express Chipset
- x USB 2.0/1.1 ports (4 ports at mid-board, 8 ports at back panel)
12

ASUS Unique Features:
ASUS Dual Intelligent Processors 2 with DIGI+ VRM:
ASUS EPU
- EPU, EPU switch
ASUS TPU
- Auto Tuning, TurboV, TPU switch
ASUS Digital Power Design
- Industry leading Digital 16+2 Phase Power Design
- ASUS DIGI+ VRM Utility
ASUS BT GO! (Bluetooth)
- Folder Sync, BT Transfer, Shot & Send, BT to Net, Music Player, Personal Manager, BT Turbo Remote
ASUS Exclusive Features
- MemOK!
- AI Suite II
- AI Charger
- Anti Surge
- ASUS EFI BIOS EZ Mode featuring friendly graphics user interface
ASUS Quiet Thermal Solution
- ASUS Fanless Design: Heat-pipe solution
- ASUS Fan Xpert
ASUS EZ DIY
- ASUS Q-Shield
- ASUS Q-Connector
- ASUS O.C. Tuner
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
ASUS Q-Design
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM

Overclocking Features:
Precision Tweaker 2
- vCore: Adjustable CPU voltage at 0.005V increment
- vCCIO: Adjustable I/O voltage at 0.00625V increment
- vCCSA: 144-step system agent voltage control
- vDRAM Bus: 160-step Memory voltage control
- vPCH: 90-step Chipset voltage control
- vCPU_PLL: 160-step CPU & PCH PLL voltage control
SFS (Stepless Frequency Selection)
- BCLK/PEG frequency tuning from 80MHz up to 300MHz at 0.1MHz increment
Overclocking Protection
- ASUS C.P.R.(CPU Parameter Recall)

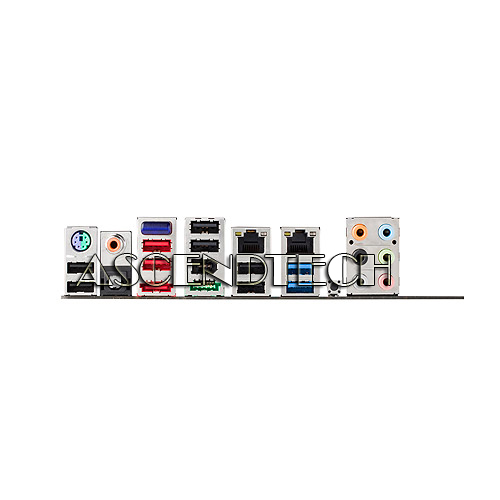

Back Panel I/O Ports:
2 x USB 3.0/2.0 (blue)
1 x PS/2 Keyboard/Mouse Combo port
2 (1 x Power eSATA)
x External SATA 2 x S/PDIF Out (1 for Coaxial, 1 for Optical)
1 x IEEE 1394a
2 (1 x Intel LAN)
x LAN(RJ45) port 8
x USB 2.0/1.1 8 -Channel Audio I/O
1 x Clr CMOS switch

Internal I/O Connectors:
4 x SATA 6.0Gb/s connectors (2 x gray; 2 x navy blue)
1 x Mem OK! Button
8-pin EATX 12V Power connector
1 x TPU switch
1 x EPU switch
1 x Power-on switch
1 x Reset switch
1 x USB 3.0/2.0 connector(s) supports additional 2 USB ports (19-pin)
2 x USB 2.0/1.1 connector(s) support additional 4 USB ports
1 x IEEE 1394a connector
1 (4-pin)
x CPU Fan connector 2 (1 x 4-pin; 1 x 3-pin)
x Chassis Fan connector (2 x 3-pin)
2 x Power Fan connector 1 x S/PDIF Out connector
24-pin EATX Power connector
Front panel audio connector
System Panel (Q-Connector)

BIOS:
32 Mb Flash ROM , EFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3

Manageability:
WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE

Form Factor:
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
