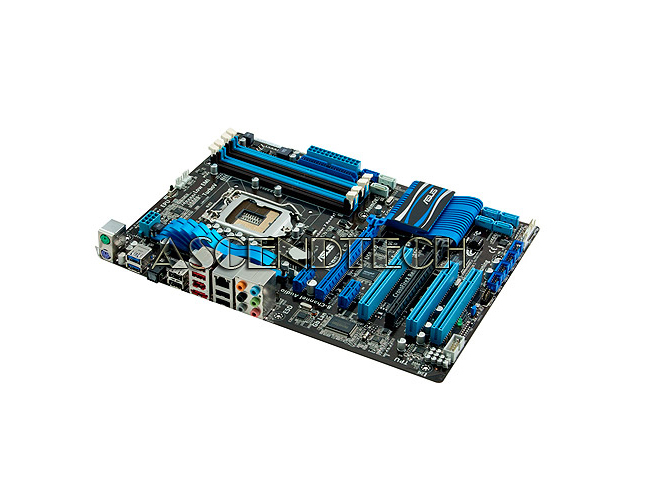

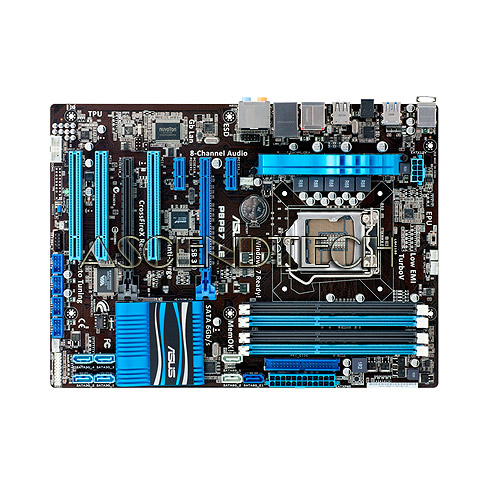

ASUS P8P67 LE DDR3 LGA1155 P67 NO I/O

ASUS P8P67 LE LGA 1155 SATA 6Gbps and USB 3.0 Supported Intel P67 DDR3 2200 ATX Motherboard with a support for the Intel second generation Core i7 / Core i5 / Core i3 processors in LGA1155 package with memory and PCI Express controllers integrated to support 2-channel (4 DIMMs) DDR3 memory and 16 PCI Express 2.0 lanes. This provides great graphics performance. Intel second generation Core i7 / Core i5 / Core i3 processors are among the most powerful and energy efficient CPUs in the world.

* Please Note: This is an OEM motherboard and it does not come with rear I/O shield also known as back-plate cover; this part is not needed and you can still install the board in standard ATX case.


Specifications:

CPU:
Intel Socket 1155 for 2nd Generation Core i7/Core i5/Core i3 Processors
Supports Enhanced Intel SpeedStep Technology (EIST)
Supports Intel 32 nm CPU

Chipset:
Intel P67

Memory:
4 x DIMM, Max. 32GB, DDR3 2200(O.C.)/2133(O.C.)/1866(O.C.)/1600(O.C.)/1333/1066 Hz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)

Multi-GPU Support:
Supports AMD Quad-GPU CrossFireX Technology

Expansion Slots:
1 x PCIe 2.0 x16 (blue)
1 x PCIe 2.0 x16 (x4 mode, black)
2 x PCIe 2.0 x1
3 x PCI

Storage:
Intel P67(B3) chipset :
4 x SATA 3Gb/s port(s), blue
2 x SATA 6Gb/s port(s), gray
Support Raid 0, 1, 5, 10
Marvell PCIe SATA 6Gb/s controller :
1 x UltraDMA 133/100/66 for up to 2 PATA devices , navy blue
1 x eSATA 6Gb/s port(s), red
1 x SATA 6Gb/s port(s), navy blue

LAN:
Realtek 8111E , 1 x Gigabit LAN Controller(s)

Audio:
Realtek ALC892 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
- Blu-ray audio layer Content Protection
- Optical S/PDIF out port(s) at back panel

IEEE 1394:
VIA 6308P controller
2 x IEEE 1394a port(s)
(1 at mid-board, 1 at back panel)

USB Ports:
ASMedia USB 3.0 controller :
2 x USB 3.0 port(s) (2 at back panel, blue)
Intel P67(B3) chipset :
14 x USB 2.0 port(s) (6 at back panel, , 8 at mid-board)

Overclocking Features:
Overclocking Protection
- ASUS C.P.R.(CPU Parameter Recall)

Special Features:
ASUS Xtreme Design :
ASUS TPU :
- Auto Tuning
- TurboV
- TPU switch
ASUS EPU :
- EPU
ASUS Protect 3 Technology :
- Anti-Surge Protection
- Low EMI Solution
- ESD
ASUS Exclusive Features :
- MemOK!
- AI Suite II
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
100% All High-quality Conductive Polymer Capacitors

Back I/O Ports:
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x eSATA 6Gb/s
1 x IEEE 1394a
1 x LAN (RJ45) port(s)
2 x USB 3.0
6 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s)

Internal I/O Ports:
4 x USB 2.0 connector(s) support(s) additional 8 USB 2.0 port(s)
1 x IDE connector(s)
1 x COM port(s) connector(s)
3 x SATA 6Gb/s connector(s)
4 x SATA 3Gb/s connector(s)
1 x IEEE 1394a connector(s)
1 x CPU Fan connector(s)
2 x Chassis Fan connector(s)
1 x Power Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x MemOK! button(s)
1 x TPU switch(es)

BIOS:
32 Mb Flash ROM , EFI BIOS, PnP, DMI v2.0, WfM 2.0, ACPI v2.0a, SM BIOS v2.6, Multi-language BIOS

Manageability:
WOL by PME,WOR by PME,PXE

Form Factor:
ATX Form Factor
12 inch x 8.8 inch ( 30.5 cm x 22.4 cm )
