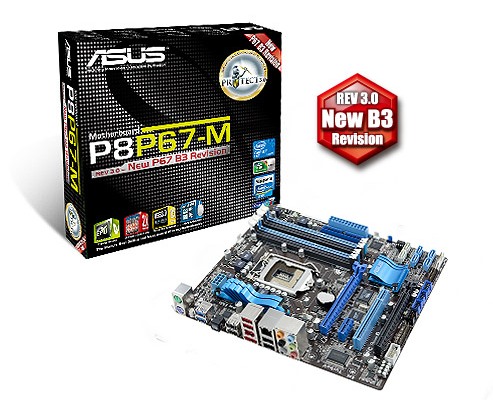

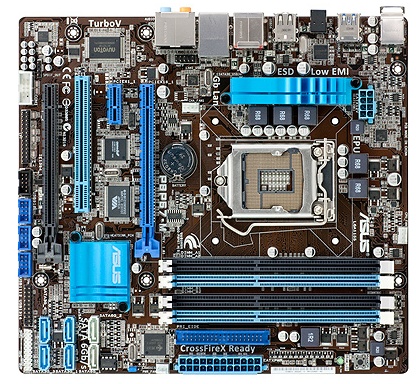

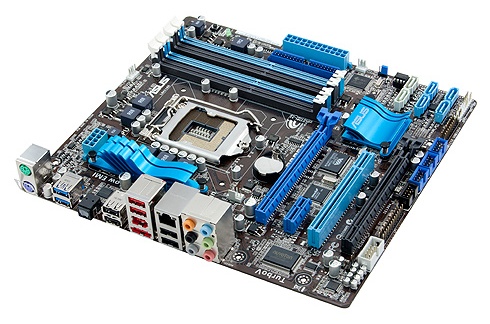

Asus P8P67-M H67M LGA1155 Motherboard

Asus P8P67-M Revision Green Motherboard with Real-Time O.C.Tunings on Intel P67 Platform. High performance Asus P8P67-M Motherboard supporting latest socket LGA 1155 Intel® 2nd Generation Core™ i7 / i5 / i3 Processors. It Features Intel H67 Express chipset with SATA 6Gb/s and digital output delivers smooth HD video playback for the best visual experience.




CPU Intel® Socket 1155 for Intel® 2nd Generation Core™ i7 Processor/Core™ i5 Processor/Core™ i3 Processor/
Support Enhanced Intel SpeedStep Technology (EIST)
Supports Intel® Turbo Boost Technology 2.0
The Intel® Turbo Boost technology 2.0 support depends on the CPU types
Refer to www.asus.com for Intel® CPU support list.

Chipset Intel® P67(B3) Express Chipset
Memory 4 x DIMM, Max. 32 GB, DDR3 2200(O.C.)*/2133(O.C.)*/1866(O.C.)/1600(O.C.)/1333/1066 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
According to Intel® SPEC, the Max. 32GB memory capacity can be supported with DIMMs of 8GB (or above). ASUS will update QVL once the DIMMs are available on the market.
Hyper DIMM support is subject to the physical characteristics of individual CPUs. Some hyper DIMMs only support one DIMM per channel. Please refer to Memory QVL for details.
Due to CPU behavior, DDR3 2200/2000/1800 MHz memory module will run at DDR3 2133/1866/1600 MHz frequency as default.

Expansion Slots 1 x PCIe 2.0 x16 slot (blue, single@16 mode)
1 x PCIe 2.0 x16 slot (black, max.@x4 mode, compatible with PCIe x 1 and x4 devices)
1 x PCIe 2.0 x1
1 x PCI

Storage Intel® P67(B3) Express Chipset
4 xSATA 3.0 Gb/s ports
2 xSATA 6.0 Gb/s ports
Intel Rapid Storage Technology Support RAID 0,1,5,10
JMicron® JMB361 controller
1 xUltraDMA 133/100/66
1 xExternal SATA

LAN Realtek® RTL8111E Gigabit LAN controller
Audio ALC887-VD2 8-Channel High Definition Audio CODEC
Optical S/PDIF Out port at back I/O
Supports Jack-Detection, Multi-streaming, Front Panel Jack-Retasking
IEEE 1394 VT6308P controller supports 2 x 1394a port(s) (1 port at mid-board, 1 port at back panel)
USB Chipset built-in
2 x USB 3.0/2.0 ports (blue, at back panel)
Chipset built-in
12 x USB 2.0/1.1 ports (6 ports at mid-board, 6 ports at back panel)

ASUS Unique Features
100% All High-quality Conductive Polymer Capacitors
ASUS Turbo V
Auto Tuning
Anti-Surge Protction
Mem OK!
ASUS EPU
CrossFireX Support
Protect 3.0
ASUS CrashFree BIOS 3
ASUS EZ Flash 2
ASUS MyLogo 2

Overclocking Features SFS (Stepless Frequency Selection)
Internal Base Clock tuning from 80MHz up to 300MHz at 1MHz increment
Overclocking Protection
ASUS C.P.R.(CPU Parameter Recall)

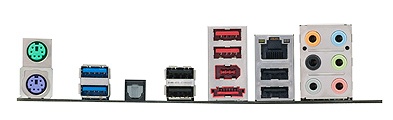

Back Panel I/O Ports
1 x PS/2 Mouse
1 x PS/2 Keyboard
1 x External SATA
1 x IEEE 1394a
1 x LAN(RJ45) port(s)
2 x USB 3.0/2.0 ports
6 x USB 2.0/1.1 ports
1 x S/PDIF Out (Optical)
8 -Channel Audio I/O

Internal I/O Connectors
3 x USB connectors support additional 6 USB ports
1 x MemOK! Button
1 x IDE connector
1 x TPM connector
2 x SATA 6.0Gb/s connectors
4 x SATA 3.0Gb/s connectors
1 x IEEE 1394a connector
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x Power Fan connector(s)
1 x LPT connector
1 x S/PDIF Out connector
1 x 24-pin ATX Power connector
1 x 8-pin ATX 12V Power connector
1 x Front panel audio connector
1 x COM connector
1 x System Panel connector

BIOS 32 Mb Flash ROM , EFI AMI BIOS, PnP, DMI2.0, WfM2.0, ACPI v2.0a, SM BIOS v2.6, Multi-language BIOS

Accessories User's manual
1 x I/O Shield
1 x UltraDMA 133/100/66 cable
2 x SATA 6.0Gb/s cables

Support Disc Drivers
Anti-virus software (OEM version)
ASUS Update
ASUS Utilities

Form Factor uATX Form Factor
9.6 inch x 8.8 inch ( 24.4 cm x 22.3 cm )
