ASUS P9D-C/4L LGA 1150 INTEL C224 DDR3
Description

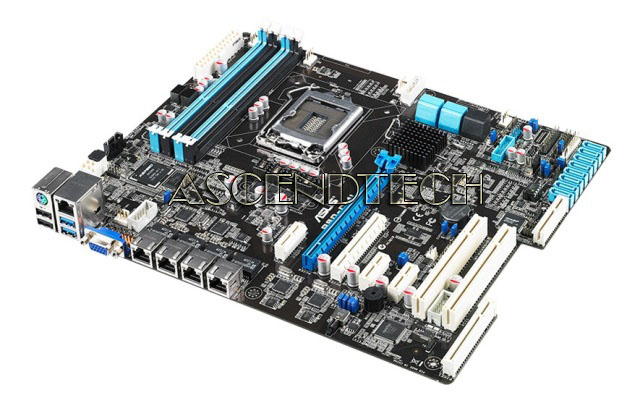

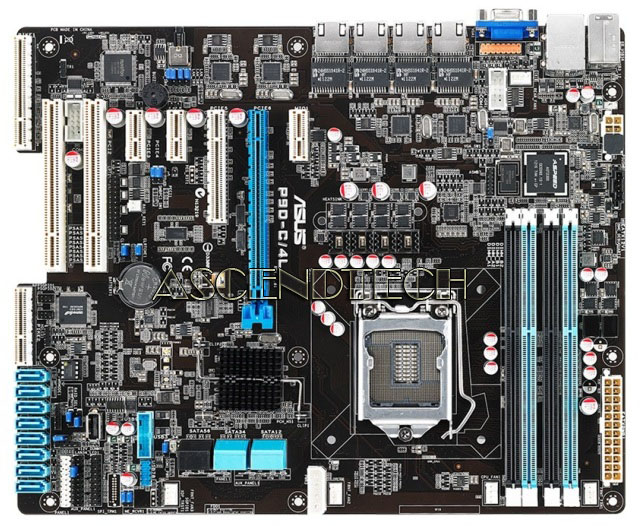

ASUS P9D-C/4L LGA 1150 Intel C224 DDR3 1600/1333 ATX Server Motherboard. The ASUS P9D-C/4L provides a cost-efficient server board without compromising on performance and scalability. It supports the latest Intel Xeon E3-1200 v3 processor family, PCI Express 3.0, and legacy PCI for diverse applications. With all these features, the P9D-C/4L fits great as part of a firewall, gateway, web/printer/mail server, and more.
Features:
The most scalable I/O expandability
The ASUS P9D-C/4L provides PCI Express 3.0 slots and ASUS PIKE support. Additionally, it retains legacy PCI slots onboard to meet more diverse customer requirements. Users can move their existing PCI add-on cards to the P9D-C/4L, and still benefit from up-to-date Intel Xeon E3-1200 v3 processors and fast DDR3 memory. The P9D-C/4L server board are built to support up to 4 USB 3.0 ports, which connect easily with next generation components and peripherals. USB 3.0 transfers data 10X faster than USB 2.0, while remaining fully backward compatible.
High power efficiency with premium components and digital power control
ASUS-exclusive Beat Thermal Chokes improve voltage regulator power efficiency. They handle greater stress with ease, as a unique fin design results in around 4°C lower choke temperatures for added stability, which is increased exponentially by use of highly conductive and efficient gold-treated coating. This translates into minimal-loss power delivery. Digital CPU power controls work perfectly together to match digital power signal (SVID) requests from the CPU, with ultra-fast sensing and response efficiently delivering precision power. Accurate delivery reduces waste, and provides more stable voltage. The benefits from these components significantly increase P9D-C/4L power efficiency up to 91%.
Quad Intel I210AT Gigabit Ethernet
The ASUS P9D-C/4L ships with quad server-class Intel Ethernet ports with the I210 controllers, which doubles queuing capacity compared to previous-generation Intel 82574L controllers. This is better for virtualization applications while providing teaming functionality for higher networking bandwidth with better load balancing and fault tolerance. This design greatly reduces data processing bottlenecks during network traffic.
SATA DOM (Disk on Module) ready
A SATA DOM is a flash drive simulating a hard disc, which can be used without additional software or drivers. It is particularly helpful within embedded computing systems or thin clients. The ASUS-exclusive design adds an onboard 4-pin power connector and a USB header to make SATA DOM installation simple and easy.
Comprehensive server management: ASMB7-iKVM and ASWM Enterprise
The ASMB7-iKVM upgrade kit enables dashboard system health monitoring, remote power on/off and control, virtual media over LAN, and management LAN fail-over support. In addition, the ASMB7 function is based on BIOS-level access, so even if the server’s operating system is down or offline, the KVM module can still provide round-the-clock remote monitoring and diagnosis through a user-friendly web-based graphical interface via all major browsers. ASWM Enterprise software provides one-to-multiple centralized management, including BIOS flash, remote control, and power control, all through a colorful and informative graphical interface.
Friendly Design for front I/O, front VGA
An accessible rear power button is reserved onboard for use as front panel ports when reversing the serverboard. An extra 15-pin VGA header features front-panel monitor connectivity, helping customers with greater flexibility. These designs provide flexible I/O integration for users to fit in various computing environments.
Specifications:
| Brand | • ASUS |
| Model | • P9D-C/4L |
| CPU Support | • 1 x Socket LGA1150 • Intel Xeon processor E3-1200 v3 product family • 4th Gen Intel Core i3 processors • Intel Pentium processors • Intel Celeron processors |
| Memory Capacity | • Maximum up to 32GB UDIMM Capacity, 4 (2-channel) Slots |
| Memory Type | • DDR3 1600/1333 UDIMM with ECC |
| Memory DIMM Sizes | • 8GB, 4GB, 2GB |
| Chipset | • Intel C224 |
| Expansion Slots | • Total Slot : 6 • Slot Location 1 : PCI 32bit/33MHz • Slot Location 2 : PCI 32bit/33MHz • Slot Location 3 : PCI-E x1 (Gen2 X1 Link) • Slot Location 4 : PCI-E x1 (Gen2 X1 Link) • Slot Location 5 : PCI-E x8 (Gen3 X4 Link) • Slot Location 6 : PCI-E x16 (Gen3 X8 Link) • Slot Location 7 : MIO Slot for Audio card • Additional Slot 1 : PIKE Slot for Stroage expansion |
| SATA Controller | • Intel C224 |
| SATA | • 4 x SATA3 6Gb/s ports • 2 x SATA2 3Gb/s ports • Intel Rapid Storage Technology Enterprise(RSTe) (For Windows Only) • (Support Software RAID 0, 1, 5, 10 ) • LSI® MegaRAID (For Linux/Windows) • (Support Software RAID 0, 1, 10 ) |
| Network Controllers | • 4 x Intel® I210AT + 1 x Mgmt LAN |
| Graphics | • Aspeed AST2300 with 32MB VRAM |
| On Board I/O | • 1 x TPM header • 1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector) • 1 x Management Connector , Onboard header for management card • 1 x USB 3.0 pin header , Up to 2 Devices • 1 x USB 2.0 pin header , Up to 2 Devices • 1 x Internal A Type USB Port • 5 x Fan Header , 4pin • 1 x SMBus • 1 x Chassis Intruder • 4 x Front LAN LED • 2 x Serial Port Header • 1 x SATA DOM Power connector • 1 x VGA Header |

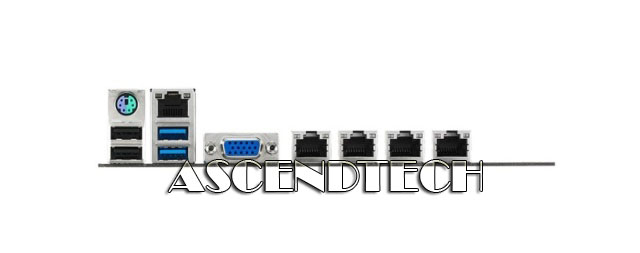

| Back I/O Ports | • 4 x External USB Port (2 x USB 3.0, 2 x USB 2.0) • 1 x VGA Port • 4 x RJ-45 + 1 x Mgmt LAN • 1 x PS/2 KB/Mouse |
| Management Solution | • Software: ASWM Enterprise |
| Regulatory Compliance | • CE, C-Tick, FCC(Class B) |
| Environment | • Operation temperature: 10C ~ 35C • Non operation temperature: -40C ~ 70C • Non operation humidity: 20% ~ 90% ( Non condensing) |
| Monitoring | • CPU Temperature • Fan RPM |
| ASUS Features | • FAN speed control • Rack Ready (Rack and Pedestal dual use) • ASWM Enterprise |
| Form Factor | • ATX |
| Dimensions | • 12" x 9.6" |
CPU Support list:
| CPU | Since PCB | Since BIOS | Note |
| Celeron G1820(2.7GHz, 2C, L3:2M, GT1, 54W, rev.C0) | 1.02 | 0601 | Not Support the Integrated Graphics Controller. |
| Celeron G1820T(2.4GHz, 2C, L3:2M, GT1, 35W, rev.C0) | 1.02 | 0601 | Not Support the Integrated Graphics Controller. |
| Celeron G1830(2.8GHz, 2C, L3:2M, GT1, 54W, rev.C0) | 1.02 | 0601 | Not Support the Integrated Graphics Controller. |
| Celeron G1840(2.8GHz, 2C, L3:2M, GT1, 53W, rev.C0) | 1.02 | 0704 | Not Support the Integrated Graphics Controller. |
| Celeron G1840T(2.5GHz, 2C, L3:2M, GT1, 35W, rev.C0) | 1.02 | 0704 | Not Support the Integrated Graphics Controller. |
| Celeron G1850(2.9GHz, 2C, L3:2M, GT1, 53W, rev.C0) | 1.02 | 0704 | Not Support the Integrated Graphics Controller. |
| Core i3-4130 (3.4GHz, 2C, HT, L3:3M, GT2, 54W, rev.C0) | 1.02 | 0501 | Not Support the Integrated Graphics Controller. |
| Core i3-4130T (2.9GHz, 2C, HT, L3:3M, GT2, 35W, rev.C0) | 1.02 | 0501 | Not Support the Integrated Graphics Controller. |
| Core i3-4150 (3.5GHz, 2C, HT, L3:3M, HD Graphic, 54W, rev.C0) | 1.02 | 0704 | Not Support the Integrated Graphics Controller. |
| Core i3-4150T (3.0GHz, 2C, HT, L3:3M, HD Graphic, 35W, rev.C0) | 1.02 | 0704 | Not Support the Integrated Graphics Controller. |
| Core i3-4160 (3.6GHz, 2C, HT, L3:3M, GT2, 54W, rev.C0) | 1.02 | 0704 | |
| Core i3-4160T (3.1GHz, 2C, HT, L3:3M, GT2, 35W, rev.C0) | 1.02 | 0704 | |
| Core i3-4330 (3.5GHz, 2C, HT, L3:4M, GT2, 54W, rev.C0) | 1.02 | 0501 | Not Support the Integrated Graphics Controller. |
| Core i3-4330T (3.0GHz, 2C, HT, L3:4M, GT2, 35W, rev.C0) | 1.02 | 0501 | Not Support the Integrated Graphics Controller. |
| Core i3-4340 (3.6GHz, 2C, HT, L3:4M, GT2, 54W, rev.C0) | 1.02 | 0501 | Not Support the Integrated Graphics Controller. |
| Core i3-4350 (3.6GHz, 2C, HT, L3:4M, HD Graphic, 54W, rev.C0) | 1.02 | 0704 | Not Support the Integrated Graphics Controller. |
| Core i3-4350T (3.1GHz, 2C, HT, L3:4M, HD Graphic, 35W, rev.C0) | 1.02 | 0704 | Not Support the Integrated Graphics Controller. |
| Core i3-4360 (3.7GHz, 2C, HT, L3:4M, HD Graphic, 54W, rev.C0) | 1.02 | 0704 | Not Support the Integrated Graphics Controller. |
| Core i3-4360T (3.2GHz, 2C, HT, L3:4M, GT2, 35W, rev.C0) | 1.02 | 0704 | |
| Core i3-4370 (3.8GHz, 2C, HT, L3:4M, GT2, 54W, rev.C0) | 1.02 | 0704 | |
| Pentium G3220 (3.0GHz, 2C, L3:3M, GT1, 53W, rev.C0) | 1.02 | 0501 | Not Support the Integrated Graphics Controller. |
| Pentium G3220T (2.6GHz, 2C, L3:3M, GT1, 35W, rev.C0) | 1.02 | 0501 | Not Support the Integrated Graphics Controller. |
| Pentium G3240 (3.1GHz, 2C, L3:3M, GT1, 53W, rev.C0) | 1.02 | 0704 | Not Support the Integrated Graphics Controller. |
| Pentium G3240T (2.7GHz, 2C, L3:3M, GT1, 35W, rev.C0) | 1.02 | 0704 | Not Support the Integrated Graphics Controller. |
| Pentium G3250 (3.2GHz, 2C, L3:3M, GT1, 53W, rev.C0) | 1.02 | 0704 | |
| Pentium G3250T (2.8GHz, 2C, L3:3M, GT1, 35W, rev.C0) | 1.02 | 0704 | |
| Pentium G3420 (3.2GHz, 2C, L3:3M, GT1, 53W, rev.C0) | 1.02 | 0501 | Not Support the Integrated Graphics Controller. |
| Pentium G3420T (2.7GHz, 2C, L3:3M, GT1, 35W, rev.C0) | 1.02 | 0501 | Not Support the Integrated Graphics Controller. |
| Pentium G3430 (3.3GHz, 2C, L3:3M, GT1, 53W, rev.C0) | 1.02 | 0501 | Not Support the Integrated Graphics Controller. |
| Pentium G3440 (3.3GHz, 2C, L3:3M, GT1, 53W, rev.C0) | 1.02 | 0704 | Not Support the Integrated Graphics Controller. |
| Pentium G3440T (2.8GHz, 2C, L3:3M, GT1, 35W, rev.C0) | 1.02 | 0704 | Not Support the Integrated Graphics Controller. |
| Pentium G3450 (3.4GHz, 2C, L3:3M, GT1, 53W, rev.C0) | 1.02 | 0704 | Not Support the Integrated Graphics Controller. |
| Pentium G3450T (2.9GHz, 2C, L3:3M, GT1, 35W, rev.C0) | 1.02 | 0704 | |
| Pentium G3460 (3.5GHz, 2C, L3:3M, GT1, 53W, rev.C0) | 1.02 | 0704 | |
| Xeon E3-1220 V3 (3.1GHz, 4C, HT, L3:8M, 80W, rev.C0) | 1.02 | 0215 | |
| Xeon E3-1220L V3 (1.1GHz, 2C, HT, L3:4M, 13W, rev.C0) | 1.02 | 0215 | |
| Xeon E3-1225 V3 (3.2GHz, 4C, HT, L3:8M, 84W, rev.C0) | 1.02 | 0215 | Not Support the Integrated Graphics Controller. |
| Xeon E3-1226 V3 (3.3GHz, 4C, HT, L3:8M, 84W, rev.C0) | 1.02 | 0704 | Not Support the Integrated Graphics Controller. |
| Xeon E3-1230 V3 (3.3GHz, 4C, HT, L3:8M, 80W, rev.C0) | 1.02 | 0215 | |
| Xeon E3-1230L V3 (1.8GHz, 4C, HT, L3:8M, 25W, rev.C0) | 1.02 | 0215 | |
| Xeon E3-1231 V3 (3.4GHz, 4C, HT, L3:8M, 80W, rev.C0) | 1.02 | 0704 | |
| Xeon E3-1240 V3 (3.4GHz, 4C, HT, L3:8M, 80W, rev.C0) | 1.02 | 0215 | |
| Xeon E3-1240L V3 (2.0GHz, 4C, HT, L3:8M, 25W, rev.C0) | 1.02 | 0704 | |
| Xeon E3-1241 V3 (3.5GHz, 4C, HT, L3:8M, 80W, rev.C0) | 1.02 | 0704 | |
| Xeon E3-1245 V3 (3.4GHz, 4C, HT, L3:8M, 84W, rev.C0) | 1.02 | 0215 | Not Support the Integrated Graphics Controller. |
| Xeon E3-1246 V3 (3.5GHz, 4C, HT, L3:8M, 84W, rev.C0) | 1.02 | 0704 | Not Support the Integrated Graphics Controller. |
| Xeon E3-1265L V3 (2.5GHz, 4C, HT, L3:8M, 45W, rev.C0) | 1.02 | 0215 | Not Support the Integrated Graphics Controller. |
| Xeon E3-1270 V3 (3.5GHz, 4C, HT, L3:8M, 80W, rev.C0) | 1.02 | 0215 | |
| Xeon E3-1271 V3 (3.6GHz, 4C, HT, L3:8M, 80W, rev.C0) | 1.02 | 0704 | |
| Xeon E3-1275 V3 (3.5GHz, 4C, HT, L3:8M, 84W, rev.C0) | 1.02 | 0215 | Not Support the Integrated Graphics Controller. |
| Xeon E3-1275L V3 (2.7GHz, 4C, HT, L3:8M, 45W, rev.C0) | 1.02 | 0704 | Not Support the Integrated Graphics Controller. |
| Xeon E3-1276 V3 (3.5GHz, 4C, HT, L3:8M, 84W, rev.C0) | 1.02 | 0704 | Not Support the Integrated Graphics Controller. |
| Xeon E3-1280 V3 (3.6GHz, 4C, HT, L3:8M, 82W, rev.C0) | 1.02 | 0215 | |
| Xeon E3-1281 V3 (3.7GHz, 4C, HT, L3:8M, 82W, rev.C0) | 1.02 | 0704 | |
| Xeon E3-1285 V3 (3.6GHz, 4C, HT, L3:8M, 84W, rev.C0) | 1.02 | 0215 | Not Support the Integrated Graphics Controller. |
| Xeon E3-1285L V3 (3.1GHz, 4C, HT, L3:8M, 65W, rev.C0) | 1.02 | 0215 | Not Support the Integrated Graphics Controller. |
| Xeon E3-1286 V3 (3.7GHz, 4C, HT, L3:8M, 84W, rev.C0) | 1.02 | 0704 | Not Support the Integrated Graphics Controller. |
| Xeon E3-1286L V3 (3.2GHz, 4C, HT, L3:8M, 65W, rev.C0) | 1.02 | 0704 | Not Support the Integrated Graphics Controller. |
