ASUS PRIME B350 AND Ryzen 7 1700

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

Enlarge

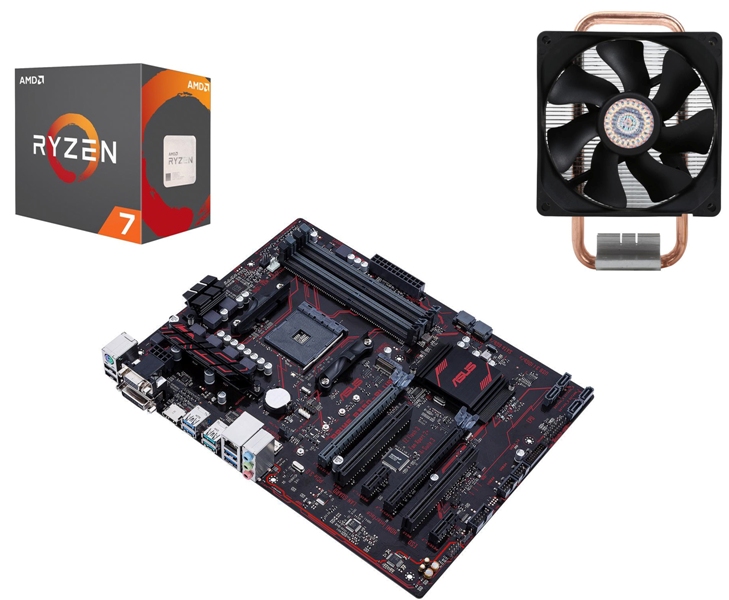

Asus Prime B350 And Ryzen 7 1700

Asus Prime B350 And Ryzen 7 1700

Asus Prime B350 And Ryzen 7 1700

Asus Prime B350 And Ryzen 7 1700

*Note this image is for descriptional purposes.
Actual product may vary.

Item CodeMBCASUSB35R7170

BrandAsus / Asustek Computer

ModelAMD Ryzen 1700 Combo

CategoryMotherboard & Cpu - Customize Your Combo

Description

New Page 3

AMD RYZEN 7 1700 8-Core 3.0 GHz (3.7 GHz Turbo) Socket AM4 65W Desktop Processor
ASUS PRIME B350-PLUS AM4 AMD B350 SATA 6Gb/s USB 3.1 USB 3.0 HDMI ATX Motherboards - AMD

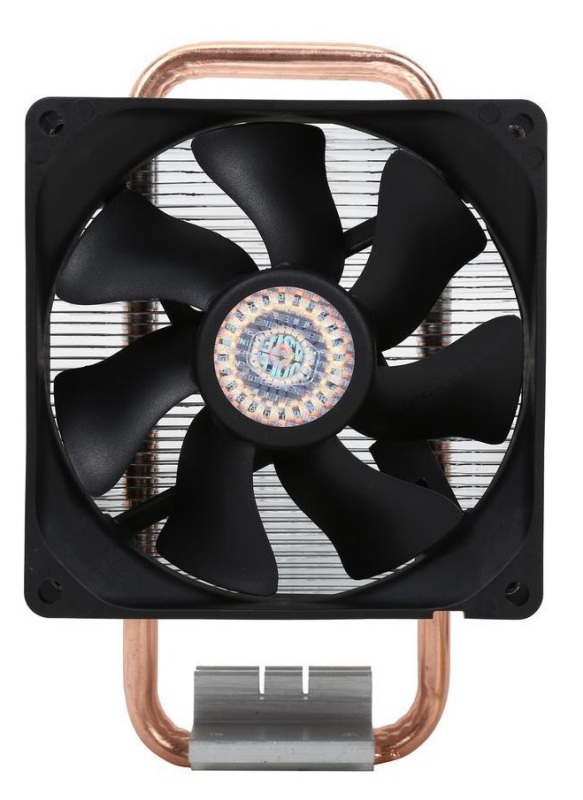

CPU Cooler

Learn more about the ASUS PRIME B350-PLUS

Model

Brand: ASUS

Model: PRIME B350-PLUS

Supported CPU

CPU Socket Type: AM4

CPU Type: Ryzen / Athlon / A-Series

Chipsets

Chipset: AMD B350

Memory

Number of Memory Slots: 4×288pin

Memory Standard: Ryzen Processors, DDR4 2666 / 2400 / 2133

Maximum Memory Supported: 64GB

Channel Supported: Dual Channel

Expansion Slots

PCI Express 3.0 x16: Ryzen Processors:
1 x PCI Express 3.0/2.0 x16 slot(max.@x16 mode)

PCI Express 2.0 x16: 1 x PCI Express 2.0 x16 slot (max.@x4 mode)
PCI Express x1: 2 x PCI Express 2.0 x1 slots

PCI Slots: 2 x PCI Slots

Storage Devices

SATA 6Gb/s: 6 x SATA 6Gb/s

M.2: Ryzen Processors
- 1 x M.2 socket 3 with M Key, Type 2242 / 2260 / 2280 / 22110 (PCIE 3.0 x4 and SATA modes)storage devices support
When a SATA / PCIE mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_5/6 ports

Onboard Video

Onboard Video Chipset: Integrated AMD Radeon R Series Graphics in the 7th Generation A-Series APU
Multi-VGA output support: HDMI, DVI-D, D-Sub ports
- Supports HDMI 1.4b with max. resolution 4096 x 2160@24Hz / 2560 x 1600@60Hz
- Supports DVI-D with max. resolution up to 1920 x 1200 @60Hz
- Supports D-Sub with max. resolution up to 1920 x 1200 @60Hz
- Maximum shared memory of 2048MB

Onboard Audio

Audio Chipset: Realtek ALC887-VD2

Audio Channels: 8 Channels

Onboard LAN

LAN Chipset: Realtek 8111H

Max LAN Speed: 10/100/1000Mbps

Rear Panel Ports

PS/2: 1 x PS/2 keyboard/mouse port

Video Ports: 1 x DVI-D port
1 x D-Sub port

HDMI: 1 x HDMI

RJ45: 1 x RJ45

USB 3.1: 2 x USB 3.1

USB 3.0: 4 x USB 3.0

USB 1.1/2.0: 2 x USB 2.0

Audio Ports: 3 x Audio jacks support 8-channel audio output

Physical Spec

Form Factor: ATX

Dimensions (W x L): 12.0" x 9.35"

Learn more about AMD Ryzen 7 1700

Model

Brand: AMD

Processors Type: Desktop

Series: Ryzen 7

Name: AMD Ryzen 7 1700

Details

CPU Socket Type: Socket AM4

Core Name: Summit Ridge

# of Cores: 8-Core

# of Threads: 16

Operating Frequency: 3.0 GHz

Max Turbo Frequency: 3.7 GHz

L1 Cache: 768KB

L2 Cache: 4MB

L3 Cache: 16MB

Manufacturing Tech: 14nm

Memory Types: DDR4

Memory Channel: 2

Virtualization Technology Support: Yes

PCI Express Revision: 3.0

Thermal Design Power: 65W
