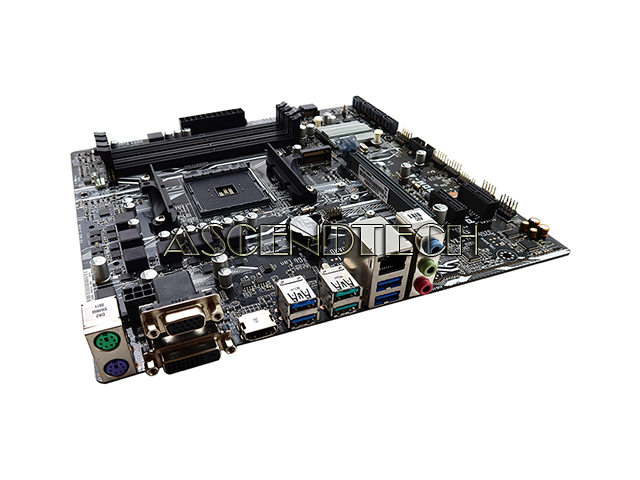

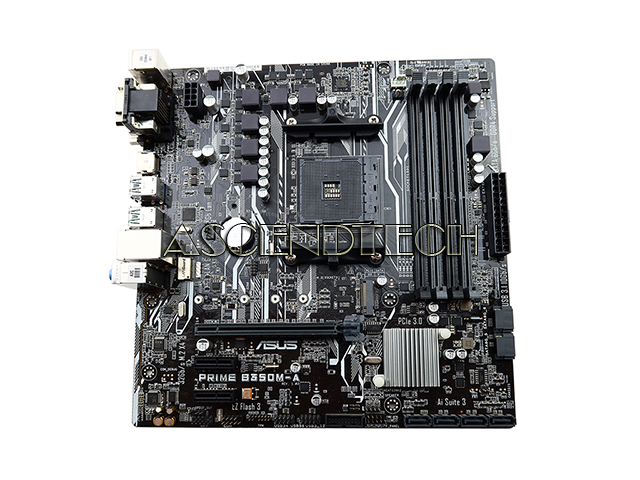

PRIME B350M-A 90-MB0TE0-M0EAY0 | Asus Prime B350m-A Motherboard No I/O

Asus PRIME B350M-A AMD Chipset B350 Socket AM4 DDR4 HDMI DVI-D USB SATA 6Gb/s Micro ATX Desktop Motherboard 90-MB0TE0-M0EAY0.

Chipset: AMD B350

Socket: AMD AM4

Compatible/Supported CPU: AMD Ryzen/7th Generation A-series/Athlon Processors

Max Supported Memory: 64GB

Number of Memory Slots: 4

Memory Type: DDR4 SDRAM

Storage Interface: SATA 6Gb/s

RAID Support: RAID 0, RAID 1 and RAID 10

Wireless Lan Support: Realtek RTL8111H Gigabit LAN Controller

Audio: Realtek ALC887 8-Channel High Definition Audio CODEC

Connectors: 1x Fan RGB header; 1x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin); 2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s); 1x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode); 1x COM port(s) connector(s); 6x SATA 6Gb/s connector(s); 1x CPU Fan connector(s) (1x 4 -pin); 1x Chassis Fan connector(s) (1x 4 -pin); 1x S/PDIF out header(s); 1x 24-pin EATX Power connector(s); 1x 8-pin ATX 12V Power connector(s); 1x Front panel audio connector(s) (AAFP); 1x System panel(s); 1x Clear CMOS jumper(s); 1x Speaker connector.

Input/Output Ports: 1x PS/2 keyboard (purple); 1x PS/2 mouse (green); 1x DVI-D; 1x D-Sub; 1x HDMI; 1x LAN (RJ45) port(s); 2x USB 3.1 Gen 2 (teal blue); 4x USB 3.1 Gen 1 (blue); 3x Audio jack(s).

Expansion Slots: AMD Ryzen Processors - 1 x PCIe 3.0/2.0 x16 (x16 mode); AMD 7th Generation A-series/Athlon Processors - 1 x PCIe 3.0/2.0 x16 (x8 mode); AMD B350 chipset - 2 x PCIe 2.0 x1.

Form Factor: Micro ATX

Type: Desktop Motherboard

Supported Operating System: Windows 10 64-bit

Features: 5X Protection III: Multiple hardware safeguards for all-round protection; LED illumination: Lighting control for both PCIe slot and audio trace paths; Native M.2: Lightning-fast storage speeds; Onboard USB 3.1: Latest connectivity for ultrafast 10Gbps transfers; One-stop controls: Media-acclaimed UEFI BIOS with EZ Flash 3

Additional Specifications:

Graphic
Integrated AMD Radeon R Series Graphics in the 7th Generation A-Series APU
Multi-VGA output support: HDMI/DVI/RGB ports
- Supports HDMI 1.4b with max. resolution 4096 x 2160 24 Hz / 2560 x 1600 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 60 Hz
- Supports RGB with max. resolution 1920 x 1200 60 Hz
Maximum shared memory of 2048 MB (for iGPU exclusively)

USB
3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega ASMedia USB 3.1 Gen 2 controller:
2 x USB 3.1 port(s) (2 at back panel, teal blue)
AMD Ryzen/7th Generation A-series/Athlon Processors:
4 x USB 3.0 port(s) (4 at back panel, blue)
AMD B350 chipset:
2 x USB 3.0 port(s) (2 at mid-board)
4 x USB 2.0 port(s) (4 at mid-board)

Special Features
ASUS 5X Protection III:
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 6 Phase digital power design
ASUS Exclusive Features:
- AI Suite 3
- Ai Charger
- PC Cleaner
ASUS Quiet Thermal Solution:
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Multi-language BIOS
ASUS Q-Design:
- ASUS Q-Slot
- ASUS Q-DIMM

BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP,WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control.
