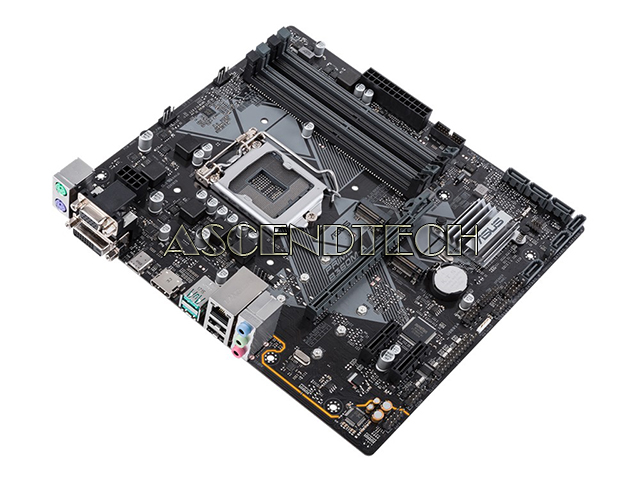

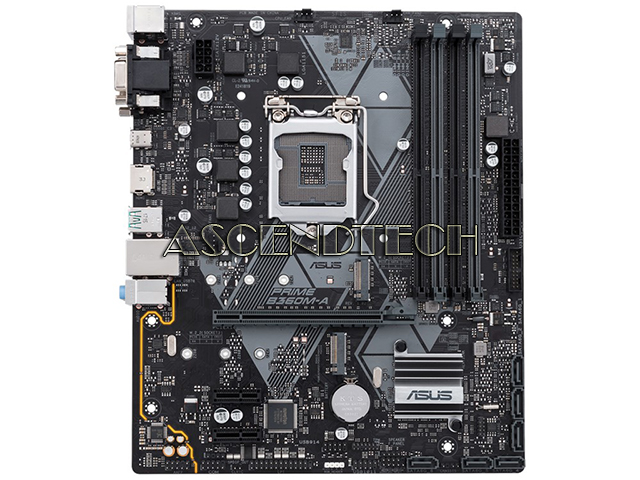

PRIME B360M-A MB0WQ0 | Asus Prime B360m-A Motherboard No I/O

ASUS PRIME B360M-A Intel Chipset B360 Socket LGA1151 VGA DVI HDMI DDR4 SATA 6Gb/s Micro ATX Desktop Motherboard MB0WQ0.

Chipset: Intel B360

Socket: Intel LGA1151

Compatible/Supported CPU: Intel Socket 1151 for 8th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors

Max Supported Memory: 64GB

Number of Memory Slots: 4

Memory Type: DDR4 SDRAM

Speed: 2666/2400/2133 MHz

Error Correction (ECC): Non-ECC

Connectors: 1x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin); 2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s); 2x M.2 Socket 3 for M Key, type 2242/2260/2280 devices; 1x TPM header; 1x LPT header; 1x COM port(s) connector(s); 6x SATA 6Gb/s connector(s); 1x S/PDIF out header(s)

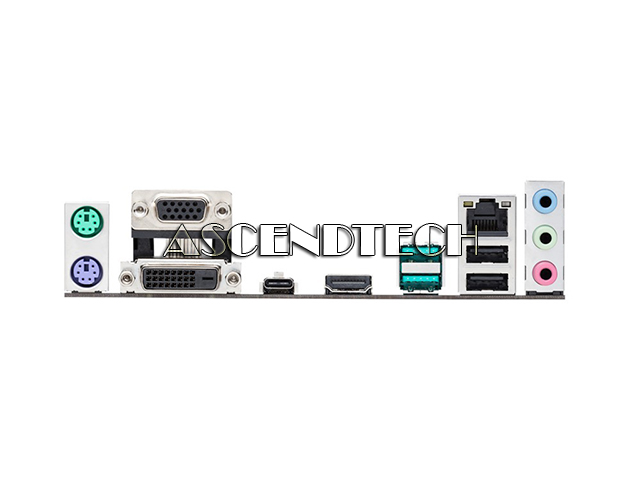

Input/Output Ports: 1x PS/2 keyboard (purple); 1x PS/2 mouse (green); 1x DVI-D; 1x D-Sub; 1x HDMI; 1x LAN (RJ45) port; 2x USB 3.1 Gen 2 (teal blue)Type-A, up to 10Gbps; 1x USB 3.1 Gen 1 USB Type-C, up to 5Gbps; 2x USB 2.0; 1x 8-channel Audio I/O

Expansion Slots: 1x PCIe 3.0 x16 (x16 mode), 2x PCIe 3.0/2.0 x1

Form Factor: Micro ATX

Type: Desktop Motherboard

Supported Operating System: Windows 10-64bit

Additional Specifications:

Graphic

Integrated Graphics Processor- Intel HD Graphics support
Multi-VGA output support: HDMI/DVI-D/RGB ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB (for iGPU exclusively)
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider

Audio

Realtek ALC887 8-Channel High Definition Audio CODEC
- Supports: Jack-detection, Front Panel Jack-retasking
Audio Feature:
- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

Special Features

ASUS 5X Protection III:
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: Premium components provide better power efficiency
ASUS OptiMem：
- Optimem (Improved DDR4 stability)
ASUS EPU:
- EPU
ASUS Exclusive Features:
- AI Suite 3
- Ai Charger
- PC Cleaner
- File Transfer
ASUS Quiet Thermal Solution:
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert 2+
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design:
- ASUS Q-DIMM
M.2 Onboard (The latest transfer technologies with up to 32Gb/s data transfer speeds)

Asus PRIME B360M-A Motherboard No I/O
