PRIME B450M-A II MB15Z0-B01 | Asus Prime B450m-A Ii Motherboard No I/O

Asus PRIME B450M-A II Motherboard No I/O

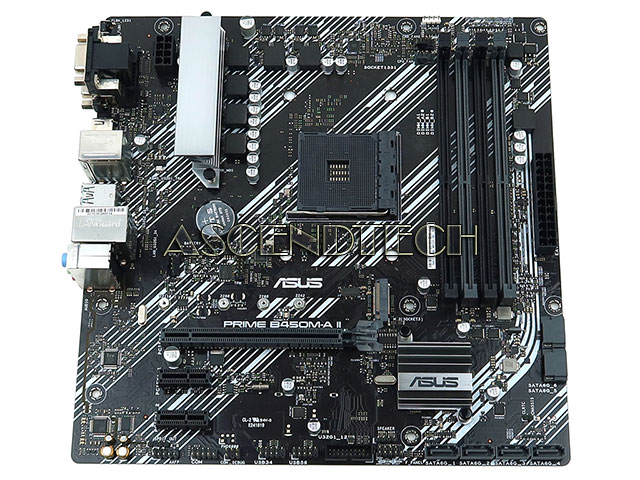

Enlarge

*Note this image is for descriptional purposes.
Actual product may vary.

Price: $79.99 Free Shipping!

Qty:

Available Qty. 1

Item Code MBDSKPRB450MAII

Brand Asus / Asustek Computer

Model PRIME B450M-A II

Part Number MB15Z0-B01

Compatible Part Numbers MB15Z0-B03

Category Amd Socket Am4 Motherboard

Condition Like New Grade A

Condition Description Please note, this motherboard does not include I/O Shield, fan bracket, fan backplate, or any other accessories!

Add-ons / Accessories

If you wish to order addon / accessories please checkoff the box next to the addon items and press the add to cart button.

$9.99

Pre-Test My Motherboard Before It Ships

Description

Asus PRIME B450M-A II AMD Chipset B450 Socket AM4 DDR4 USB HDMI DVI-D VGA SATA 6GB/s Micro ATX Desktop Motherboard MB15Z0-B01.

Chipset: AMD B450

Socket: AMD AM4

Max Supported Memory: 128GB

Number of Memory Slots: 4

Memory Type: DDR4 SDRAM

Speed: 4400MHz(O.C)/4000MHz(O.C.)/3866MHz(O.C.)/3733MHz(O.C.)/3600MHz(O.C.)/3466MHz(O.C.)/3400MHz(O.C.)/3300MHz(O.C.)/3200MHz(O.C.)/3000MHz(O.C.)/2800MHz(O.C.)/2666MHz/2400MHz/2133MHz

Storage Interface: SATA 3 6Gb/s

RAID Support: 0, 1, 10

Network/Communications: Realtek RTL8111H

Audio: Realtek ALC887/897 7.1-Channel High Definition Audio CODEC

Connectors: 1x CPU Fan connector(s) (1 x 4 -pin), 2x Chassis Fan connector(s) (2 x 4 -pin), 1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin), 2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 1x SPI TPM header, 1x COM port(s) connector(s), 1x S/PDIF out header(s), 1x 24-pin EATX Power connector(s), 1x 8-pin ATX 12V Power connector(s), 1x Front panel audio connector(s) (AAFP), 1x System panel(s), 1x Clear CMOS jumper(s), 1x COM port header, 1x Speaker connector, 1x RGB Header

Input/Output Ports: 1x PS/2 keyboard/mouse combo port(s), 1x DVI-D, 1x D-Sub, 1x HDMI, 1x LAN (RJ45) port(s), 2x USB 3.2 Gen 2 (teal blue) (2 x Type-A), 4x USB 3.2 Gen 1 (blue) Type-A, 3x Audio jack(s), 1x BIOS FlashBack Button(s)

Expansion Slots: 1x PCIe 3.0 x16 (x16 mode), 2x PCIe 2.0 x1, 1x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode), 6x SATA 6Gb/s port(s)

Form Factor: Micro ATX

Type: Desktop Motherboard

Supported Operating System: Windows 10 64-bit / Windows 7 64-bit

Additional Specifications:

Onboard Graphics
Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
1x D-Sub
1x DVI-D
1x HDMI 2.0b
Graphics specifications may vary between CPU types.

Asus Special Features
ASUS 5X PROTECTION III
- ASUS DIGI+ VRM
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot Core
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
AURA Sync
- AURA RGB header
ASUS Lighting Control

Asus Software Features
ASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
AI Suite 3
- Performance and Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert 2+
PC Cleaner
- EZ update
- System Information
ASUS CPU-Z
AI Charger
ASUS EZ Installer
DAEMON Tools
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

BIOS
256 Mb Flash ROM, UEFI AMI BIOS
