Asus PRIME B650M-A AX II Mboard No I/O

Asus Prime B650m-A Ax Ii Mboard No I/O. Part Number: Mb1ed0-A01
  Enlarge

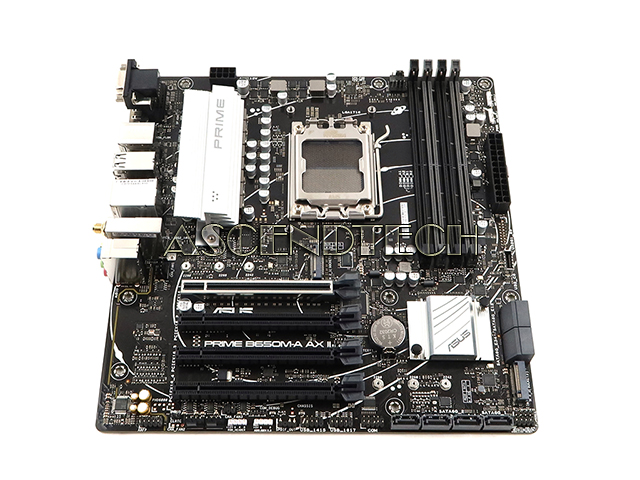

Asus Prime B650m-A Ax Ii Mboard No I/O. Part Number: Mb1ed0-A01

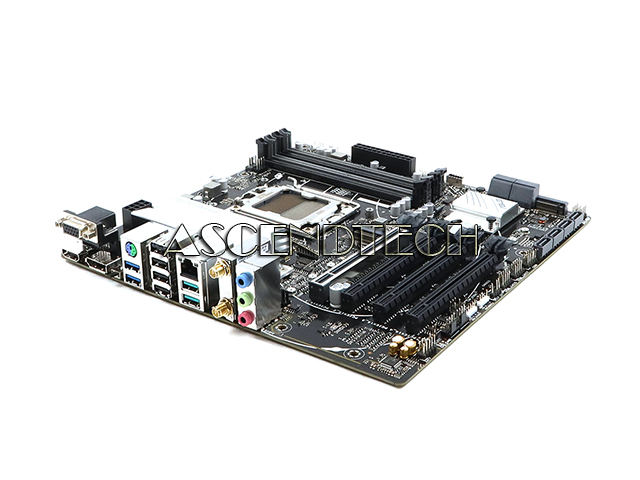

Asus Prime B650m-A Ax Ii Mboard No I/O. Part Number: Mb1ed0-A01
*Note this image is for descriptional purposes.
Actual product may vary.
Qty:
Item Code MBDSKB650MAXIIA
Brand Asus / Asustek Computer
Model PRIME B650M-A AX II
Part Number MB1ED0-A01
Compatible Part Numbers MB1ED0-A08 MB1ED0-A1A MB1ED0-A19
Category Amd Socket Am5 Motherboard
Condition Like New Grade A
Condition Description Please note, this motherboard does not include an I/O Shield, cables, fan’s bracket, or any other accessories!

Add-ons / Accessories

If you wish to order addon / accessories please checkoff the box next to the addon items and press the add to cart button.

$9.99
Pre-Test My Motherboard Before It Ships
Pre-Test My Motherboard Before It Ships

Description

Asus PRIME B650M-A AX II AMD Chipset B650 Socket AM5 DDR5 HDMI VGA DisplayPort SATA 6Gb/s mATX Desktop Motherboard MB1ED0-A01.

Chipset: AMD B650
Socket: AMD AM5
Compatible/Supported CPU: Supports AMD Ryzen 7000 / 8000 Series Desktop Processors
Max Supported Memory: 192GB
Number of Memory Slots: 4
Memory Type: DDR5 SDRAM
Speed: 7600+ (OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200 / 5000 / 4800MHz
Storage Interface: SATA 6Gb/s
RAID Support: 0, 1, 10
Bluetooth Standard: Bluetooth 5.2
Wireless Lan Support: 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Supports 2.4/5GHz frequency band
Network/Communications: Realtek 2.5Gb Ethernet
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
Connectors: 1x 4-pin CPU Fan header, 1x 4-pin CPU OPT Fan header, 3x 4-pin Chassis Fan headers, 1x 24-pin Main Power connector, 1x 8-pin +12V Power connector, Storage related, 1x USB 3.2 Gen 1 connector (supports USB Type-C ), 1x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports, 2x USB 2.0 headers support 4 additional USB 2.0 ports, 3x Addressable Gen 2 headers, 1x Aura RGB header, 1x Clear CMOS header, 1x COM Port header, 1x Front Panel Audio header (AAFP), 1x S/PDIF Out header, 1x Speaker header, 1x SPI TPM header (14-1pin), 1x 10-1 pin System Panel header
Input/Output Ports: 2x USB 3.2 Gen 2 ports (2 x Type-A), 2x USB 3.2 Gen 1 ports (2 x Type-A), 4x USB 2.0 ports (4 x Type-A), 1x DisplayPort, 1x VGA port, 1x HDMI port, 1x Wi-Fi Module, 1x Realtek 2.5Gb Ethernet port, 3x Audio jacks, 1x BIOS FlashBack button, 1x PS/2 Keyboard/Mouse combo port
Expansion Slots: 2x M.2 slots (Key M), 8x SATA 6Gb/s ports, 4x PCIe 4.0 x16 slots
Form Factor: mATX
Type: Desktop Motherboard
Supported Operating System: Windows 11, Windows 10 64-bit

Additional Specifications:

Graphics
1x DisplayPort
1x VGA port
1x HDMI port
Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
Supports max. 8K@60Hz as specified in DisplayPort 1.4.
Supports 4K@60Hz as specified in HDMI 2.1.

Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
AI Suite 3
- TurboV EVO
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

BIOS
256 Mb Flash ROM, UEFI AMI BIOS

Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- Safeslot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers

CPU Support:

Socket AM5
VendorCPU ModelFrequencyWattageL3 CacheCoreStepping
AMDRyzen 7 PRO 8700GE3.65GHz35W16MB8
AMDRyzen 7 8700G4.2GHz65W16MB8B2
AMDRyzen 7 PRO 8700G4.2GHz65W16MB8
AMDRyzen 7 8700F4.1GHz65W16MB8
AMDRyzen 5 PRO 8600GE3.9GHz35W16MB6
AMDRyzen 5 8600G4.35GHz65W16MB8B2
AMDRyzen 5 PRO 8600G4.35GHz65W16MB8
AMDRyzen 5 8500GE3.4GHz35W16MB6
AMDRyzen 5 PRO 8500GE3.4GHz35W16MB6
AMDRyzen 5 8500G3.55GHz65W16MB6B2
AMDRyzen 5 PRO 8500G3.55GHz65W16MB6B2
AMDRyzen 5 8400F4.2GHz65W16MB6
AMDRyzen 3 8300GE3.5GHz35W8MB4
AMDRyzen 3 PRO 8300GE3.5GHz35W8MB4
AMDRyzen 3 PRO 8300G3.45GHz65W8MB4B2
AMDRyzen 3 8300G3.45GHz65W8MB4B2
AMDRyzen 9 7950X4.5GHz170W64MB16
AMDRyzen 9 PRO 79453.7GHz65W64MB12
AMDRyzen 9 7950X3D4.2GHz120W128MB16
AMDRyzen 9 7900X3D4.4GHz120W128MB12B2
AMDRyzen 9 7900X4.7GHz170W64MB12
AMDRyzen 9 79003.7GHz65W64MB12B2
AMDRyzen 7 7800X3D4.2GHz120W96MB8B2
AMDRyzen 7 PRO 77453.8GHz65W32MB8
AMDRyzen 7 7700X4.5GHz105W32MB8
AMDRyzen 7 77003.8GHz65W32MB8B2
AMDRyzen 5 PRO 76453.8GHz65W32MB6
AMDRyzen 5 7600X4.7GHz105W32MB6
AMDRyzen 5 76003.8GHz65W32MB6B2
AMDRyzen 5 7500F3.7GHz65W32MB6
