Asus PRIME B650M-A AX6 Mboard No I/O

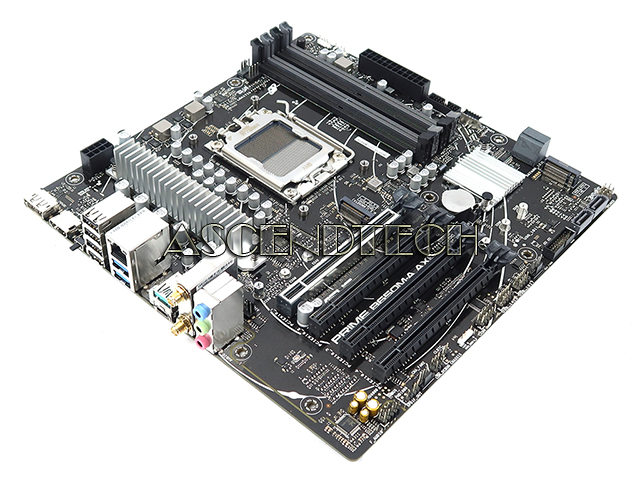

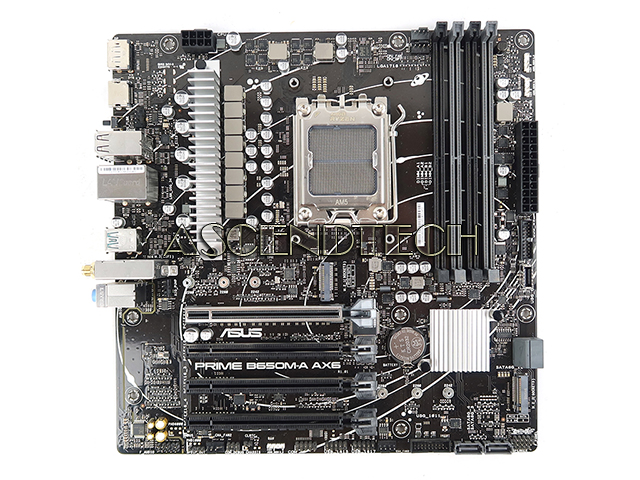

Asus Prime B650m-A Ax6 Mboard No I/O. Part Number: Mb1gz0-A01
  Enlarge
Asus Prime B650m-A Ax6 Mboard No I/O. Part Number: Mb1gz0-A01
Asus Prime B650m-A Ax6 Mboard No I/O. Part Number: Mb1gz0-A01
*Note this image is for descriptional purposes.
Actual product may vary.
Qty:
Item Code MBDSKB650MAAXA2
Brand Asus / Asustek Computer
Model PRIME B650M-A AX6
Part Number MB1GZ0-A01
Compatible Part Numbers MB1GZ0-A02 MB1GZ0-A03
Category Amd Socket Am5 Motherboard
Condition Like New Grade A
Condition Description Please note, this motherboard comes with fan’s mounting backplate only! No I/O Shield, cables, fan’s bracket or any other accessories!

Add-ons / Accessories

If you wish to order addon / accessories please checkoff the box next to the addon items and press the add to cart button.

$9.99
Pre-Test My Motherboard Before It Ships
Pre-Test My Motherboard Before It Ships

Description

Asus PRIME B650M-A AX6 AMD Chipset B650 Socket AM5 DDR5 USB 3.2 SATA 6.0Gb/s DisplayPort HDMI mATX Desktop Motherboard MB1GZ0-A01.

Chipset: AMD B650
Socket: AMD AM5
Compatible/Supported CPU: AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Max Supported Memory: 192GB
Number of Memory Slots: 4
Memory Type: DDR5 SDRAM
Speed: 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory
Storage Interface: SATA 6.0Gb/s
RAID Support: 0, 1, 10
Bluetooth Standard: Bluetooth 5.3
Wireless Lan Support: Wi-Fi 6 (802.11 a/b/g/n/ac/ax), supports 2.4/5GHz frequency band
Network/Communications: 1x Realtek 1Gb Ethernet
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
Connectors: 1x 4-pin CPU Fan header, 1x 4-pin CPU OPT Fan header, 1x 4-pin AIO Pump header, 3x 4-pin Chassis Fan headers, 1x 24-pin Main Power connector, 1x 8-pin +12V Power connector 3x M.2 slots (Key M), 4x SATA 6Gb/s ports, 1x USB 5Gbps connector (supports USB Type-C), 2x USB 5Gbps headers support 4 additional USB 5Gbps ports, 2x USB 2.0 headers support 4 additional USB 2.0 ports, 3x Addressable Gen 2 headers, 1x Clear CMOS header, 1x COM Port header, 1x Front Panel Audio header (F_AUDIO), 1x S/PDIF Out header, 1x Speaker header 1x SPI TPM header (14-1 pin), 1x 10-1 pin System Panel header
Input/Output Ports: 2x USB 10Gbps ports (1x Type-A + 1x USB Type-C), 2x USB 5Gbps ports (2x Type-A), 4x USB 2.0 ports (4x Type-A), 1x DisplayPort, 1x HDMI port, 1x Wi-Fi Module 1x Realtek 1Gb Ethernet port, 3x Audio jacks, 1x BIOS FlashBack button
Expansion Slots: 1x PCIe 4.0 x16 slot (supports x16 mode), 3x PCIe 4.0 x16 slots (support x1 mode)
Form Factor: mATX
Type: Desktop Motherboard
Supported Operating System: Windows 11, Windows 10 64-bit

Additional Specifications:

Onboard Graphics
1x DisplayPort
1x HDMI port
Graphics specifications may vary between CPU types.
Supports max. 4K@60Hz as specified in DisplayPort 1.4.
Supports 4K@60Hz as specified in HDMI 2.1.

Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
- Two-Way AI Noise Cancelation
AI Suite 3
- TurboV EVO
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode


BIOS
256 Mb Flash ROM, UEFI AMI BIOS

Unique Features
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
Aura Sync
- Addressable Gen 2 headers

CPU Support:

Socket AM5
VendorCPU ModelCPU FrequencyL3 CacheBIOSCoreWattage
AMDRyzen 9 9950X3D4.3GHz128MB261316170W
AMDRyzen 9 9950X4.3GHz64MB261316170W
AMDRyzen 9 PRO 99453.4GHz64MB32631265W
AMDRyzen 9 9900X3D4.4GHz128MB261312120W
AMDRyzen 9 9900X4.4GHz64MB261312120W
AMDRyzen 7 9850X3D4.7GHz96MB32638120W
AMDRyzen 7 9800X3D4.7GHz96MB26138120W
AMDRyzen 7 PRO 97453.8GHz32MB3263865W
AMDRyzen 7 9700X3.8GHz32MB2613865W
AMDRyzen 7 9700F3.8GHz32MB3263865W
AMDRyzen 5 PRO 96453.9GHz32MB3263665W
AMDRyzen 5 9600X3.9GHz32MB2613665W
AMDRyzen 5 96003.8GHz32MB2613665W
AMDRyzen 5 9500F3.8GHz32MB3263665W
AMDRyzen 7 PRO 8700GE3.65GHz16MBall835W
AMDRyzen 7 8700G4.2GHz16MBall865W
AMDRyzen 7 PRO 8700G4.2GHz16MBall865W
AMDRyzen 7 8700F4.1GHz16MBall865W
AMDRyzen 5 PRO 8600GE3.9GHz16MBall635W
AMDRyzen 5 8600G4.35GHz16MBall665W
AMDRyzen 5 PRO 8600G4.35GHz16MBall665W
AMDRyzen 5 8500GE3.4GHz16MBall635W
AMDRyzen 5 PRO 8500GE3.4GHz16MBall635W
AMDRyzen 5 8500G3.55GHz16MBall665W
AMDRyzen 5 PRO 8500G3.55GHz16MBall665W
AMDRyzen 5 8400F4.2GHz16MBall665W
AMDRyzen 3 8300GE3.5GHz8MBall435W
AMDRyzen 3 PRO 8300GE3.5GHz8MBall435W
AMDRyzen 3 PRO 8300G3.45GHz8MBall465W
AMDRyzen 3 8300G3.45GHz8MBall465W
AMDRyzen 9 7950X4.5GHz64MB60216170W
AMDRyzen 9 PRO 79453.7GHz64MB6021265W
AMDRyzen 9 7950X3D4.2GHz128MB60216120W
AMDRyzen 9 7900X3D4.4GHz128MB60212120W
AMDRyzen 9 7900X4.7GHz64MB60212170W
AMDRyzen 9 79003.7GHz64MB6021265W
AMDRyzen 7 7800X3D4.2GHz96MB6028120W
AMDRyzen 7 PRO 77453.8GHz32MB602865W
AMDRyzen 7 7700X4.5GHz32MB6028105W
AMDRyzen 7 77003.8GHz32MB602865W
AMDRyzen 5 PRO 76453.8GHz32MB602665W
AMDRyzen 5 7600X3D4.1GHz96MB602665W
AMDRyzen 5 7600X4.7GHz32MB6026105W
AMDRyzen 5 76003.8GHz32MB602665W
AMDRyzen 5 7500X3D4GHz96MBall665W
AMDRyzen 5 7500F3.7GHz32MB602665W
AMDRyzen 5 PRO 74453.3GHz16MB3263665W
AMDRyzen 5 7400F3.7GHz32MB602665W
AMDRyzen 5 74003.3GHz16MB3263665W
AMDEPYC 4584PX4.2GHz128MB261316120W
AMDEPYC 4564P4.5GHz64MB261316170W
AMDEPYC 4484PX4.4GHz128MB261312120W
AMDEPYC 4464P3.7GHz64MB26131265W
AMDEPYC 4364P4.5GHz32MB26138105W
AMDEPYC 4344P3.8GHz32MB2613865W
AMDEPYC 4244P3.8GHz32MB2613665W
AMDEPYC 4545P3GHz64MBall1665W
AMDEPYC 4585PX4.3GHz128MBall16170W
AMDEPYC 4565P4.3GHz64MBall16170W
AMDEPYC 4465P3.4GHz64MBall1265W
AMDEPYC 4345P3.8GHz32MBall865W
AMDEPYC 4245P3.9GHz32MBall665W
