Asus PRIME B660M-A AC D4 Motherboard

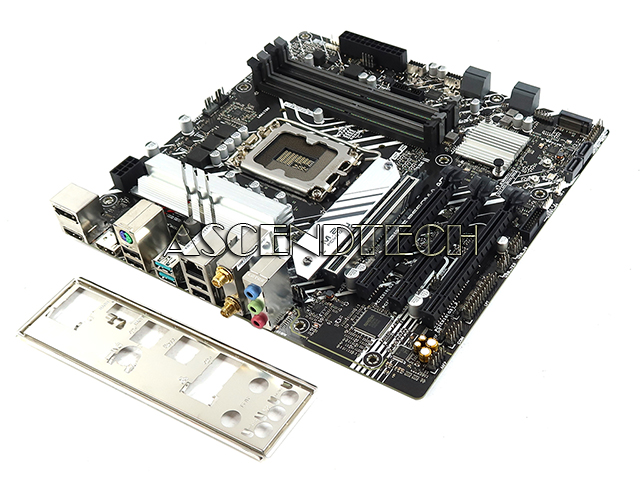

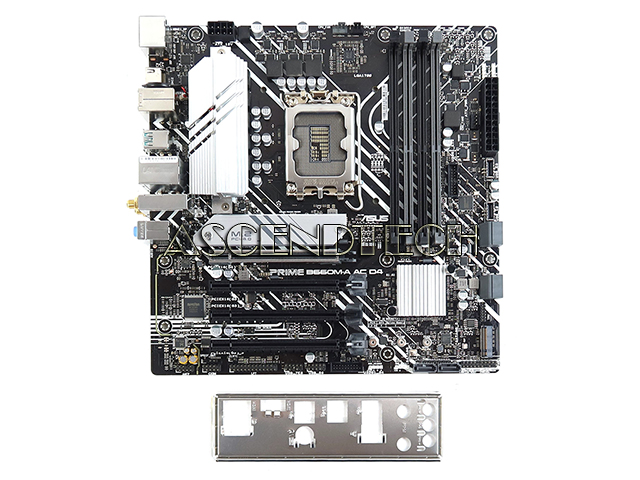

Asus Prime B660m-A Ac D4 Motherboard. Part Number: Mb19m0-A03
  Enlarge
Asus Prime B660m-A Ac D4 Motherboard. Part Number: Mb19m0-A03
Asus Prime B660m-A Ac D4 Motherboard. Part Number: Mb19m0-A03
*Note this image is for descriptional purposes.
Actual product may vary.
Qty:
Item Code MBDSKB660MAACDA
Brand Asus / Asustek Computer
Model PRIME B660M-A AC D4
Part Number MB19M0-A03
Category Intel Lga1700 Motherboard
Condition Like New Grade A
Condition Description Please note, this motherboard comes with I/O Shield only! No fan’s mounting backplate, fan’s bracket, cables or any other accessories!

Add-ons / Accessories

If you wish to order addon / accessories please checkoff the box next to the addon items and press the add to cart button.

$9.99
Pre-Test My Motherboard Before It Ships
Pre-Test My Motherboard Before It Ships

Description

Asus PRIME B660M-A AC D4 Intel Chipset B660 Socket LGA1700 DDR4 DisplayPort HDMI SATA 6Gb/s Micro ATX Desktop Motherboard MB19M0-A03.

Chipset: Intel B660
Socket: Intel LGA1700
Compatible/Supported CPU: 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors
Max Supported Memory: 128GB
Number of Memory Slots: 4
Memory Type: DDR4 SDRAM
Speed: 5333(OC) / 5000(OC) / 4800(OC) / 4600M(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000 (OC) / 3733 (OC) 3600 (OC) / 3466 (OC) / 3400 (OC) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133MHz
Storage Interface: SATA 6Gb/s, NVMe
RAID Support: 0/1/5/10.
Network/Communications: Intel 1Gb Ethernet
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
Connectors: Fan and Cooling related: 1x 4-pin CPU Fan header, 1x 4-pin CPU OPT Fan header, 2x 4-pin Chassis Fan headers, Power related, 1x 24-pin Main Power connector, 1x 8-pin +12V Power connector, Storage related: 2x M.2 slots (Key M), 6x SATA 6Gb/s ports, USB: 2x USB 3.2 Gen 1 connector (supports USB Type-C), 2x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports, 2x USB 2.0 headers support additional 4 USB 2.0 ports, Miscellaneous: 3x Addressable Gen 2 headers, 1x AURA RGB header, 1x Clear CMOS header, 1x COM Port header, 1x Front Panel Audio header (AAFP), 1x LPT header, 1x S/PDIF Out header, 1x SPI TPM header (14-1pin), 1x 20-3 pin System Panel header with Chassis intrude function
Input/Output Ports: 2x USB 3.2 Gen 2 ports Type-A, 4x USB 2.0 ports Type-A, 1x DisplayPort, 2x HDMI ports, 1x Wi-Fi Module, 1x Intel 1Gb Ethernet port, 3x Audio jacks, 1x PS/2 Keyboard/Mouse combo port
Expansion Slots: 1x PCIe 4.0/3.0 x16 slot, 1x PCIe 3.0 x16 slot (x4 mode), 2x PCIe 3.0 x16 slots (x1 mode)
Form Factor: Micro ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10/11 64-bit

Additional Specifications:

Software Features

ASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
- Fan Xpert 2+
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
ASUS CPU-Z
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

Asus Special Features

ASUS 5X PROTECTION III
- DIGI+ VRM
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
AURA Sync
- AURA RGB header
- Addressable Gen 2 headers

BIOS
128 Mb Flash ROM, UEFI AMI BIOS

CPU Support:
Socket LGA1700
VendorCPU ModelCPU FrequencyL3 CacheBIOSSteppingWattage
IntelI9-14900T1.1 GHz33MB2603B-035W
IntelI9-14900KF3.2 GHz36MB2603B-0125W
IntelI9-14900K3.2 GHz36MB2603B-0125W
IntelI9-14900F2.0 GHz36MB2603B-065W
IntelI9-149002.0 GHz36MB2603B-065W
IntelI7-14790F2.1 GHz36MB2603B-065W
IntelI7-14700T1.3 GHz33MB2603B-035W
IntelI7-14700KF3.4 GHz33MB2603B-0125W
IntelI7-14700K3.4 GHz33MB2603B-0125W
IntelI7-14700F2.1 GHz33MB2603B-065W
IntelI7-147002.1 GHz33MB2603B-065W
IntelI5-14600T1.8 GHz24MB2603B-035W
IntelI5-14600KF3.5 GHz24MB2603B-0125W
IntelI5-14600K3.5 GHz24MB2603B-0125W
IntelI5-146002.7 GHz24MB2603B-065W
IntelI5-14500T1.7 GHz24MB2603C-035W
IntelI5-145002.6 GHz24MB2603C-065W
IntelI5-14490F2.8 GHz24MB2603C-065W
IntelI5-14400T1.5 GHz20MB2603C-035W
IntelI5-14400F2.5 GHz20MB2603B-065W
IntelI5-14400F2.5 GHz20MB2603C-065W
IntelI5-144002.5 GHz20MB2603B-065W
IntelI5-144002.5 GHz20MB2603C-065W
IntelI3-14100T2.7 GHz12MB2603H-035W
IntelI3-14100F3.5 GHz12MB2603H-058W
IntelI3-141003.5 GHz12MB2603H-060W
Intel300T3.4 GHz6MB2603H-046W
Intel3003.9 GHz6MB2603H-035W
Inteli9-13900T1.1GHz36MB1620B-035W
Inteli9-13900KF3.0GHz36MB1620B-0125W
Inteli9-13900K3.0GHz36MB1620B-0125W
Inteli9-13900F2.0GHz36MB1620B-065W
Inteli9-139002.0GHz36MB1620B-065W
Inteli7-13700T1.4GHz30MB1620B-035W
Inteli7-13700KF3.4GHz30MB1620B-0125W
Inteli7-13700K3.4GHz30MB1620B-0125W
IntelI7-13790F2.1GHz33MB1620B-065W
Inteli7-13700F2.1GHz30MB1620B-065W
Inteli7-137002.1GHz30MB1620B-065W
IntelI5-13600T1.8 GHz24MB1620C-035W
Inteli5-13600KF3.5GHz24MB1620B-0125W
Inteli5-13600K3.5GHz24MB1620B-0125W
Inteli5-136002.7 GHz24MB1620C-065W
Inteli5-13500T1.6 GHz24MB1620C-035W
Inteli5-135002.5 GHz24MB1620C-065W
Inteli5-13400T1.3 GHz20MB1620C-035W
IntelI5-13490F2.5 GHz24MB1620C-065W
IntelI5-13400F2.5 GHz20MB1620C-065W
IntelI5-134002.5 GHz20MB1620C-065W
IntelI3-13100F3.4 GHz12MB1620H-058W
IntelI3-131003.4 GHz12MB1620H-060W
IntelI3-13100T2.5 GHz12MB1620H-035W
Intel120F2.5 GHz18MBallH-065W
Intel120F2.5 GHz18MBallH-065W
Intel1202.5 GHz18MBallH-065W
Intel1202.5 GHz18MBallH-065W
Inteli5-12600T2.1GHz18MBallH-035W
Inteli5-126003.3GHz18MBallH-065W
Inteli5-12500T2.0GHz18MBallH-035W
Inteli5-125003.0GHz18MBallH-065W
Inteli5-12400T1.8GHz18MBallH-035W
Inteli5-12400F2.5GHz18MBallH-065W
IntelI5-12490F3.0GHz20MBALLC-065W
Inteli5-124002.5GHz18MBallH-065W
Inteli3-12100T2.2GHz12MBallH-035W
Inteli3-12100F3.3GHz12MBallH-058W
Inteli3-121003.3GHz12MBallH-060W
Inteli3-12300T2.3GHz12MBallH-035W
Inteli3-123003.5GHz12MBallH-060W
IntelG7400T3.1GHz6MBallH-035W
IntelG74003.7GHz6MBallH-046W
IntelG6900T2.8GHz4MBallH-035W
IntelG69003.4GHz4MBallH-046W
Inteli9-12900T1.4GHz30MBallC-035W
Inteli9-12900KF3.2GHz30MBallC-0125W
Inteli9-12900K3.2GHz30MBallC-0125W
Inteli9-12900F2.4GHz30MBallC-065W
Inteli9-129002.4GHz30MBallC-065W
Inteli7-12700T1.4GHz25MBallC-035W
Inteli7-12700KF3.6GHz25MBallC-0125W
Inteli7-12700K3.6GHz25MBallC-0125W
Inteli7-12700F2.1GHz25MBallC-065W
Inteli7-127002.1GHz25MBallC-065W
Inteli5-12600KF3.7GHz20MBallC-0125W
Inteli5-12600K3.7GHz20MBallC-0125W
