Asus PRIME B760M-A AX Mboard No I/O

Asus Prime B760m-A Ax Mboard No I/O. Part Number: Mb1ei0-A01
  Enlarge

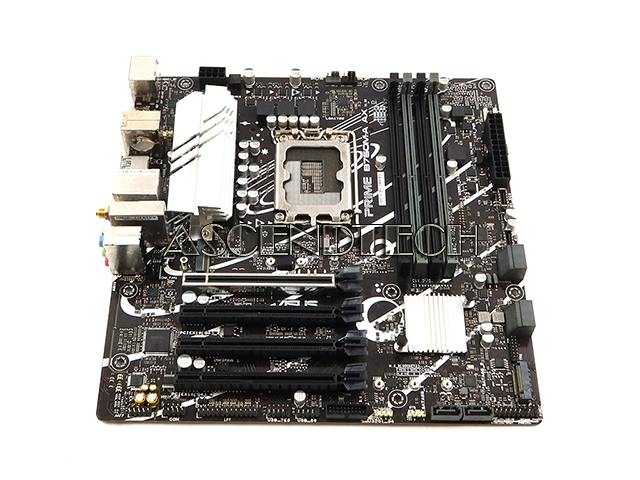

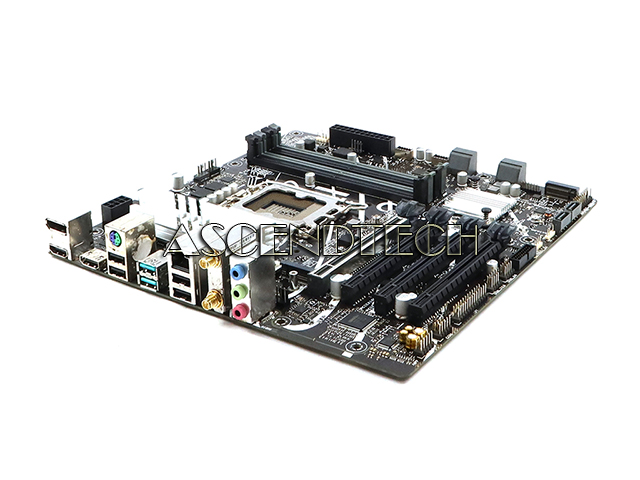

Asus Prime B760m-A Ax Mboard No I/O. Part Number: Mb1ei0-A01
Asus Prime B760m-A Ax Mboard No I/O. Part Number: Mb1ei0-A01
*Note this image is for descriptional purposes.
Actual product may vary.
Qty:
Item Code MBDSKBB760MAAXA
Brand Asus / Asustek Computer
Model PRIME B760M-A AX
Part Number MB1EI0-A01
Compatible Part Numbers MB1EI0-A1F
Category Intel Lga1700 Motherboard
Condition Like New Grade A
Condition Description Please note, this motherboard does not include an I/O Shield, cables, fan’s bracket, fan’s mounting backplate, or any other accessories!

Add-ons / Accessories

If you wish to order addon / accessories please checkoff the box next to the addon items and press the add to cart button.

$9.99
Pre-Test My Motherboard Before It Ships
Pre-Test My Motherboard Before It Ships

Description

Asus PRIME B760M-A AX Intel Chipset B760 Socket LGA1700 DDR5 HDMI DisplayPort SATA 6Gb/s mATX Desktop Motherboard MB1EI0-A01.

Chipset: Intel B760
Socket: Intel LGA1700
Compatible/Supported CPU: Supports 13th & 12th Gen Intel Core, Pentium Gold and Celeron Processors
Max Supported Memory: 128GB
Number of Memory Slots: 4
Memory Type: DDR5 SDRAM
Speed: 7200+(OC) / 7000(OC) / 6800 (OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 / 5400 / 5200 / 5000 / 4800MHz
Storage Interface: SATA 6Gb/s
RAID Support: 0, 1, 5, 10
Bluetooth Standard: Bluetooth 5.2
Wireless Lan Support: 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Supports 2.4/5GHz frequency band
Network/Communications: Realtek 2.5Gb Ethernet
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
Connectors: 1x 4-pin CPU Fan header, 1x 4-pin CPU OPT Fan header, 2x 4-pin Chassis Fan headers, 1x 24-pin Main Power connector, 1x 8-pin +12V Power connector, 2x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports, 2x USB 3.2 Gen 1 connector (supports USB Type-C), 2x USB 2.0 headers support 4 additional USB 2.0 ports, 3x Addressable Gen 2 headers, 1x Aura RGB header, 1x Clear CMOS header, 1x COM Port header, 1x Front Panel Audio header (AAFP), 1x LPT header, 1x S/PDIF Out header, 1x SPI TPM header (14-1pin), 1x 20-3 pin System Panel header with Chassis intrude function, 1x RTC Battery header
Input/Output Ports: 2x USB 3.2 Gen 2 ports (2 x Type-A), 4x USB 2.0 ports (4 x Type-A), 1x DisplayPort, 2x HDMITM ports, 1x Wi-Fi Module, 1x Realtek 2.5Gb Ethernet port, 3x Audio jacks, 1x PS/2 Keyboard/Mouse combo port
Expansion Slots: 2x M.2 slots (Key M), 6x SATA 6Gb/s ports, 4x PCIe 4.0 x16 slots
Form Factor: mATX
Type: Desktop Motherboard
Supported Operating System: Windows 11, Windows 10 64-bit

Additional Specifications:

Graphics
1x DisplayPort
2x HDMI ports
Supports max. 4K@60Hz as specified in DisplayPort 1.4.
Supports 4K@60Hz as specified in HDMTM 2.1.

Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
AI Suite 3
- Digi+ VRM
- PC Cleaner
ASUS CPU-Z
Norton Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

BIOS
128 Mb Flash ROM, UEFI AMI BIOS

Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers

CPU Support:

Socket LGA1700
VendorCPU ModelFrequencyWattageL3 CacheCoreStepping
IntelI9-14900T1.1GHz35W33MB24B-0
IntelI9-14900KF3.2GHz125W36MB24B-0
IntelI9-14900K3.2GHz125W36MB24B-0
IntelI9-14900F2.0GHz65W36MB24B-0
IntelI9-149002.0GHz65W36MB24B-0
IntelI7-14700T1.3GHz35W33MB20B-0
IntelI7-14700KF3.4GHz125W33MB20B-0
IntelI7-14700K3.4GHz125W33MB20B-0
IntelI7-14700F2.1GHz65W33MB20B-0
IntelI7-147002.1GHz65W33MB20B-0
IntelI5-14600T1.8GHz35W24MB14B-0
IntelI5-14600KF3.5GHz125W24MB14B-0
IntelI5-14600K3.5GHz125W24MB14B-0
IntelI5-146002.7GHz65W24MB14B-0
IntelI5-14500T1.7GHz35W24MB14C-0
IntelI5-145002.6GHz65W24MB14C-0
IntelI5-14400T1.5GHz35W20MB10C-0
IntelI5-14400F2.5GHz65W20MB10B-0
IntelI5-14400F2.5GHz65W20MB10C-0
IntelI5-144002.5GHz65W20MB10B-0
IntelI5-144002.5GHz65W20MB10C-0
IntelI3-14100T2.7GHz35W12MB4H-0
IntelI3-14100F3.5GHz58W12MB4H-0
IntelI3-141003.5GHz60W12MB4H-0
Intel300T3.4GHz46W6MB2H-0
Intel3003.9GHz35W6MB2H-0
IntelI7-13790F2.1GHz65W33MB16B-0
IntelI5-13490F2.5GHz65W24MB10C-0
Inteli9-13900T1.1GHz35W36MB24B-0
Inteli9-13900KF3.0GHz125W36MB24B-0
Inteli9-13900K3.0GHz125W36MB24B-0
Inteli5-12400F2.5GHz65W18MB6H-0
IntelI5-12490F3.0GHz65W30MB6C-0
IntelI5-13400F2.5GHz65W20MB10C-0
Inteli5-124002.5GHz65W18MB6H-0
IntelI5-134002.5GHz65W20MB10C-0
Inteli3-12100T2.2GHz35W12MB4H-0
Inteli3-12100F3.3GHz58W12MB4H-0
Inteli3-121003.3GHz60W12MB4H-0
Inteli3-12300T2.3GHz35W12MB4H-0
Inteli3-123003.5GHz60W12MB4H-0
IntelI3-13100F3.4GHz58W12MB4H-0
IntelI3-131003.4GHz60W12MB4H-0
IntelG7400T3.1GHz35W6MB2H-0
IntelG74003.7GHz46W6MB2H-0
IntelI3-13100T2.5GHz35W12MB4H-0
IntelG6900T2.8GHz35W4MB2H-0
IntelG69003.4GHz46W4MB2H-0
Inteli9-12900T1.4GHz35W30MB16C-0
Inteli9-12900KF3.2GHz125W30MB16C-0
Inteli9-12900K3.2GHz125W30MB16C-0
Inteli9-12900F2.4GHz65W30MB16C-0
Inteli9-129002.4GHz65W30MB16C-0
Inteli7-12700T1.4GHz35W25MB12C-0
Inteli7-12700KF3.6GHz125W25MB12C-0
Inteli7-12700K3.6GHz125W25MB12C-0
Inteli7-12700F2.1GHz65W25MB12C-0
Inteli7-127002.1GHz65W25MB12C-0
Inteli5-12600KF3.7GHz125W20MB10C-0
Inteli5-12600K3.7GHz125W20MB10C-0
