Asus PRIME B760M-A AX6 II Motherboard

Asus Prime B760m-A Ax6 Ii Motherboard. Part Number: Mb1jh0-A05
  Enlarge
Asus Prime B760m-A Ax6 Ii Motherboard. Part Number: Mb1jh0-A05
Asus Prime B760m-A Ax6 Ii Motherboard. Part Number: Mb1jh0-A05
*Note this image is for descriptional purposes.
Actual product may vary.
Qty:
Item Code MBDSKB760MAAXA3
Brand Asus / Asustek Computer
Model PRIME B760M-A AX6 II
Part Number MB1JH0-A05
Category Intel Lga1700 Motherboard
Condition Like New Grade A

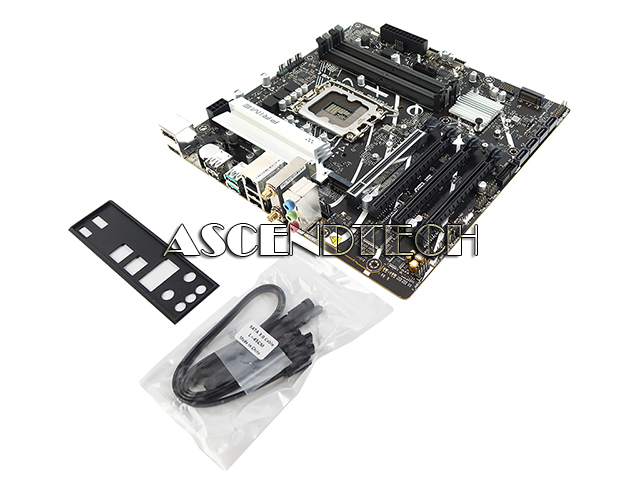

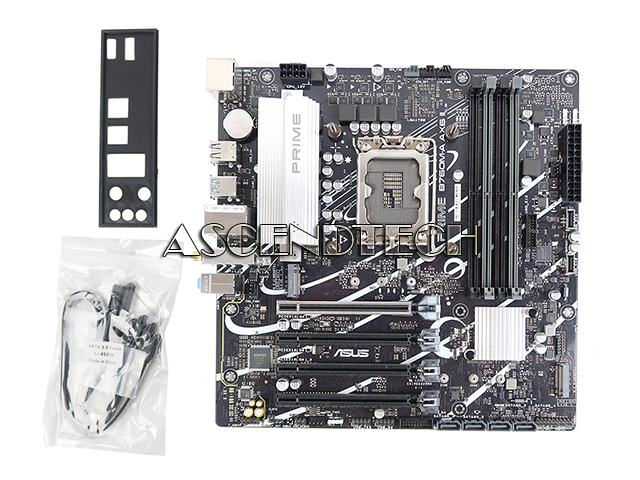

Condition Description Please note, this motherboard comes with I/O Shield, SATA Cables, Wireless Antennas! No other cables, fan’s bracket, fan’s mounting backplate or any other accessories!

Add-ons / Accessories

If you wish to order addon / accessories please checkoff the box next to the addon items and press the add to cart button.

$9.99
Pre-Test My Motherboard Before It Ships
Pre-Test My Motherboard Before It Ships

Description

Asus PRIME B760M-A AX6 II Intel Chipset B760 Socket LGA1700 DDR5 USB 3.2 SATA 6.0Gb/s DisplayPort HDMI mATX Desktop Motherboard MB1JH0-A05.

Chipset: Intel B760
Socket: Intel LGA1700
Compatible/Supported CPU: Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors
Max Supported Memory: 192GB
Number of Memory Slots: 4
Memory Type: DDR5 SDRAM
Speed: 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory
Storage Interface: SATA 6.0Gb/s
RAID Support: 0, 1, 5, 10
Bluetooth Standard: Bluetooth 5.3
Wireless Lan Support: Wi-Fi 6 (802.11 a/b/g/n/ac/ax), supports 2.4/5GHz frequency band
Network/Communications: 1x Realtek 1Gb Ethernet
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
Connectors: 1x 4-pin CPU Fan header, 1x 4-pin CPU OPT Fan header, 1x 4-pin AIO Pump header, 3x 4-pin Chassis Fan headers, 1x 24-pin Main Power connector, 1x 8-pin +12V Power connector 3x M.2 slots (Key M), 4x SATA 6Gb/s ports, 2x USB 5Gbps headers support 4 additional USB 5Gbps ports, 2x USB 5Gbps port (support USB Type-C), 2x USB 2.0 header support 4 additional USB 2.0 ports, 3x Aura Addressable Gen 2 headers, 1x Clear CMOS header, 1x Front Panel Audio header (AAFP), 1x S/PDIF Out header, 1x SPI TPM header (14-1pin), 1x 20-3 pin System Panel header with Chassis intrude function
Input/Output Ports: 2x USB 10Gbps ports (2x Type-A), 4x USB 2.0 ports (4x Type-A), 1x DisplayPort, 1x HDMI port, 1x Wi-Fi Module, 1x Realtek 1Gb Ethernet, 3x Audio jacks
Expansion Slots: 1x PCIe 4.0 x16 slot, 1x PCIe 4.0 x16 slot (supports x4 mode), 2x PCIe 4.0 x16 slot (support x1 mode)
Form Factor: mATX
Type: Desktop Motherboard
Supported Operating System: Windows 11, Windows 10 64-bit

Additional Specifications:

Onboard Graphics
1x DisplayPort
1x HDMI port
Graphics specifications may vary between CPU types.
Supports max. 4K@60Hz as specified in DisplayPort 1.4.
Supports 4K@60Hz as specified in HDMI 2.1.

Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
- Two-Way AI Noise Cancelation
AI Suite 3
- Digi+ VRM
- PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode


BIOS
128 Mb Flash ROM, UEFI AMI BIOS

Unique Features
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS EZ DIY
- ProCool
AURA Sync
- Addressable Gen 2 headers

CPU Support:

Socket LGA1700
VendorCPU ModelCPU FrequencyL3 CacheBIOSSteppingWattage
IntelI9-14900T1.1 GHz33MBallB-035W
IntelI9-14900KS3.2 GHz36MBallB-0150W
IntelI9-14900KF3.2 GHz36MBallB-0125W
IntelI9-14900K3.2 GHz36MBallB-0125W
IntelI9-14900F2.0 GHz36MBallB-065W
IntelI9-149002.0 GHz36MBallB-065W
IntelI7-14700T1.3 GHz33MBallB-035W
IntelI7-14700KF3.4 GHz33MBallB-0125W
IntelI7-14700K3.4 GHz33MBallB-0125W
IntelI7-14700F2.1 GHz33MBallB-065W
IntelI7-147002.1 GHz33MBallB-065W
IntelI5-14600T1.8 GHz24MBallB-035W
IntelI5-14600KF3.5 GHz24MBallB-0125W
IntelI5-14600K3.5 GHz24MBallB-0125W
IntelI5-146002.7 GHz24MBallB-065W
IntelI5-14500T1.7 GHz24MBallC-035W
IntelI5-145002.6 GHz24MBallC-065W
IntelI5-14400T1.5 GHz20MBallC-035W
IntelI5-14400F2.5 GHz20MBallB-065W
IntelI5-14400F2.5 GHz20MBallC-065W
IntelI5-144002.5 GHz20MBallB-065W
IntelI5-144002.5 GHz20MBallC-065W
IntelI3-14100T2.7 GHz12MBallH-035W
IntelI3-14100F3.5 GHz12MBallH-058W
IntelI3-141003.5 GHz12MBallH-060W
Intel300T3.4 GHz6MBallH-046W
Intel3003.9 GHz6MBallH-035W
Inteli9-13900KS3.2GHz36MB403B-0150W
Inteli9-13900T1.1GHz36MB403B-035W
Inteli9-13900KF3.0GHz36MB403B-0125W
Inteli9-13900K3.0GHz36MB403B-0125W
Inteli9-13900F2.0GHz36MB403B-065W
Inteli9-139002.0GHz36MB403B-065W
Inteli7-13700T1.4GHz30MB403B-035W
Inteli7-13700KF3.4GHz30MB403B-0125W
Inteli7-13700K3.4GHz30MB403B-0125W
IntelI7-13790F2.1GHz33MB403B-065W
Inteli7-13700F2.1GHz30MB403B-065W
Inteli7-137002.1GHz30MB403B-065W
IntelI5-13600T1.8 GHz24MB403C-035W
Inteli5-13600KF3.5GHz24MB403B-0125W
Inteli5-13600K3.5GHz24MB403B-0125W
Inteli5-136002.7 GHz24MB403C-065W
Inteli5-13500T1.6 GHz24MB403C-035W
Inteli5-135002.5 GHz24MB403C-065W
Inteli5-13400T1.3 GHz20MB403C-035W
IntelI5-13490F2.5 GHz24MB403C-065W
IntelI5-13400F2.5 GHz20MB403C-065W
IntelI5-134002.5 GHz20MB403C-065W
IntelI3-13100F3.4 GHz12MB403H-058W
IntelI3-131003.4 GHz12MB403H-060W
IntelI3-13100T2.5 GHz12MB403H-035W
Intel120F2.5 GHz18MBallH-065W
Intel1202.5 GHz18MBallH-065W
IntelI9-12900KS3.4GHz30MB403C-0150W
Inteli5-12600T2.1GHz18MB403H-035W
Inteli5-126003.3GHz18MB403H-065W
Inteli5-12500T2.0GHz18MB403H-035W
Inteli5-125003.0GHz18MB403H-065W
Inteli5-12400T1.8GHz18MB403H-035W
Inteli5-12400F2.5GHz18MB403H-065W
IntelI5-12490F3.0GHz20MB403C-065W
Inteli5-124002.5GHz18MB403H-065W
Inteli3-12100T2.2GHz12MB403H-035W
Inteli3-12100F3.3GHz12MB403H-058W
Inteli3-121003.3GHz12MB403H-060W
Inteli3-12300T2.3GHz12MB403H-035W
Inteli3-123003.5GHz12MB403H-060W
IntelG7400T3.1GHz6MB403H-035W
IntelG74003.7GHz6MB403H-046W
IntelG6900T2.8GHz4MB403H-035W
IntelG69003.4GHz4MB403H-046W
Inteli9-12900T1.4GHz30MB403C-035W
Inteli9-12900KF3.2GHz30MB403C-0125W
Inteli9-12900K3.2GHz30MB403C-0125W
Inteli9-12900F2.4GHz30MB403C-065W
Inteli9-129002.4GHz30MB403C-065W
Inteli7-12700T1.4GHz25MB403C-035W
Inteli7-12700KF3.6GHz25MB403C-0125W
Inteli7-12700K3.6GHz25MB403C-0125W
Inteli7-12700F2.1GHz25MB403C-065W
Inteli7-127002.1GHz25MB403C-065W
Inteli5-12600KF3.7GHz20MB403C-0125W
Inteli5-12600K3.7GHz20MB403C-0125W
