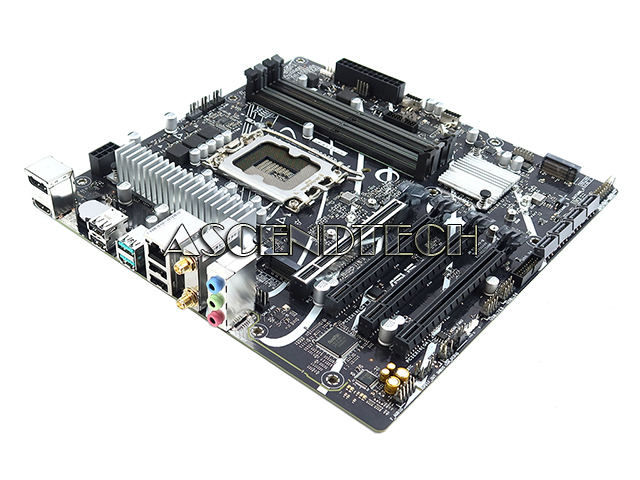

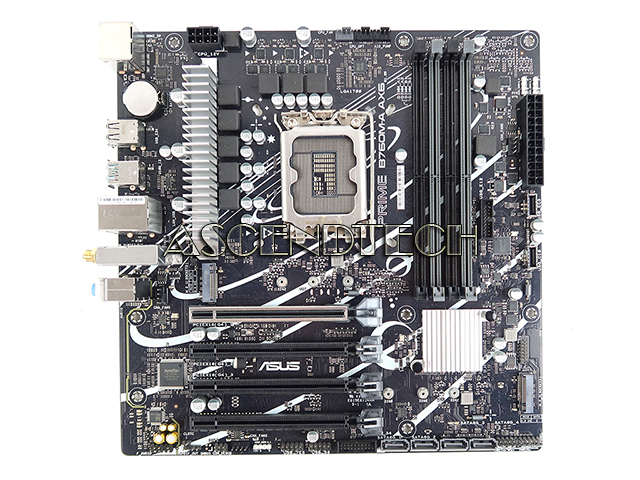

Asus PRIME B760M-A AX6 Mboard No I/O
Qty:
Item Code MBDSKPRIMEB76A3
Brand Asus / Asustek Computer
Model PRIME B760M-A AX6
Category Intel Lga1700 Motherboard
Condition Like New Grade A
Condition Description Please note, this motherboard does not include an I/O Shield, fan’s mounting backplate, fan’s bracket, cables or any other accessories!
Add-ons / Accessories
If you wish to order addon / accessories please checkoff the box next to the addon items and press the add to cart button.
Description
Asus PRIME B760M-A AX6 Intel Chipset B760 Socket LGA1700 DDR5 USB SATA 6Gb/s DisplayPort HDMI mATX Desktop Motherboard.
Chipset: Intel B760
Socket: Intel LGA1700
Compatible/Supported CPU: Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors
Max Supported Memory: 192GB
Number of Memory Slots: 4
Memory Type: DDR5 SDRAM
Speed: 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory
Storage Interface: SATA 6Gb/s
RAID Support: 0, 1, 5, 10
Bluetooth Standard: Bluetooth 5.3
Wireless Lan Support: Wi-Fi 6 (802.11 a/b/g/n/ac/ax), supports 2.4/5GHz frequency band
Network/Communications: 1x Realtek 1Gb Ethernet
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
Connectors: 1x 4-pin CPU Fan header, 1x 4-pin CPU OPT Fan header, 1x 4-pin AIO Pump header, 3x 4-pin Chassis Fan headers, 1x 24-pin Main Power connector, 1x 8-pin +12V Power connector, 3x M.2 slots (Key M), 4x SATA 6Gb/s ports, 2x USB 5Gbps headers support 4 additional USB 5Gbps ports, 2x USB 5Gbps port (support USB Type-C), 2x USB 2.0 header support 4 additional USB 2.0 ports, 3x Aura Addressable Gen 2 headers, 1x Clear CMOS header, 1x Front Panel Audio header (AAFP), 1x S/PDIF Out header, 1x SPI TPM header (14-1pin), 1x 20-3 pin System Panel header with Chassis intrude function
Input/Output Ports: 2x USB 10Gbps ports (2x Type-A), 4x USB 2.0 ports (4x Type-A), 1x DisplayPort, 1x HDMI port, 1x Wi-Fi Module, 1x Realtek 1Gb Ethernet, 3x Audio jacks
Expansion Slots: 1x PCIe 4.0 x16 slot, 1x PCIe 4.0 x16 slot (supports x4 mode), 2x PCIe 4.0 x16 slot (support x1 mode)
Form Factor: mATX
Type: Desktop Motherboard
Supported Operating System: Windows 11, Windows 10 64-bit
Additional Specifications:
Onboard Graphics
1x DisplayPort
1x HDMI port
Graphics specifications may vary between CPU types.
Supports max. 4K@60Hz as specified in DisplayPort 1.4.
Supports 4K@60Hz as specified in HDMI 2.1.
Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
- Two-Way AI Noise Cancelation
AI Suite 3
- Digi+ VRM
- PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Unique Features
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS EZ DIY
- ProCool
AURA Sync
- Addressable Gen 2 headers
CPU Support:
| Socket LGA1700 | |||||||
|---|---|---|---|---|---|---|---|
| Vendor | CPU Model | CPU Frequency | L3 Cache | BIOS | Stepping | Wattage | |
| Intel | I9-14900T | 1.1 GHz | 33MB | all | B-0 | 35W | |
| Intel | I9-14900KS | 3.2 GHz | 36MB | all | B-0 | 150W | |
| Intel | I9-14900KF | 3.2 GHz | 36MB | all | B-0 | 125W | |
| Intel | I9-14900K | 3.2 GHz | 36MB | all | B-0 | 125W | |
| Intel | I9-14900F | 2.0 GHz | 36MB | all | B-0 | 65W | |
| Intel | I9-14900 | 2.0 GHz | 36MB | all | B-0 | 65W | |
| Intel | I7-14700T | 1.3 GHz | 33MB | all | B-0 | 35W | |
| Intel | I7-14700KF | 3.4 GHz | 33MB | all | B-0 | 125W | |
| Intel | I7-14700K | 3.4 GHz | 33MB | all | B-0 | 125W | |
| Intel | I7-14700F | 2.1 GHz | 33MB | all | B-0 | 65W | |
| Intel | I7-14700 | 2.1 GHz | 33MB | all | B-0 | 65W | |
| Intel | I5-14600T | 1.8 GHz | 24MB | all | B-0 | 35W | |
| Intel | I5-14600KF | 3.5 GHz | 24MB | all | B-0 | 125W | |
| Intel | I5-14600K | 3.5 GHz | 24MB | all | B-0 | 125W | |
| Intel | I5-14600 | 2.7 GHz | 24MB | all | B-0 | 65W | |
| Intel | I5-14500T | 1.7 GHz | 24MB | all | C-0 | 35W | |
| Intel | I5-14500 | 2.6 GHz | 24MB | all | C-0 | 65W | |
| Intel | I5-14400T | 1.5 GHz | 20MB | all | C-0 | 35W | |
| Intel | I5-14400F | 2.5 GHz | 20MB | all | B-0 | 65W | |
| Intel | I5-14400F | 2.5 GHz | 20MB | all | C-0 | 65W | |
| Intel | I5-14400 | 2.5 GHz | 20MB | all | B-0 | 65W | |
| Intel | I5-14400 | 2.5 GHz | 20MB | all | C-0 | 65W | |
| Intel | I3-14100T | 2.7 GHz | 12MB | all | H-0 | 35W | |
| Intel | I3-14100F | 3.5 GHz | 12MB | all | H-0 | 58W | |
| Intel | I3-14100 | 3.5 GHz | 12MB | all | H-0 | 60W | |
| Intel | 300T | 3.4 GHz | 6MB | all | H-0 | 46W | |
| Intel | 300 | 3.9 GHz | 6MB | all | H-0 | 35W | |
| Intel | i9-13900KS | 3.2GHz | 36MB | 403 | B-0 | 150W | |
| Intel | i9-13900T | 1.1GHz | 36MB | 403 | B-0 | 35W | |
| Intel | i9-13900KF | 3.0GHz | 36MB | 403 | B-0 | 125W | |
| Intel | i9-13900K | 3.0GHz | 36MB | 403 | B-0 | 125W | |
| Intel | i9-13900F | 2.0GHz | 36MB | 403 | B-0 | 65W | |
| Intel | i9-13900 | 2.0GHz | 36MB | 403 | B-0 | 65W | |
| Intel | i7-13700T | 1.4GHz | 30MB | 403 | B-0 | 35W | |
| Intel | i7-13700KF | 3.4GHz | 30MB | 403 | B-0 | 125W | |
| Intel | i7-13700K | 3.4GHz | 30MB | 403 | B-0 | 125W | |
| Intel | I7-13790F | 2.1GHz | 33MB | 403 | B-0 | 65W | |
| Intel | i7-13700F | 2.1GHz | 30MB | 403 | B-0 | 65W | |
| Intel | i7-13700 | 2.1GHz | 30MB | 403 | B-0 | 65W | |
| Intel | I5-13600T | 1.8 GHz | 24MB | 403 | C-0 | 35W | |
| Intel | i5-13600KF | 3.5GHz | 24MB | 403 | B-0 | 125W | |
| Intel | i5-13600K | 3.5GHz | 24MB | 403 | B-0 | 125W | |
| Intel | i5-13600 | 2.7 GHz | 24MB | 403 | C-0 | 65W | |
| Intel | i5-13500T | 1.6 GHz | 24MB | 403 | C-0 | 35W | |
| Intel | i5-13500 | 2.5 GHz | 24MB | 403 | C-0 | 65W | |
| Intel | i5-13400T | 1.3 GHz | 20MB | 403 | C-0 | 35W | |
| Intel | I5-13490F | 2.5 GHz | 24MB | 403 | C-0 | 65W | |
| Intel | I5-13400F | 2.5 GHz | 20MB | 403 | C-0 | 65W | |
| Intel | I5-13400 | 2.5 GHz | 20MB | 403 | C-0 | 65W | |
| Intel | I3-13100F | 3.4 GHz | 12MB | 403 | H-0 | 58W | |
| Intel | I3-13100 | 3.4 GHz | 12MB | 403 | H-0 | 60W | |
| Intel | I3-13100T | 2.5 GHz | 12MB | 403 | H-0 | 35W | |
| Intel | 120F | 2.5 GHz | 18MB | all | H-0 | 65W | |
| Intel | 120 | 2.5 GHz | 18MB | all | H-0 | 65W | |
| Intel | I9-12900KS | 3.4GHz | 30MB | 403 | C-0 | 150W | |
| Intel | i5-12600T | 2.1GHz | 18MB | 403 | H-0 | 35W | |
| Intel | i5-12600 | 3.3GHz | 18MB | 403 | H-0 | 65W | |
| Intel | i5-12500T | 2.0GHz | 18MB | 403 | H-0 | 35W | |
| Intel | i5-12500 | 3.0GHz | 18MB | 403 | H-0 | 65W | |
| Intel | i5-12400T | 1.8GHz | 18MB | 403 | H-0 | 35W | |
| Intel | i5-12400F | 2.5GHz | 18MB | 403 | H-0 | 65W | |
| Intel | I5-12490F | 3.0GHz | 20MB | 403 | C-0 | 65W | |
| Intel | i5-12400 | 2.5GHz | 18MB | 403 | H-0 | 65W | |
| Intel | i3-12100T | 2.2GHz | 12MB | 403 | H-0 | 35W | |
| Intel | i3-12100F | 3.3GHz | 12MB | 403 | H-0 | 58W | |
| Intel | i3-12100 | 3.3GHz | 12MB | 403 | H-0 | 60W | |
| Intel | i3-12300T | 2.3GHz | 12MB | 403 | H-0 | 35W | |
| Intel | i3-12300 | 3.5GHz | 12MB | 403 | H-0 | 60W | |
| Intel | G7400T | 3.1GHz | 6MB | 403 | H-0 | 35W | |
| Intel | G7400 | 3.7GHz | 6MB | 403 | H-0 | 46W | |
| Intel | G6900T | 2.8GHz | 4MB | 403 | H-0 | 35W | |
| Intel | G6900 | 3.4GHz | 4MB | 403 | H-0 | 46W | |
| Intel | i9-12900T | 1.4GHz | 30MB | 403 | C-0 | 35W | |
| Intel | i9-12900KF | 3.2GHz | 30MB | 403 | C-0 | 125W | |
| Intel | i9-12900K | 3.2GHz | 30MB | 403 | C-0 | 125W | |
| Intel | i9-12900F | 2.4GHz | 30MB | 403 | C-0 | 65W | |
| Intel | i9-12900 | 2.4GHz | 30MB | 403 | C-0 | 65W | |
| Intel | i7-12700T | 1.4GHz | 25MB | 403 | C-0 | 35W | |
| Intel | i7-12700KF | 3.6GHz | 25MB | 403 | C-0 | 125W | |
| Intel | i7-12700K | 3.6GHz | 25MB | 403 | C-0 | 125W | |
| Intel | i7-12700F | 2.1GHz | 25MB | 403 | C-0 | 65W | |
| Intel | i7-12700 | 2.1GHz | 25MB | 403 | C-0 | 65W | |
| Intel | i5-12600KF | 3.7GHz | 20MB | 403 | C-0 | 125W | |
| Intel | i5-12600K | 3.7GHz | 20MB | 403 | C-0 | 125W | |
