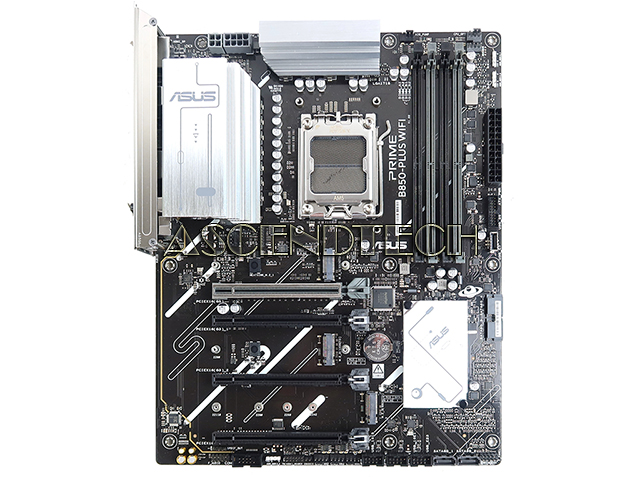

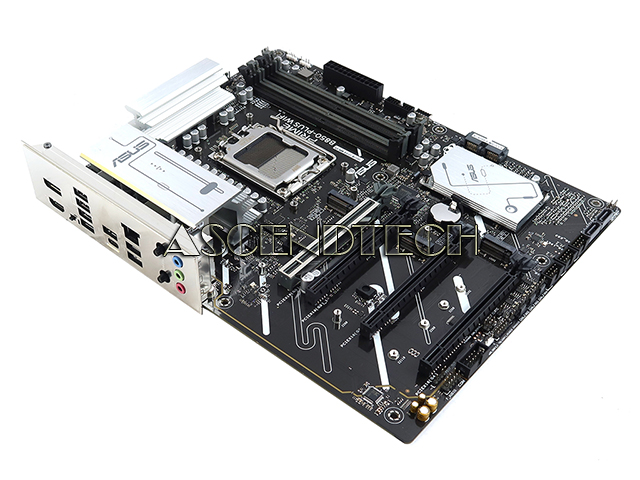

Asus PRIME B850-PLUS WIFI Motherboard

Asus Prime B850-Plus Wifi Motherboard
  Enlarge
Asus Prime B850-Plus Wifi Motherboard
Asus Prime B850-Plus Wifi Motherboard
*Note this image is for descriptional purposes.
Actual product may vary.
Qty:
Item Code MBDSKPRIMEB85A3
Brand Asus / Asustek Computer
Model PRIME B850-PLUS WIFI
Compatible Part Numbers 60MB1L80-A01
Category Amd Socket Am5 Motherboard
Condition Like New Grade A
Condition Description Please note, this motherboard comes with I/O Shield, fan’s mounting backplate! No fan’s bracket, M.2 heatsink, cables or any other accessories!

Add-ons / Accessories

If you wish to order addon / accessories please checkoff the box next to the addon items and press the add to cart button.

$9.99
Pre-Test My Motherboard Before It Ships
Pre-Test My Motherboard Before It Ships

Description

Asus PRIME B850-PLUS WIFI AMD Chipset B850 Socket AM5 DDR5 USB SATA 6.0Gb/s DisplayPort HDMI ATX Desktop Motherboard.

Chipset: AMD B850
Socket: AMD AM5
Compatible/Supported CPU: AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Max Supported Memory: 256GB
Number of Memory Slots: 4
Memory Type: DDR5 SDRAM
Speed: 8000+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM
Storage Interface: SATA 6.0Gb/s
RAID Support: 0, 1, 5, 10
Bluetooth Standard: Bluetooth 5.3
Wireless Lan Support: Wi-Fi 6e (802.11ax), supports 2.4/5/6GHz frequency band
Network/Communications: 1x Realtek 2.5Gb Ethernet
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
Connectors: 1x 4-pin CPU Fan header, 1x 4-pin CPU OPT Fan header, 1x 4-pin AIO Pump header, 4x 4-pin Chassis Fan headers, 1x 24-pin Main Power connector, 1x 8-pin +12V CPU Power connectors, 1x 4-pin +12V CPU Power connectors, 3x M.2 slots (Key M), 4x SATA 6Gb/s ports, 1x USB 5Gbps connector (supports USB Type-C), 1x USB 5Gbps header supports 2 additional USB 5Gbps ports, 3x USB 2.0 headers support 6 additional USB 2.0 ports, 3x Addressable RGB Gen 2 headers, 1x Clear CMOS header, 1x Chassis Intrusion header, 1x COM Port header 1x Front Panel Audio header (F_AUDIO), 1x S/PDIF Out header, 1x SPI TPM header (14-1 pin), 1x 10-1 pin System Panel header, 1x Thunderbolt (USB4) header
Input/Output Ports: 1x USB 10Gbps port (1x USB Type-C), 3x USB 10Gbps ports (3x Type-A), 2x USB 5Gbps ports (2x Type-A), 2x USB 2.0 ports (2x Type-A), 1x DisplayPort, 1x HDMI port 1x Wi-Fi module, 1x Realtek 2.5Gb Ethernet port, 3x Audio jacks, 1x BIOS FlashBack button
Expansion Slots: 1x PCIe 5.0 x16 slot (supports x16 mode), 1x PCIe 4.0 x16 slot (supports x8/x4 mode), 1x PCIe 4.0 x16 slot (support x4 mode), 2x PCIe 3.0 x16 slots (support x1 mode)
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Windows 11, Windows 10 64-bit

Additional Specifications:

Onboard Graphics
1x DisplayPort
1x HDMI port
Graphics specifications may vary between CPU types.
Supports max. 8K@30Hz as specified in DisplayPort 1.4.
Supports 4K@60Hz as specified in HDMI 2.1.

Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
ASUS AI Advisor
ASUS Driver Hub
ASUS GlideX
TurboV Core
ASUS CPU-Z
Adobe Creative Cloud (Free Trial)
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey


BIOS
256 Mb Flash ROM, UEFI AMI BIOS

Unique Features
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Pre-mounted I/O shield
- SafeSlot
Aura Sync
- Addressable RGB Gen 2 headers

CPU Support:

Socket AM5
VendorCPU ModelFrequencyWattageL3 CacheCore
AMDRyzen 9 9950X3D4.3GHz170W128MB16
AMDRyzen 9 9950X4.3GHz170W64MB16
AMDRyzen 9 PRO 99453.4GHz65W64MB12
AMDRyzen 9 9900X3D4.4GHz120W128MB12
AMDRyzen 9 9900X4.4GHz120W64MB12
AMDRyzen 7 9850X3D4.7GHz120W96MB8
AMDRyzen 7 9800X3D4.7GHz120W96MB8
AMDRyzen 7 PRO 97453.8GHz65W32MB8
AMDRyzen 7 9700X3.8GHz65W32MB8
AMDRyzen 7 9700F3.8GHz65W32MB8
AMDRyzen 5 PRO 96453.9GHz65W32MB6
AMDRyzen 5 9600X3.9GHz65W32MB6
AMDRyzen 5 96003.8GHz65W32MB6
AMDRyzen 5 9500F3.8GHz65W32MB6
AMDRyzen 7 PRO 8700GE3.65GHz35W16MB8
AMDRyzen 7 8700G4.2GHz65W16MB8
AMDRyzen 7 PRO 8700G4.2GHz65W16MB8
AMDRyzen 7 8700F4.1GHz65W16MB8
AMDRyzen 5 PRO 8600GE3.9GHz35W16MB6
AMDRyzen 5 8600G4.35GHz65W16MB6
AMDRyzen 5 PRO 8600G4.35GHz65W16MB6
AMDRyzen 5 8500GE3.4GHz35W16MB6
AMDRyzen 5 PRO 8500GE3.4GHz35W16MB6
AMDRyzen 5 8500G3.55GHz65W16MB6
AMDRyzen 5 PRO 8500G3.55GHz65W16MB6
AMDRyzen 5 8400F4.2GHz65W16MB6
AMDRyzen 3 8300GE3.5GHz35W8MB4
AMDRyzen 3 PRO 8300GE3.5GHz35W8MB4
AMDRyzen 3 PRO 8300G3.45GHz65W8MB4
AMDRyzen 3 8300G3.45GHz65W8MB4
AMDRyzen 9 7950X4.5GHz170W64MB16
AMDRyzen 9 PRO 79453.7GHz65W64MB12
AMDRyzen 9 7950X3D4.2GHz120W128MB16
AMDRyzen 9 7900X3D4.4GHz120W128MB12
AMDRyzen 9 7900X4.7GHz170W64MB12
AMDRyzen 9 79003.7GHz65W64MB12
AMDRyzen 7 7800X3D4.2GHz120W96MB8
AMDRyzen 7 PRO 77453.8GHz65W32MB8
AMDRyzen 7 7700X4.5GHz105W32MB8
AMDRyzen 7 77003.8GHz65W32MB8
AMDRyzen 5 PRO 76453.8GHz65W32MB6
AMDRyzen 5 7600X3D4.1GHz65W96MB6
AMDRyzen 5 7600X4.7GHz105W32MB6
AMDRyzen 5 76003.8GHz65W32MB6
AMDRyzen 5 7500X3D4GHz65W96MB6
AMDRyzen 5 7500F3.7GHz65W32MB6
AMDRyzen 5 PRO 74453.3GHz65W16MB6
AMDRyzen 5 7400F3.7GHz65W32MB6
AMDRyzen 5 74003.3GHz65W16MB6
AMDEPYC 4545P3GHz65W64MB16
AMDEPYC 4585PX4.3GHz170W128MB16
AMDEPYC 4565P4.3GHz170W64MB16
AMDEPYC 4465P3.4GHz65W64MB12
AMDEPYC 4345P3.8GHz65W32MB8
AMDEPYC 4245P3.9GHz65W32MB6
