ASUS PRIME H270-PLUS/CSM/C/SI MB No I/O

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

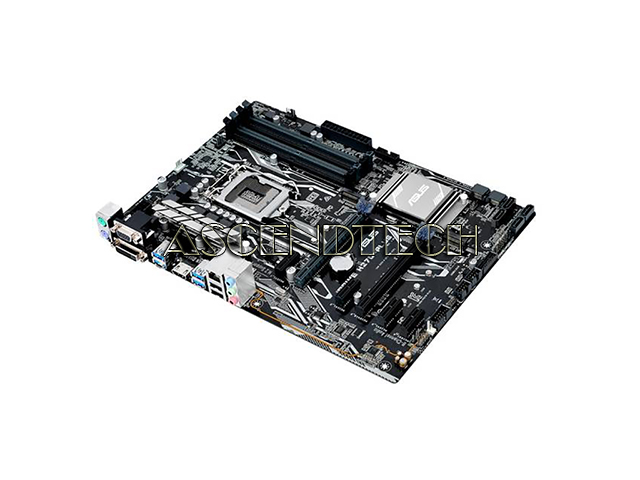

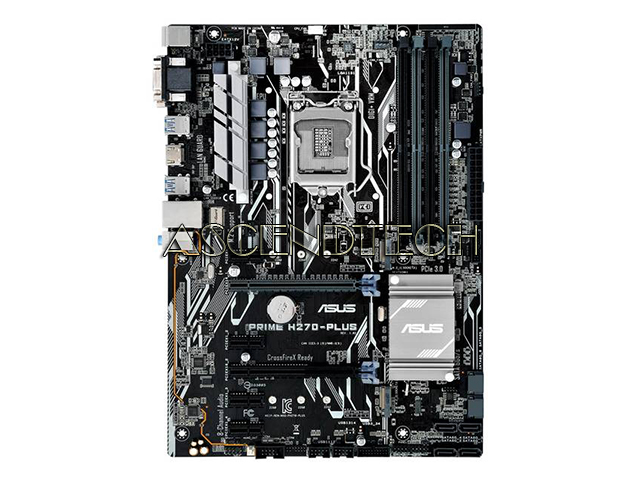

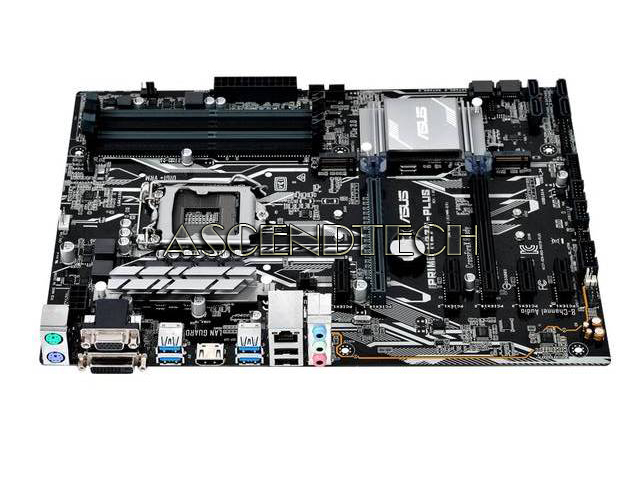

Asus Prime H270-Plus/Csm/C/Si Mb No I/O. Part Number: 37-Mb0s90-A09
  Enlarge
Asus Prime H270-Plus/Csm/C/Si Mb No I/O. Part Number: 37-Mb0s90-A09
Asus Prime H270-Plus/Csm/C/Si Mb No I/O. Part Number: 37-Mb0s90-A09
Asus Prime H270-Plus/Csm/C/Si Mb No I/O. Part Number: 37-Mb0s90-A09
Asus Prime H270-Plus/Csm/C/Si Mb No I/O. Part Number: 37-Mb0s90-A09
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBH270PLUSCSMCS
Brand Asus / Asustek Computer
Model PRIME H270-PLUS/CSM/C/SI
Part Number 37-MB0S90-A09
Category Intel Lga1151 Motherboard
Condition Like New Grade A
Condition Description Please note, this motherboard does not include an I/O Shield, cables, or any other accessories!

Description

Asus PRIME H270-PLUS/CSM/C/SI Intel Chipset H270 Socket LGA1151 DDR4 DVI-D HDMI USB SATA 6Gb/s ATX Desktop Motherboard 37-MB0S90-A09.

Chipset: Intel H270
Socket: Intel LGA1151
Compatible/Supported CPU: Intel 7th/6th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
Max Supported Memory: Up to 64GB
Number of Memory Slots: 4
Memory Type: DDR4 SDRAM
Storage Interface: SATA 6Gb/s
RAID Support: RAID 0, RAID 1, RAID 5, and RAID 10
Wireless Lan Support: Realtek RTL8111H
Audio: Realtek ALC887 8-Channel High Definition Audio CODEC
Connectors: 2x USB 3.1 Gen 1(up to 5Gbps) connectors supports additional 4 USB 3.1 Gen 1 port; 2x USB 2.0 connectors supports additional 4 USB 2.0 ports; 1x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support; 1x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support; 1x TPM header; 6x SATA 6Gb/s connectors; 1x CPU Fan connector; 3x Chassis Fan connectors; 1x S/PDIF out header; 1x 24-pin EATX Power connector; 1x 8-pin ATX 12V Power connector; 1x Front panel audio connector; 1x Clear CMOS jumper; 1x System panel connector; 1x COM port header; 1x Mono Out header.

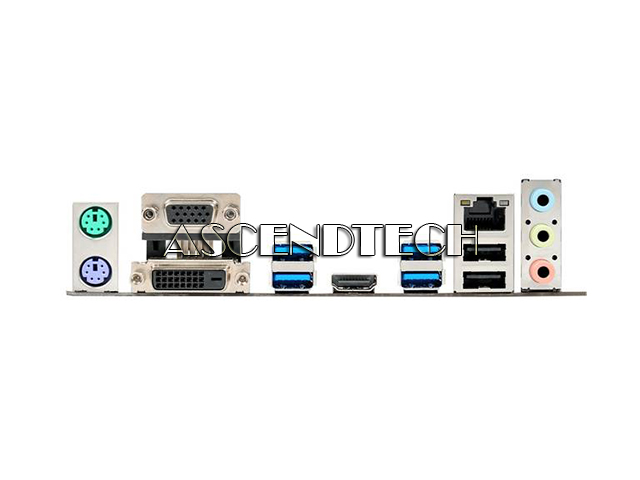

Input/Output Ports: 1x PS/2 keyboard; 1x PS/2 mouse; 1x DVI-D; 1x D-Sub; 1x HDMI; 1x LAN (RJ45) port; 4x USB 3.1 Gen 1 Type-A; 2x USB 2.0; 3x Audio jacks.
Expansion Slots: 1x PCIe 3.0/2.0 x16 (x16 mode); 1x PCIe 3.0/2.0 x16 (max at x4 mode); 4x PCIe 3.0/2.0 x1.
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit; Windows 8.1 64-bit; Windows 7 32-bit; Windows 7 64-bit. Windows 8.1 64-bit and Windows 7 32/64-bit are only supported when using 6th Generation Intel Processors.
Features: 5X Protection III: Multiple hardware safeguards for all-round protection LED illumination: Lighting control for PCIe slot; Dual native M.2 support: Lightning-fast storage speeds; Intel Optane memory ready: Exploit the latest high-speed storage technology.

Additional Specifications:

Onboard Graphics
Integrated Graphics Processor- Intel HD Graphics support
Multi-VGA output support : HDMI/DVI-D/RGB ports
Supports HDMI 1.4b with max. resolution 4096 x 2160 24 Hz / 2560 x 1600 60 Hz
Supports DVI-D with max. resolution 1920 x 1200 60 Hz
Supports RGB with max. resolution 1920 x 1200 60 Hz
Maximum shared memory of 1024 MB (for iGPU exclusively)
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Supports up to 3 displays simultaneously
Multi-Graphics Technology
Supports AMD CrossFireX Technology
BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information.
Unique Features
ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: Premium components provide better power efficiency
ASUS EPU :
- EPU
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 2+
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)

CPU Support:

Socket 1151
Motherboard
VenodrCPU ModelFrequencyWattage
IntelCeleron G39002.8GHz51W
IntelCeleron G3900T2.6GHz35W
IntelCeleron G39202.9GHz51W
IntelCeleron G39302.9GHz51W
IntelCeleron G3930T2.7GHz35W
IntelCeleron G39503.0GHz51W
IntelCore i3-6098P 3.6GHz54W
IntelCore i3-6100 3.7GHz51W
IntelCore i3-6100T 3.2GHz35W
IntelCore i3-6300 3.8GHz51W
IntelCore i3-6300T 3.3GHz35W
IntelCore i3-6320 3.9GHz51W
IntelCore i3-71003.9GHz51W
IntelCore i3-7100T3.4GHz35W
IntelCore i3-73004.0GHz51W
IntelCore i3-7300T3.5GHz35W
IntelCore i3-73204.1GHz51W
IntelCore i3-7350K 4.2GHz60W
IntelCore i5-6400 2.7GHz65W
IntelCore i5-6400T 2.2GHz35W
IntelCore i5-6402P 2.8GHz65W
IntelCore i5-6500 3.2GHz65W
IntelCore i5-6500T 2.5GHz35W
IntelCore i5-6600 3.3GHz65W
IntelCore i5-6600K 3.5GHz91W
IntelCore i5-6600T 2.7GHz35W
IntelCore i5-7400 3.0GHz65W
IntelCore i5-7400T 2.4GHz35W
IntelCore i5-7500 3.4GHz65W
IntelCore i5-7500T 2.7GHz35W
IntelCore i5-7600 3.5GHz65W
IntelCore i5-7600K 3.8GHz91W
IntelCore i5-7600T 2.8GHz35W
IntelCore i7-6700 3.4GHz65W
IntelCore i7-6700K 4.0GHz91W
IntelCore i7-6700T 2.8GHz35W
IntelCore i7-7700 3.6GHz65W
IntelCore i7-7700K 4.2GHz91W
IntelCore i7-7700T 2.9GHz35W
IntelPentium G4400 3.3GHz54W
IntelPentium G4400T 2.9GHz35W
IntelPentium G4500 3.5GHz51W
IntelPentium G4500T 3.0GHz35W
IntelPentium G4520 3.6GHz51W
IntelPentium G45603.5GHz54W
IntelPentium G4560T2.9GHz35W
IntelPentium G46003.6GHz51W
IntelPentium G4600T3.0GHz35W
IntelPentium G46203.7GHz51W
