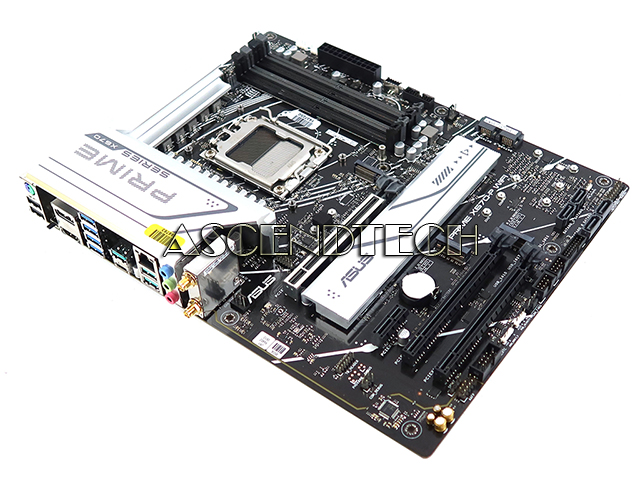

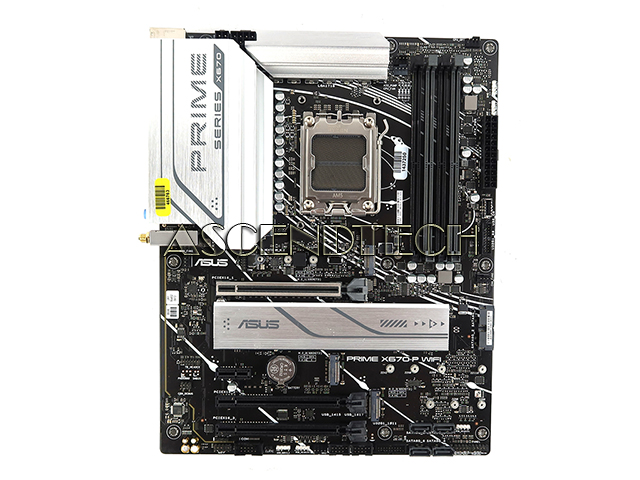

Asus PRIME X670-P WIFI Mboard No I/O

Asus Prime X670-P Wifi Mboard No I/O. Part Number: Mb1bv0-C09
  Enlarge
Asus Prime X670-P Wifi Mboard No I/O. Part Number: Mb1bv0-C09
Asus Prime X670-P Wifi Mboard No I/O. Part Number: Mb1bv0-C09
*Note this image is for descriptional purposes.
Actual product may vary.
Qty:
Item Code MBDSKPRIMEX67A2
Brand Asus / Asustek Computer
Model PRIME X670-P WIFI
Part Number MB1BV0-C09
Category Amd Socket Am5 Motherboard
Condition Like New Grade A
Condition Description Please note, this motherboard comes with fan’s mounting backplate only! No I/O Shield, fan’s bracket, M.2 heatsink, cables or any other accessories!

Add-ons / Accessories

If you wish to order addon / accessories please checkoff the box next to the addon items and press the add to cart button.

$9.99
Pre-Test My Motherboard Before It Ships
Pre-Test My Motherboard Before It Ships

Description

Asus PRIME X670-P WIFI AMD Chipset X670 Socket AM5 DDR5 USB SATA 6.0Gb/s DisplayPort HDMI ATX Desktop Motherboard MB1BV0-C09.

Chipset: AMD X670
Socket: AMD AM5
Compatible/Supported CPU: AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Max Supported Memory: 256GB
Number of Memory Slots: 4
Memory Type: DDR5 SDRAM
Speed: DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory
Storage Interface: SATA 6.0Gb/s
RAID Support: 0, 1, 5, 10
Bluetooth Standard: Bluetooth 5.2
Wireless Lan Support: Wi-Fi 6 (802.11 a/b/g/n/ac/ax), supports 2.4/5GHz frequency band
Network/Communications: 1x Realtek 2.5Gb Ethernet
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
Connectors: 1x 4-pin CPU Fan header, 1x 4-pin CPU OPT Fan header, 1x 4-pin AIO Pump header, 3x 4-pin Chassis Fan headers, 1x 24-pin Main Power connector, 1x 8-pin +12V Power connector 1x 4-pin +12V Power connector, 3x M.2 slots (Key M), 6x SATA 6Gb/s ports, 1x USB 3.2 Gen 1 connector (supports USB Type-C), 2x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports, 2x USB 2.0 headers support additional 4 USB 2.0 ports, 3x Addressable Gen 2 headers, 2x Aura RGB headers, 1x Clear CMOS header, 1x COM Port header, 1x Front Panel Audio header (AAFP), 1x S/PDIF Out header, 1x SPI TPM header (14-1pin), 1x 20-5 pin System Panel header, 1x Thunderbolt (USB4) header
Input/Output Ports: 1x USB 3.2 Gen 2x2 port (1x USB Type-C), 3x USB 3.2 Gen 2 ports (3x Type-A), 4x USB 3.2 Gen 1 ports (4x Type-A), 2x USB 2.0 ports (2x Type-A), 1x DisplayPort 1x HDMI port, 1x Wi-Fi Module, 1x Realtek 2.5Gb Ethernet port, 3x Audio jacks, 1x BIOS FlashBack button, 1x PS/2 Keyboard/Mouse combo port
Expansion Slots: 1x PCIe 4.0 x16 slot (supports x16 mode), 1x PCIe 4.0 x16 slot (supports x8/x4 mode), 2x PCIe 4.0 x16 slots (support x4 mode), 1x PCIe 3.0 x1 slot
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Windows 11, Windows 10 64-bit

Additional Specifications:

Onboard Graphics
1x DisplayPort
1x HDMI port
Graphics specifications may vary between CPU types.
Supports max. 8K@60Hz as specified in DisplayPort 1.4.
Supports 4K@60Hz as specified in HDMI 2.1.

Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- LANGuard
- Overvoltage Protection
- Safeslot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
Aura Sync
- Aura RGB headers
- Addressable Gen 2 headers

BIOS
256 Mb Flash ROM, UEFI AMI BIOS

Unique Features
1.Support for APP Center
Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
2.Support for Q-Flash Plus
3.Support for Q-Flash
4.Support for Xpress Install

CPU Support:

Socket AM5
VendorCPU ModelFrequencyWattageL3 CacheCore
AMDRyzen 9 9950X3D24.3GHz200W192MB16
AMDRyzen 9 9950X3D4.3GHz170W128MB16
AMDRyzen 9 9950X4.3GHz170W64MB16
AMDRyzen 9 PRO 99453.4GHz65W64MB12
AMDRyzen 9 9900X3D4.4GHz120W128MB12
AMDRyzen 9 9900X4.4GHz120W64MB12
AMDRyzen 7 9850X3D4.7GHz120W96MB8
AMDRyzen 7 9800X3D4.7GHz120W96MB8
AMDRyzen 7 PRO 97453.8GHz65W32MB8
AMDRyzen 7 9700X3.8GHz65W32MB8
AMDRyzen 7 9700F3.8GHz65W32MB8
AMDRyzen 5 PRO 96453.9GHz65W32MB6
AMDRyzen 5 9600X3.9GHz65W32MB6
AMDRyzen 5 96003.8GHz65W32MB6
AMDRyzen 5 9500F3.8GHz65W32MB6
AMDRyzen 7 PRO 8700GE3.65GHz35W16MB8
AMDRyzen 7 8700G4.2GHz65W16MB8
AMDRyzen 7 PRO 8700G4.2GHz65W16MB8
AMDRyzen 7 8700F4.1GHz65W16MB8
AMDRyzen 5 PRO 8600GE3.9GHz35W16MB6
AMDRyzen 5 8600G4.35GHz65W16MB6
AMDRyzen 5 PRO 8600G4.35GHz65W16MB6
AMDRyzen 5 8500GE3.4GHz35W16MB6
AMDRyzen 5 PRO 8500GE3.4GHz35W16MB6
AMDRyzen 5 8500G3.55GHz65W16MB6
AMDRyzen 5 PRO 8500G3.55GHz65W16MB6
AMDRyzen 5 8400F4.2GHz65W16MB6
AMDRyzen 3 8300GE3.5GHz35W8MB4
AMDRyzen 3 PRO 8300GE3.5GHz35W8MB4
AMDRyzen 3 PRO 8300G3.45GHz65W8MB4
AMDRyzen 3 8300G3.45GHz65W8MB4
AMDRyzen 9 7950X4.5GHz170W64MB16
AMDRyzen 9 PRO 79453.7GHz65W64MB12
AMDRyzen 9 7950X3D4.2GHz120W128MB16
AMDRyzen 9 7900X3D4.4GHz120W128MB12
AMDRyzen 9 7900X4.7GHz170W64MB12
AMDRyzen 9 79003.7GHz65W64MB12
AMDRyzen 7 7800X3D4.2GHz120W96MB8
AMDRyzen 7 PRO 77453.8GHz65W32MB8
AMDRyzen 7 7700X4.5GHz105W32MB8
AMDRyzen 7 77003.8GHz65W32MB8
AMDRyzen 5 PRO 76453.8GHz65W32MB6
AMDRyzen 5 7600X3D4.1GHz65W96MB6
AMDRyzen 5 7600X4.7GHz105W32MB6
AMDRyzen 5 76003.8GHz65W32MB6
AMDRyzen 5 7500X3D4GHz65W96MB6
AMDRyzen 5 7500F3.7GHz65W32MB6
AMDRyzen 5 PRO 74453.3GHz65W16MB6
AMDRyzen 5 7400F3.7GHz65W32MB6
AMDRyzen 5 74003.3GHz65W16MB6
AMDEPYC 4545P3GHz65W64MB16
AMDEPYC 4585PX4.3GHz170W128MB16
AMDEPYC 4565P4.3GHz170W64MB16
AMDEPYC 4465P3.4GHz65W64MB12
AMDEPYC 4345P3.8GHz65W32MB8
AMDEPYC 4245P3.9GHz65W32MB6
