Asus PRIME Z490-P MB MB12V0-A03 No I/O

  Enlarge

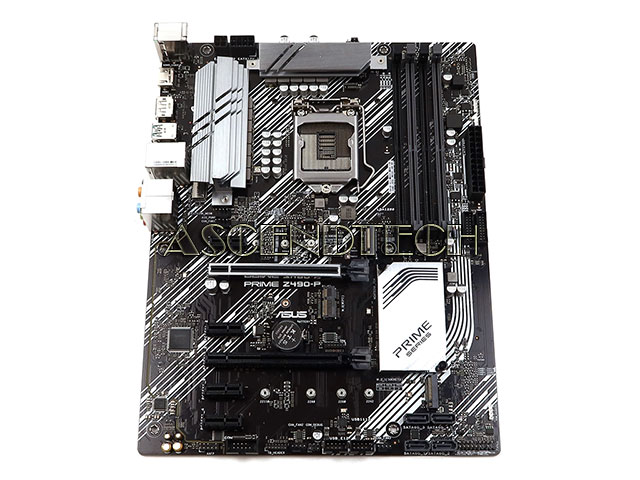

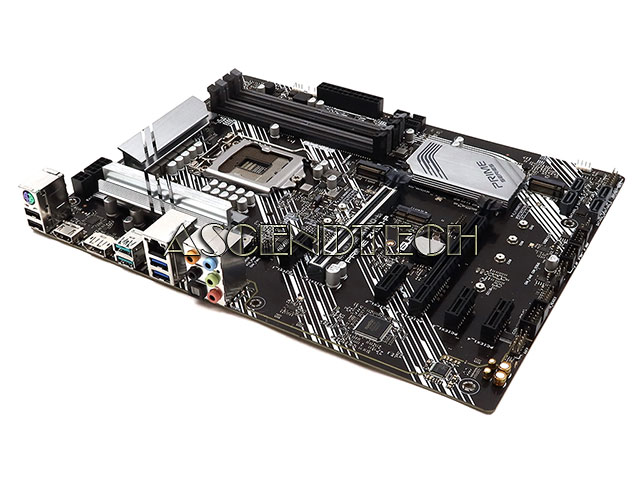

Asus Prime Z490-P Mb Mb12v0-A03 No I/O
Asus Prime Z490-P Mb Mb12v0-A03 No I/O
*Note this image is for descriptional purposes.
Actual product may vary.
Qty:
Item CodeMBDSKPRIMEZ490P
BrandAsus / Asustek Computer
ModelPRIME Z490-P
Part NumberMB12V0-A03
Compatible Part NumbersMB12V0-A06 MB12V0-A04
CategoryIntel Lga1200 Motherboard
ConditionLike New Grade A
Condition DescriptionPlease note, this motherboard does not include an I/O Shield, fan’s mounting backplate, cables, or any other accessories!

Add-ons / Accessories

If you wish to order addon / accessories please checkoff the box next to the addon items and press the add to cart button.

$9.99
Pre-Test My Motherboard Before It Ships

Description

Asus PRIME Z490-P Intel Chipset Z490 Socket LGA1200 DDR4 USB DisplayPort HDMI SATA 6GB/s ATX Desktop Motherboard MB12V0-A03.

Chipset: Intel Z490
Socket: Intel LGA1200
Compatible/Supported CPU: 10th Gen Intel Core and Pentium Gold / Celeron processors
Max Supported Memory: 128GB
Number of Memory Slots: 4
Memory Type: DDR4 SDRAM
Storage Interface: SATA 3 6Gb/s
RAID Support: 0, 1, 5, 10
Network/Communications: Realtek RTL8111H
Audio: Realtek ALC887 8-Channel High Definition Audio CODEC
Connectors: 1x CPU Fan connector(s), 3x Chassis Fan connector(s), 2x Aura RGB Strip Headers, 1x Addressable Gen 2 header(s), 2x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s), 2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 1x SPI TPM header, 1x AIO_PUMP connector, 1x Thunderbolt header(s), 1x 4-pin EATX 12 V Power connector, 1x 24-pin EATX Power connector(s), 1x 8-pin EATX 12V Power connectors, 1x Front panel audio connector(s) (AAFP), 1x Clear CMOS jumper(s), 1x System panel connector, 1x COM port header
Input/Output Ports: 1x PS/2 keyboard/mouse combo port(s), 1x DisplayPort, 1x HDMI, 1x LAN (RJ45) port(s), 2x USB 3.2 Gen 2 Type-A, 2x USB 3.2 Gen 1 Type-A, 2x USB 2.0, 1x Optical S/PDIF out, 5x Audio jack(s)
Expansion Slots: 1x PCIe 3.0 x16 (x16 mode), 1x PCIe 3.0 x16 (x4 mode), 4x PCIe 3.0 x1, 1x M.2 Socket 3, with M key, type 2242/2260/2280/22110, 1x M.2 Socket 3, with M key, type 2242/2260/2280, 4x SATA 6Gb/s port(s), 1x M.2 with E key for Wi-Fi module
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit

Additional Specifications:

Onboard Graphics
Integrated Graphics Processor
1x DisplayPort 1.4
1x HDMI 1.4b
Graphics specifications may vary between CPU types.
Support DisplayPort 1.4 with max. resolution of 4096x2304 @60Hz.

Multi-GPU Support
Supports AMD 2-Way CrossFireX Technology

Asus Special Features
ASUS 5X PROTECTION III
- ASUS DIGI+ VRM (- Digital power design with Dr. MOS)
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot Core+
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
ASUS EZ DIY
- Procool
AURA Sync
- Standard RGB headers
- Addressable Gen 2 RGB header

BIOS
128 Mb Flash ROM, UEFI AMI BIOS

Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Sync
AI Suite 3
- Performance And Power Saving Utility
EPU
Digi+ VRM
Fan Xpert 4
- EZ update
AI Charger
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
