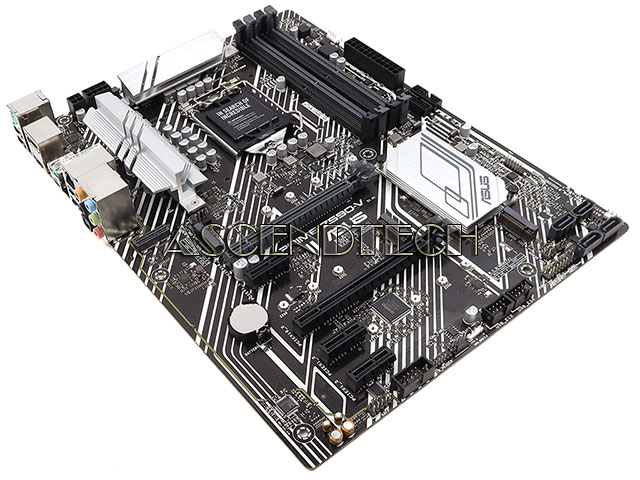

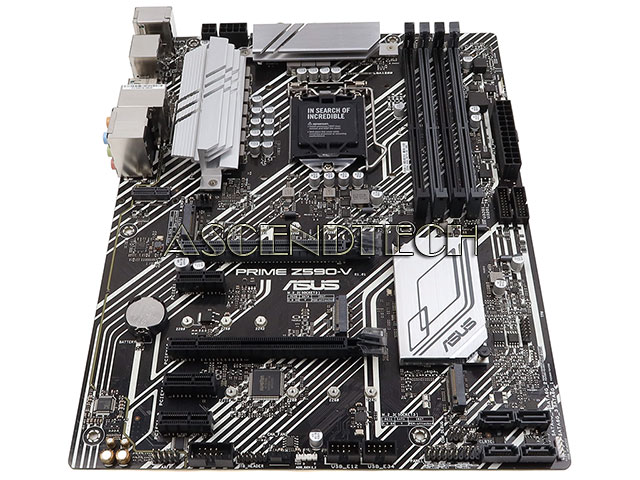

PRIME Z590-V MB18N0-A01 | Asus Prime Z590-V Ddr4 Atx Mboard No I/O

Asus PRIME Z590-V Intel Chipset Z590 Socket LGA1200 DDR4 HDMI DisplayPort SATA 6Gb/s ATX Desktop Motherboard MB18N0-A01.

Chipset: Intel Z590 (SRKM3)

Socket: Intel LGA1200

Compatible/Supported CPU: Intel 11th, 12th Gen Processor

Max Supported Memory: 128GB

Number of Memory Slots: 4

Memory Type: DDR4 SDRAM

Speed: 5133MHz(O.C.)/5000MHz(O.C.)/4800MHz(O.C.)/4700MHz(O.C.)/4600MHz(O.C.)/4500MHz(O.C.)/4400MHz(O.C.)/4266MHz(O.C.)/4133MHz(O.C.)/4000MHz(O.C.)/3866MHz(O.C.)/3733MHz(O.C.)/3600MHz(O.C.)/3466MHz(O.C.)/3400MHz(O.C.)/3333MHz(O.C.)/ 3200MHz/3000MHz/2933MHz/2800MHz/2666MHz/2400MHz/2133MHz

Storage Interface: SATA 6Gb/s

Network/Communications: Intel 1Gb Ethernet

Audio: Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC

Connectors: Fan and Cooling related: 1 x 4-pin CPU Fan header; 1 x 4-pin AIO Pump header; 2 x 4-pin Chassis Fan headers; Power related: 1 x 24-pin Main; 1 x 8-pin +12V; 1 x 4-pin +12V; Storage related" 3 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB: 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports; Miscellaneous: 2 x AURA Addressable Gen 2 headers; 2 x AURA RGB headers; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x SPI TPM header (14-1pin); 1 x 20-5pin System Panel header; 1 x Thunderbo

Input/Output Ports: 1x USB 3.2 Gen 2 (1x USB Type-C); 1x USB 3.2 Gen 2 (1x Type-A); 2x USB 3.2 Gen 1 (2x Type-A); 2x USB 2.0 (2x Type-A); 1x DisplayPort; 1x HDMI; 1x V-M.2 slot (Key E); 1x Intel I219-V 1Gb Ethernet; 5x Audio jacks; 1x Optical S/PDIF out; 1x PS/2 Keyboard/Mouse combo

Expansion Slots: 3x M.2 slots (Key M); 4x SATA 6Gb/s ports; 1x PCIe 3.0 x16; 3x PCIe 3.0 x1 slots; 1x PCIe 4.0/3.0 x16 slot

Form Factor: ATX

Type: Desktop Motherboard

Supported Operating System: Windows 10 64-bit

Additional Specifications:

Graphics
Graphics specifications may vary between CPU types
Intel 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096x2304 @60Hz.
Intel 11th Gen processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max resolution of 4K@30Hz

Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
ASUS EZ DIY
- ProCool
AURA Sync
- AURA RGB headers
- Addressable Gen 2 RGB headers

Software Features
ASUS Exclusive Software
Armoury Crate
- AURA Sync
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert 4
- EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

BIOS
192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
2 x AURA Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x 20-5pin System Panel header
1 x Thunderbolt header

Asus PRIME Z590-V DDR4 ATX Mboard NO I/O
