Asus PRIME Z690-P WIFI D4 Mboard No I/O

  Enlarge

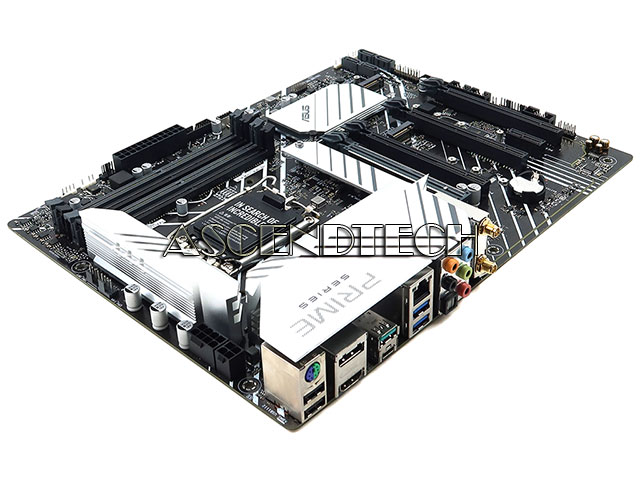

Asus Prime Z690-P Wifi D4 Mboard No I/O
Asus Prime Z690-P Wifi D4 Mboard No I/O
*Note this image is for descriptional purposes.
Actual product may vary.
Qty:
Item CodeMBLTPMB18N0A04A
BrandAsus / Asustek Computer
ModelPRIME Z690-P WIFI D4
Part NumberMB18N0-A04
CategoryIntel Lga1700 Motherboard
ConditionLike New Grade A
Condition DescriptionPlease note, this motherboard does not include I/O Shield, fan bracket, fan backplate, or any other accessories!

Add-ons / Accessories

If you wish to order addon / accessories please checkoff the box next to the addon items and press the add to cart button.

$9.99
Pre-Test My Motherboard Before It Ships

Description

Asus PRIME Z690-P WIFI D4 Intel Chipset Z690 Socket LGA1700 DDR4 HDMI DisplayPort SATA 6Gb/s ATX Desktop Motherboard MB18N0-A04.

Chipset: Intel Z690
Socket: Intel LGA1700
Compatible/Supported CPU: Intel 12th, 13th Gen
Max Supported Memory: 128GB
Number of Memory Slots: 4
Memory Type: DDR4 SDRAM
Speed: 5333MHz(O.C.)/5133MHz(O.C.)/5000MHz(O.C.)/4800MHz(O.C.)/4600MHz(O.C.)/4400MHz(O.C.)/4266MHz(O.C.)/4133MHz(O.C.)/4000MHz(O.C.)/3866MHz(O.C.)/3733MHz(O.C.)/3600MHz(O.C.)/3466MHz(O.C.)/3400MHz(O.C.)/3333MHz(O.C.)/ 3200MHz/3000MHz/2933MHz/2800MHz/2666MHz/2400MHz/2133MHz
Storage Interface: SATA 6Gb/s
Bluetooth Standard: Bluetooth 5.2
Wireless Lan Support: Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Network/Communications: Realtek 2.5Gb Ethernet
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
Connectors: Fan and Cooling related: 1x 4-pin CPU Fan header 1x 4-pin CPU OPT Fan header 1x 4-pin AIO Pump header 3x 4-pin Chassis Fan headers Power related: 1x 24-pin Main 1x 8-pin +12V 1x 4-pin +12V Storage related: 3x M.2 slots (Key M) 4x SATA 6Gb/s ports USB: 1x USB 3.2 Gen 1 connector (supports USB Type-C) 2x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous: 3x Addressable Gen 2 headers 1x AURA RGB header 1x Clear CMOS header 1x COM Port header 1x Front Panel Audio header (AAFP) 1x SPI TPM header (14-1pin) 1x 20-5pin System Panel header 1x Thunderbolt header
Input/Output Ports: 1x USB 3.2 Gen 2x2 (1x USB Type-C); 1x USB 3.2 Gen 2 (1x Type-A); 2x USB 3.2 Gen 1 (2x Type-A); 2x USB 2.0 (2x Type-A); 1x DisplayPort; 1x HDMI; 1x Wi-Fi Module; 1x Realtek 2.5Gb Ethernet; 5x Audio jacks; 1x Optical S/PDIF out; 1x PS/2 Keyboard/Mouse combo
Expansion Slots: 1x PCIe 4.0/3.0 x16; 2x PCIe 3.0 x16; 1x PCIe 3.0 x1; 1 x PCIe 5.0/4.0/3.0 x16; 3x M.2 (Key M)
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit / 11 64-bit

Additional Specifications:

Graphics
1x DisplayPort 1.4
1x HDMI 2.1 (4K@60Hz)

Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
AURA Sync
- AURA RGB header
- Addressable Gen 2 headers

Software Features
Asus Exclusive Software
Armoury Crate
- AURA Sync
- Fan Xpert 4
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
ASUS CPU-Z
MyASUS
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

BIOS
192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Internal I/O Connectors
Fan and cooling related
1x 4-pin CPU Fan header
1x 4-pin CPU OPT Fan header
1x 4-pin AIO Pump header
3x 4-pin Chassis Fan headers
Power related
1x 24-pin Main Power connector
1x 8-pin +12V Power connector
1x 4-pin +12V Power connector
Storage related
3x M.2 slots (Key M)
4x SATA 6Gb/s ports
USB
1x USB 3.2 Gen 1 connector (supports USB Type-C)
2x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3x Addressable Gen 2 headers
1x AURA RGB header
1x Clear CMOS header
1x COM Port header
1x Front Panel Audio header (AAFP)
1x SPI TPM header (14-1pin)
1x 20-5pin System Panel header
1x Thunderbolt header
