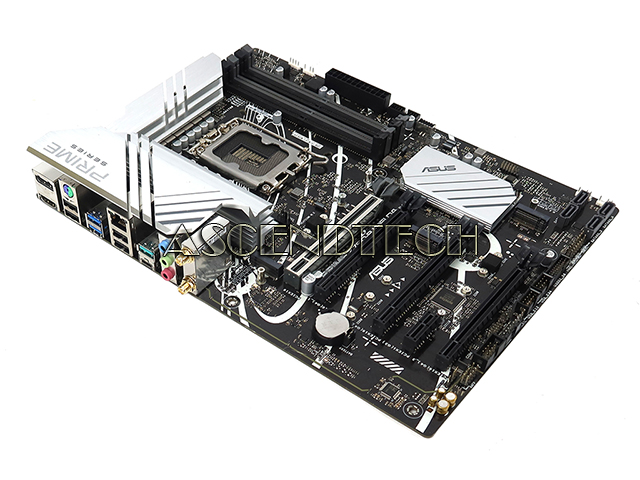

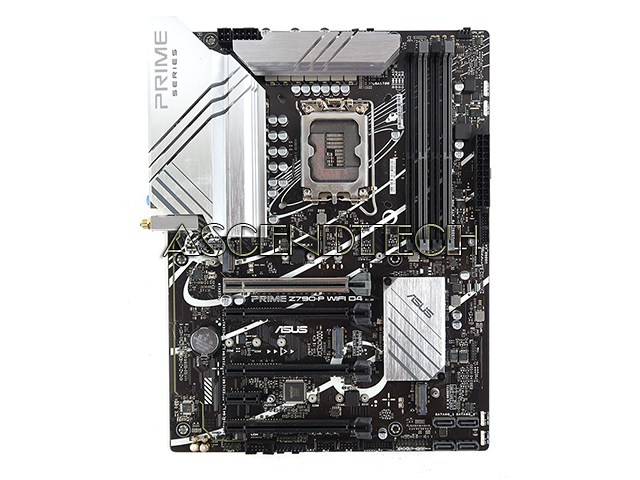

Asus PRIME Z790-P WIFI D4 Mboard No I/O

Asus Prime Z790-P Wifi D4 Mboard No I/O
  Enlarge
Asus Prime Z790-P Wifi D4 Mboard No I/O
Asus Prime Z790-P Wifi D4 Mboard No I/O
*Note this image is for descriptional purposes.
Actual product may vary.
Qty:
Item Code MBDSKPRIMEZ7D4A
Brand Asus / Asustek Computer
Model PRIME Z790-P WIFI D4
Category Intel Lga1700 Motherboard
Condition Like New Grade A
Condition Description Please note, this motherboard does not include an I/O Shield, fan’s mounting backplate, fan’s bracket, M.2 heatsink, cables or any other accessories!

Add-ons / Accessories

If you wish to order addon / accessories please checkoff the box next to the addon items and press the add to cart button.

$9.99
Pre-Test My Motherboard Before It Ships
Pre-Test My Motherboard Before It Ships

Description

Asus PRIME Z790-P WIFI D4 Intel Chipset Z790 Socket LGA1700 DDR4 USB SATA 6Gb/s DisplayPort HDMI ATX Desktop Motherboard.

Chipset: Intel Z790
Socket: Intel LGA1700
Compatible/Supported CPU: Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors
Max Supported Memory: 128GB
Number of Memory Slots: 4
Memory Type: DDR4 SDRAM
Speed: 5333(OC) / 5133(OC) / 5066(OC) / 5000(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) /4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133MHz Non-ECC, Un-buffered Memory
Storage Interface: SATA 6Gb/s, NVMe
RAID Support: 0, 1, 5, 10
Bluetooth Standard: Bluetooth 5.2
Wireless Lan Support: Wi-Fi 6 (802.11 a/b/g/n/ac/ax), supports 2.4/5GHz frequency band
Network/Communications: 1x Realtek 2.5Gb Ethernet
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
Connectors: 1x 4-pin CPU Fan header, 1x 4-pin CPU OPT Fan header, 1x 4-pin AIO Pump header, 3x 4-pin Chassis Fan headers, 1x 24-pin Main Power connector, 1x 8-pin +12V Power connector, 1x 4-pin +12V Power connector, 3x M.2 slots (Key M) 4x SATA 6Gb/s ports, 1x USB 3.2 Gen 2 connector (supports USB Type-C), 2x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports, 2x USB 2.0 headers support 4 additional USB 2.0 ports, 3x Addressable Gen 2 headers, 1x Aura RGB header 1x Clear CMOS header, 1x COM Port header, 1x Front Panel Audio header (AAFP), 1x S/PDIF Out header, 1x SPI TPM header (14-1pin), 1x 20-5pin System Panel header, 1x Thunderbolt (USB4) Header
Input/Output Ports: 1x USB 3.2 Gen 2x2 port (1x USB Type-C), 1x USB 3.2 Gen 2 port (1x Type-A), 2x USB 3.2 Gen 1 ports (2x Type-A), 4x USB 2.0 ports (4x Type-A), 1x DisplayPort, 1x HDMI port, 1x Wi-Fi Module, 1x Realtek 2.5Gb Ethernet port 3x Audio jacks, 1x PS/2 Keyboard/Mouse combo port
Expansion Slots: 1x PCIe 5.0 x16 slot, 3x PCIe 4.0 x16 slots (support x4 mode), 1x PCIe 3.0 x1 slot
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Windows 11, Windows 10 64-bit Features:

Additional Specifications:

Onboard Graphics
1x DisplayPort
1x HDMI port
Graphics specifications may vary between CPU types.
Supports max. 4K@60Hz as specified in DisplayPort 1.4.
Supports 4K@60Hz as specified in HDMI 2.1.

Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
AI Suite 3
-TurboV EVO
-PC Cleaner
-DIGI+ VRM
ASUS CPU-Z
MyASUS
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

BIOS
192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Unique Features
ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
- Q-LED Core
ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers

CPU Support:

Socket LGA1700
VendorCPU ModelCPU FrequencyL3 CacheBIOSSteppingWattage
IntelI9-14900T1.1 GHz33MB2603B-035W
IntelI9-14900KF3.2 GHz36MB2603B-0125W
IntelI9-14900K3.2 GHz36MB2603B-0125W
IntelI9-14900F2.0 GHz36MB2603B-065W
IntelI9-149002.0 GHz36MB2603B-065W
IntelI7-14790F2.1 GHz36MB2603B-065W
IntelI7-14700T1.3 GHz33MB2603B-035W
IntelI7-14700KF3.4 GHz33MB2603B-0125W
IntelI7-14700K3.4 GHz33MB2603B-0125W
IntelI7-14700F2.1 GHz33MB2603B-065W
IntelI7-147002.1 GHz33MB2603B-065W
IntelI5-14600T1.8 GHz24MB2603B-035W
IntelI5-14600KF3.5 GHz24MB2603B-0125W
IntelI5-14600K3.5 GHz24MB2603B-0125W
IntelI5-146002.7 GHz24MB2603B-065W
IntelI5-14500T1.7 GHz24MB2603C-035W
IntelI5-145002.6 GHz24MB2603C-065W
IntelI5-14490F2.8 GHz24MB2603C-065W
IntelI5-14400T1.5 GHz20MB2603C-035W
IntelI5-14400F2.5 GHz20MB2603B-065W
IntelI5-14400F2.5 GHz20MB2603C-065W
IntelI5-144002.5 GHz20MB2603B-065W
IntelI5-144002.5 GHz20MB2603C-065W
IntelI3-14100T2.7 GHz12MB2603H-035W
IntelI3-14100F3.5 GHz12MB2603H-058W
IntelI3-141003.5 GHz12MB2603H-060W
Intel300T3.4 GHz6MB2603H-046W
Intel3003.9 GHz6MB2603H-035W
Inteli9-13900T1.1GHz36MB1620B-035W
Inteli9-13900KF3.0GHz36MB1620B-0125W
Inteli9-13900K3.0GHz36MB1620B-0125W
Inteli9-13900F2.0GHz36MB1620B-065W
Inteli9-139002.0GHz36MB1620B-065W
Inteli7-13700T1.4GHz30MB1620B-035W
Inteli7-13700KF3.4GHz30MB1620B-0125W
Inteli7-13700K3.4GHz30MB1620B-0125W
IntelI7-13790F2.1GHz33MB1620B-065W
Inteli7-13700F2.1GHz30MB1620B-065W
Inteli7-137002.1GHz30MB1620B-065W
IntelI5-13600T1.8 GHz24MB1620C-035W
Inteli5-13600KF3.5GHz24MB1620B-0125W
Inteli5-13600K3.5GHz24MB1620B-0125W
Inteli5-136002.7 GHz24MB1620C-065W
Inteli5-13500T1.6 GHz24MB1620C-035W
Inteli5-135002.5 GHz24MB1620C-065W
Inteli5-13400T1.3 GHz20MB1620C-035W
IntelI5-13490F2.5 GHz24MB1620C-065W
IntelI5-13400F2.5 GHz20MB1620C-065W
IntelI5-134002.5 GHz20MB1620C-065W
IntelI3-13100F3.4 GHz12MB1620H-058W
IntelI3-131003.4 GHz12MB1620H-060W
IntelI3-13100T2.5 GHz12MB1620H-035W
Intel120F2.5 GHz18MBallH-065W
Intel120F2.5 GHz18MBallH-065W
Intel1202.5 GHz18MBallH-065W
Intel1202.5 GHz18MBallH-065W
Inteli5-12600T2.1GHz18MBallH-035W
Inteli5-126003.3GHz18MBallH-065W
Inteli5-12500T2.0GHz18MBallH-035W
Inteli5-125003.0GHz18MBallH-065W
Inteli5-12400T1.8GHz18MBallH-035W
Inteli5-12400F2.5GHz18MBallH-065W
IntelI5-12490F3.0GHz20MBALLC-065W
Inteli5-124002.5GHz18MBallH-065W
Inteli3-12100T2.2GHz12MBallH-035W
Inteli3-12100F3.3GHz12MBallH-058W
Inteli3-121003.3GHz12MBallH-060W
Inteli3-12300T2.3GHz12MBallH-035W
Inteli3-123003.5GHz12MBallH-060W
IntelG7400T3.1GHz6MBallH-035W
IntelG74003.7GHz6MBallH-046W
IntelG6900T2.8GHz4MBallH-035W
IntelG69003.4GHz4MBallH-046W
Inteli9-12900T1.4GHz30MBallC-035W
Inteli9-12900KF3.2GHz30MBallC-0125W
Inteli9-12900K3.2GHz30MBallC-0125W
Inteli9-12900F2.4GHz30MBallC-065W
Inteli9-129002.4GHz30MBallC-065W
Inteli7-12700T1.4GHz25MBallC-035W
Inteli7-12700KF3.6GHz25MBallC-0125W
Inteli7-12700K3.6GHz25MBallC-0125W
Inteli7-12700F2.1GHz25MBallC-065W
Inteli7-127002.1GHz25MBallC-065W
Inteli5-12600KF3.7GHz20MBallC-0125W
Inteli5-12600K3.7GHz20MBallC-0125W
